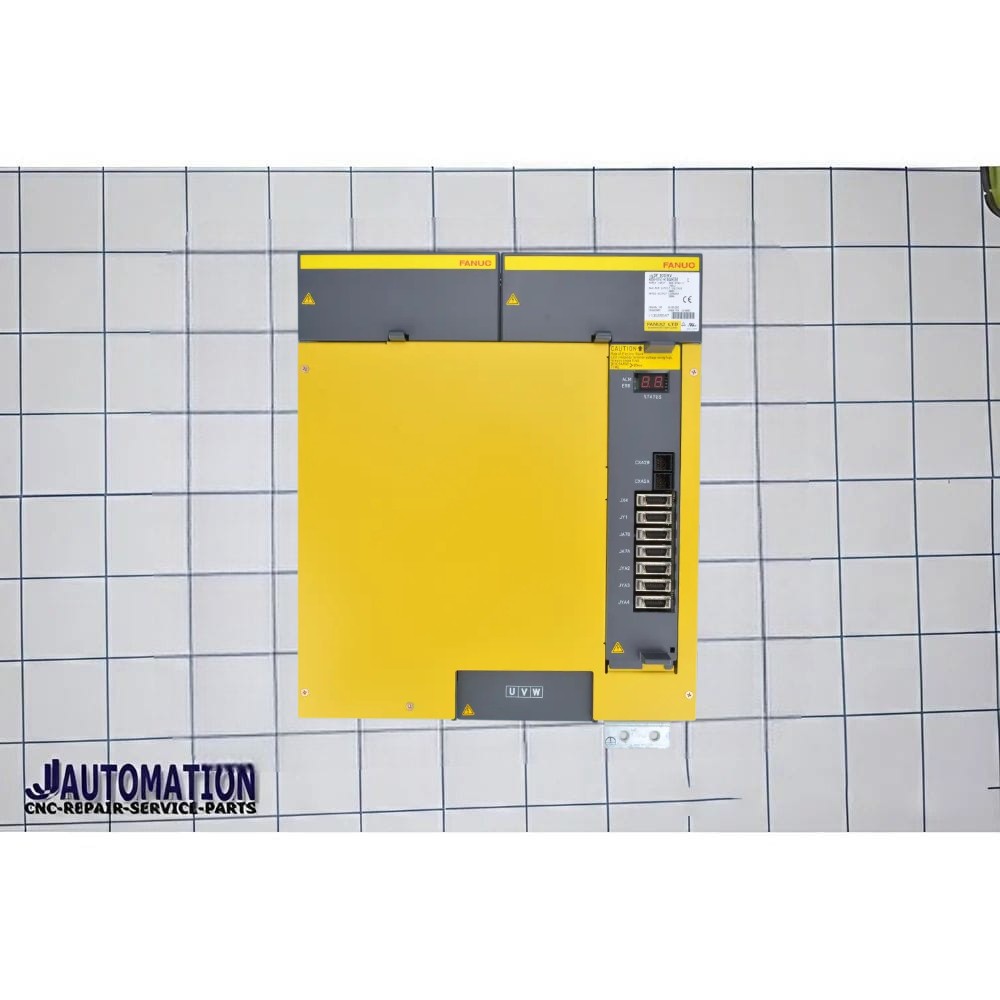

FANUC A06B-6152-H075 – Spindle Amplifier Module (SPM-75HVi II) – Description
The FANUC A06B-6152-H075 is a high-power ALPHA i Spindle Amplifier Module (SPM-75HVi II) used in FANUC CNC machining systems. It is designed to control large-capacity spindle motors with high precision, delivering stable speed regulation, strong torque output, and reliable performance in heavy-duty industrial applications.
This module belongs to the second-generation ALPHA i spindle amplifier series (Type II / B-series) and is widely used in CNC milling, turning, and large machining centers. It operates on 400V AC industrial power systems and is built for continuous, high-load production environments where stability and accuracy are critical.
The H075 variant is typically used for very high-power spindle applications (around 75 kW class) and is commonly found in large machine tools requiring heavy cutting capability and consistent spindle performance under demanding conditions.
Internally, it integrates advanced power electronics and control circuitry, along with dedicated interface/control PCB sections, ensuring reliable communication between the CNC controller and spindle drive system for smooth operation and protection during load variations.
Key Features
- Original FANUC ALPHA i Spindle Amplifier Module
- Model: SPM-75HVi II (Type II / B-series)
- 400V AC high-power spindle drive system
- Precise spindle speed and torque control
- Designed for continuous heavy-duty machining
- Robust thermal management and protection system
- Built for large-capacity industrial machine tools
Applications
- Heavy-duty CNC machining centers
- Large milling, turning, and boring machines
- Industrial manufacturing and production lines
- FANUC CNC systems (0i / 16i / 18i / 21i / 30i series)
Benefits
- Handles extremely high spindle loads with stability
- Improves machining accuracy in heavy cutting operations
- Reduces downtime with reliable industrial design
- Long service life under continuous production use
Product Type
-
- CNC Spindle Amplifier Module (Ultra High Power)
