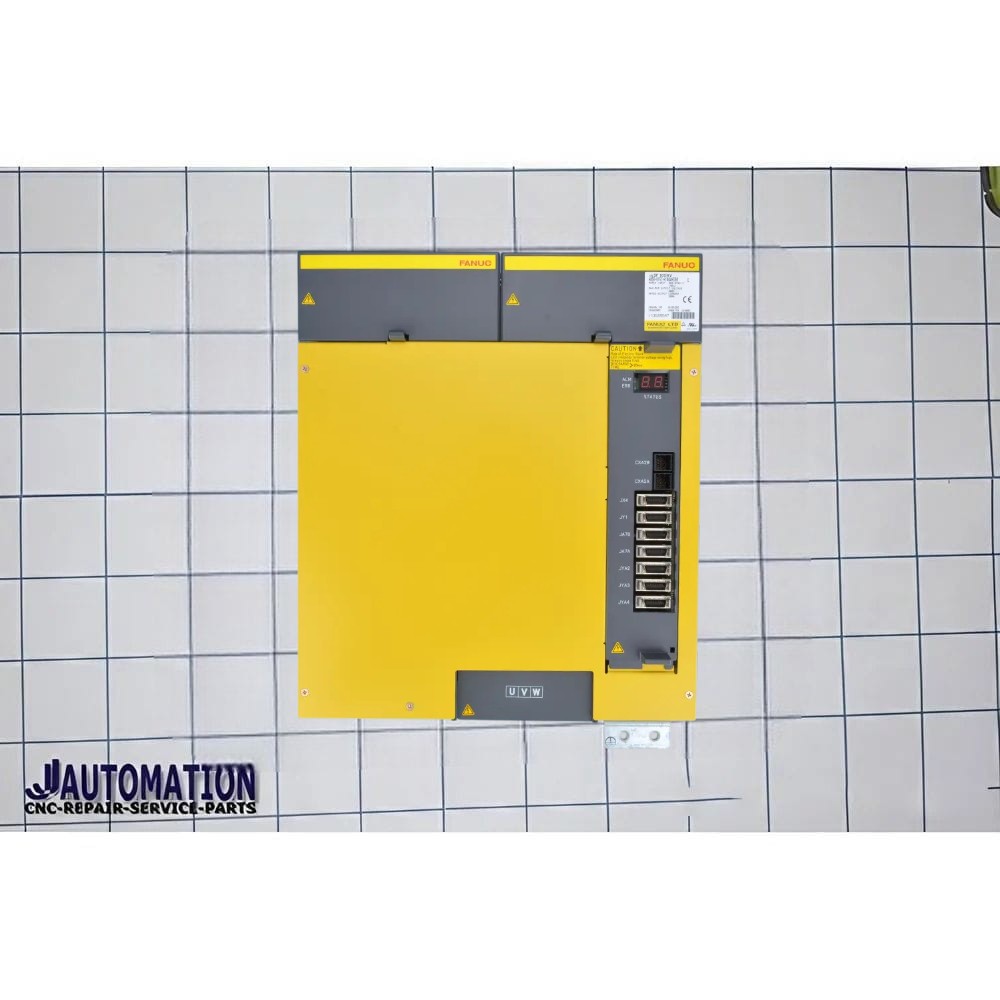

FANUC A06B-6152-H100 – Spindle Amplifier Module (SPM-100HVi II) – Description
The FANUC A06B-6152-H100 is a high-capacity ALPHA i Spindle Amplifier Module (SPM-100HVi II) used in FANUC CNC machining systems. It is designed for controlling ultra high-power spindle motors with precise speed regulation, strong torque output, and stable performance in heavy industrial applications.
This module belongs to the second-generation ALPHA i spindle amplifier series (Type II / B-series) and is widely used in large CNC milling, turning, and machining centers. It operates on 400V AC industrial power systems and is engineered for continuous, high-load production environments where maximum stability, accuracy, and durability are required.
The H100 variant represents an ultra high-power spindle drive (around 100 kW class) and is used in large machine tools and heavy-duty machining applications requiring extreme cutting capability and consistent spindle performance under demanding conditions.
Inside the module, it integrates advanced power electronics and control circuitry along with an internal 400VAC wiring/control PCB (commonly A20B-1008-009x series), ensuring reliable communication between the CNC controller and spindle drive system.
Key Features
- Original FANUC ALPHA i Spindle Amplifier Module
- Model: SPM-100HVi II (Type II / B-series)
- Ultra high-power spindle drive (industrial 400V class)
- Precise spindle speed and torque control
- Designed for continuous heavy-duty machining
- Integrated power and control electronics architecture
- Built-in internal wiring PCB for system communication
Applications
- Heavy-duty CNC machining centers
- Large milling, turning, and boring machines
- Industrial manufacturing and production lines
- FANUC CNC systems (0i / 16i / 18i / 21i / 30i series)
Benefits
- Handles extreme spindle loads with stability
- Improves machining accuracy in large-scale operations
- Reduces downtime with reliable industrial design
- Built for long-term continuous production use
Product Type
-
-
- CNC Spindle Amplifier Module (Ultra High Power)
