Description
📌 ** — Part Description**

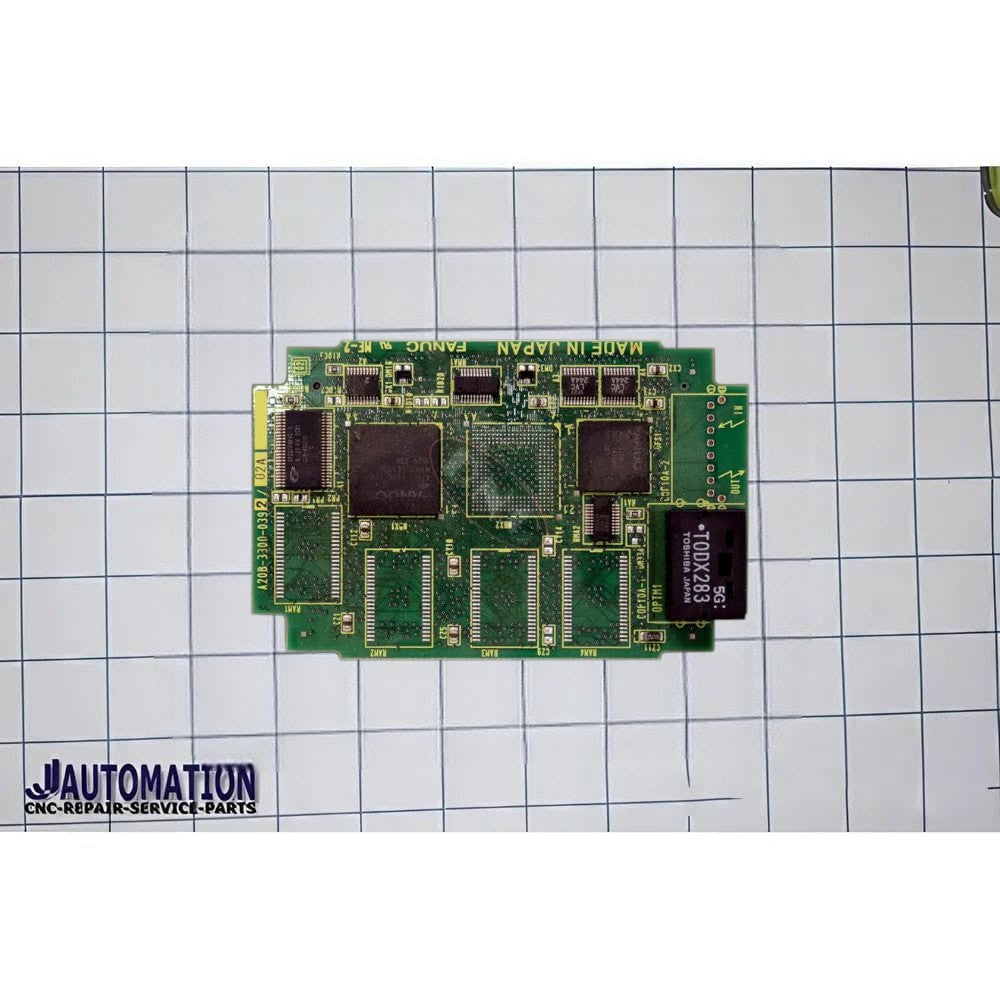

FANUC A20B-3300-0392 is a servo controller module (axis control board) used in FANUC CNC control systems. It’s part of the A20B-3300 series of control boards that manage motion and servo tasks within a CNC controller — especially on i-Series controls such as 16i-B, 18i-B, and 21i-B.
🧠 What It Is
-
Part Number: A20B-3300-0392
-
Category: Servo Control PCB (Axis/Servo Module)
-
Function: 4-axis servo control board — this board handles motion control for up to four servo axes via FANUC’s FSSB (Field Servo Serial Bus) interface.
-
Series: FANUC A20B-3300 series PCB modules used in CNC systems.
📊 Function & Typical Use
This board plays a key role in the motion control subsystem of FANUC CNC controls:
-
It interprets motion commands from the main CPU and generates servo position and velocity control instructions.
-
Interfaces with servo drives and encoders through the FSSB interface to coordinate movement across multiple machine axes.
-
Designed to be plugged onto the controller’s rack or backplane, alongside other boards (e.g., CPU board, display board, I/O boards).
-
Common in FANUC 16i-B / 18i-B / 21i-B CNC control cabinets as a 4-axis motion control card.
🛠️ Key Features
-
Axis Support: Up to 4 axes of motion control.
-
FSSB Communication: Uses Field Servo Serial Bus — FANUC’s digital servo communication protocol.
-
Industrial-grade PCB: Built for durable performance in CNC environments.
-
Often available refurbished or new via industrial parts suppliers.
