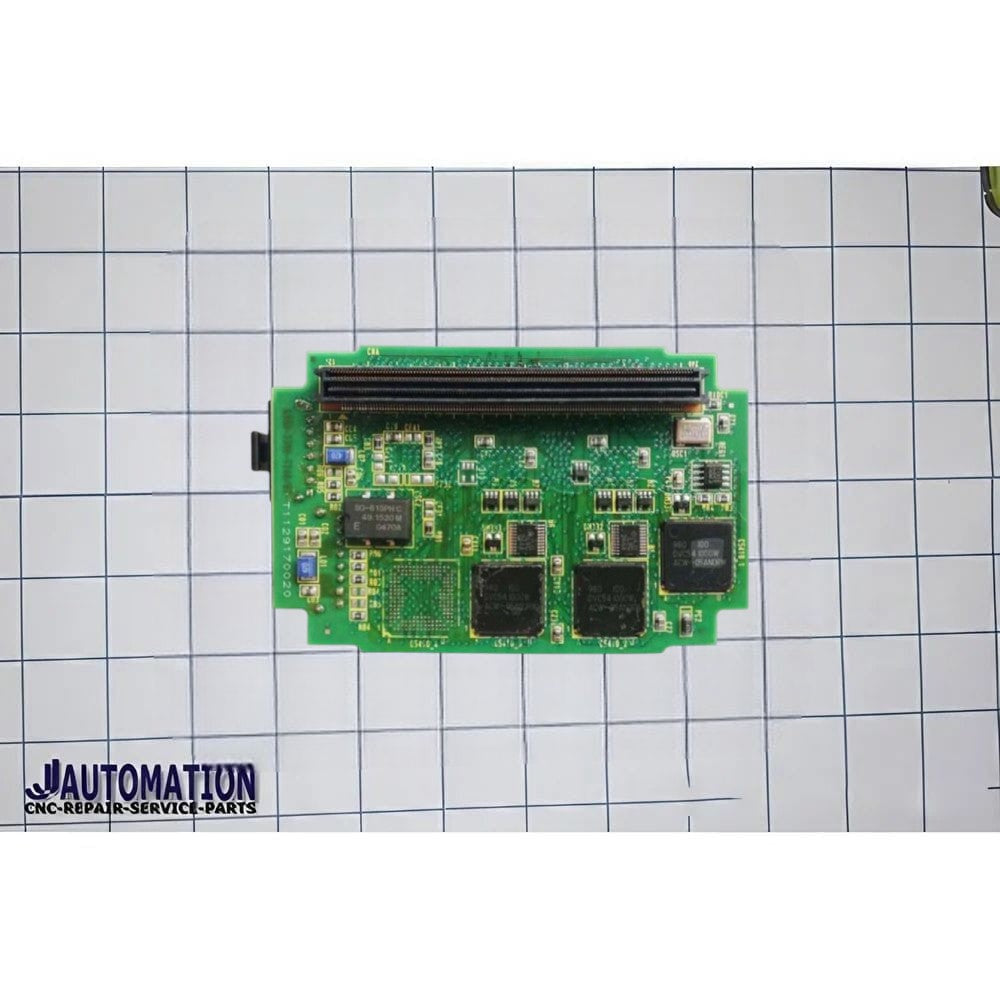

📌 FANUC A20B‑3300‑0245 — 6‑Axis Servo/Axis Control Module (PCB)
Part: A20B‑3300‑0245
Type: Servo/Axis control board (printed circuit board)
Series: FANUC A20B‑3300 family — motion control hardware used in FANUC CNC controller systems.
🧠 Description
The A20B‑3300‑0245 is a high‑speed 6‑axis servo/axis control module used in FANUC “i‑B” series CNC controllers. It works together with the controller’s CPU and other control boards to coordinate motion and positional control of up to six axes on machine tools or automated motion systems.
This type of board is responsible for:
-
📊 Servo motion control: Interpreting commands from the main controller and precisely moving servomotors based on CNC programs.
-
🔁 Multi‑axis coordination: Managing synchronization and feedback from multiple axes (up to six).
-
⚙️ Smooth operation: Ensuring accurate, high‑speed movement with minimal vibration and efficient performance.
In controller hardware architectures, axis control boards like this are essential for machine motion — without them the machine cannot drive the servo motors or coordinate multiple axes correctly.
🔧 Notes
-
This board is often replaced by or superseded by A20B‑3300‑0395 in newer or reconfigured systems.
-
It’s typically found in FANUC controllers where fast, precise motion control over several machine axes is required — such as milling machines, machining centers, or other multi‑axis CNC equipment.
-
When servicing or replacing this board, machine parameter backups and proper installation are crucial to avoid losing motion configuration settings.
