Description

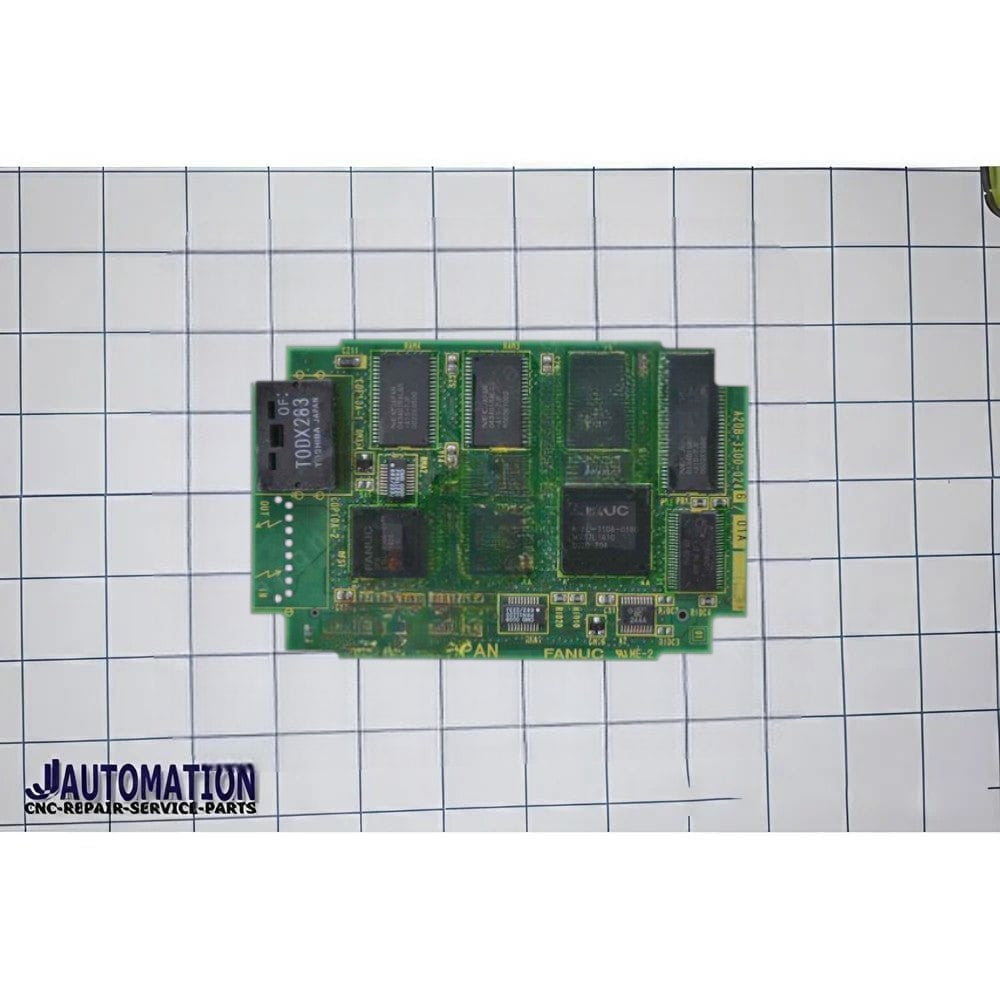

The A20B‑3300‑0246 is a servo/axis control PCB (printed circuit board) used in industrial FANUC CNC controller systems. It belongs to the A20B‑3300 series of control boards that handle motion control for programmable machine tools such as milling machines, lathes, and machining centers.
📌 What It Is
-
Part Number: A20B‑3300‑0246
-
Category: Axis/Servo Control Module — a dedicated motion control circuit board.
-
Function: Coordinates and executes servo motor control tasks for one or more machine axes, translating movement instructions from the controller CPU into precise motor control signals.
-
Series: Part of the FANUC A20B‑3300 series, commonly used in FANUC i‑Series “B” CNC controller families (e.g., 16i‑B, 18i‑B, 21i‑B).
🧠 Typical Role in CNC Systems
-
📊 Motion Control: Interfaces with the main CPU and other modules in the controller rack to manage servo axis dynamics (position, speed, torque) with high precision.
-
🔌 Integration: Installed on a controller backplane alongside CPU boards, I/O modules, display interfaces, and power supplies.
-
🛠 Usage: Ideal for machines requiring coordinated multi‑axis motion, such as complex machining centers and high‑speed milling machines.
⚙️ Notes & Practical Points
-
📦 These modules are typically available as new, refurbished, or repaired units through industrial parts suppliers.
-
⚠️ When this board is replaced or serviced, machine configuration and parameter backups should be restored afterward to maintain correct axis motion settings.
