Description

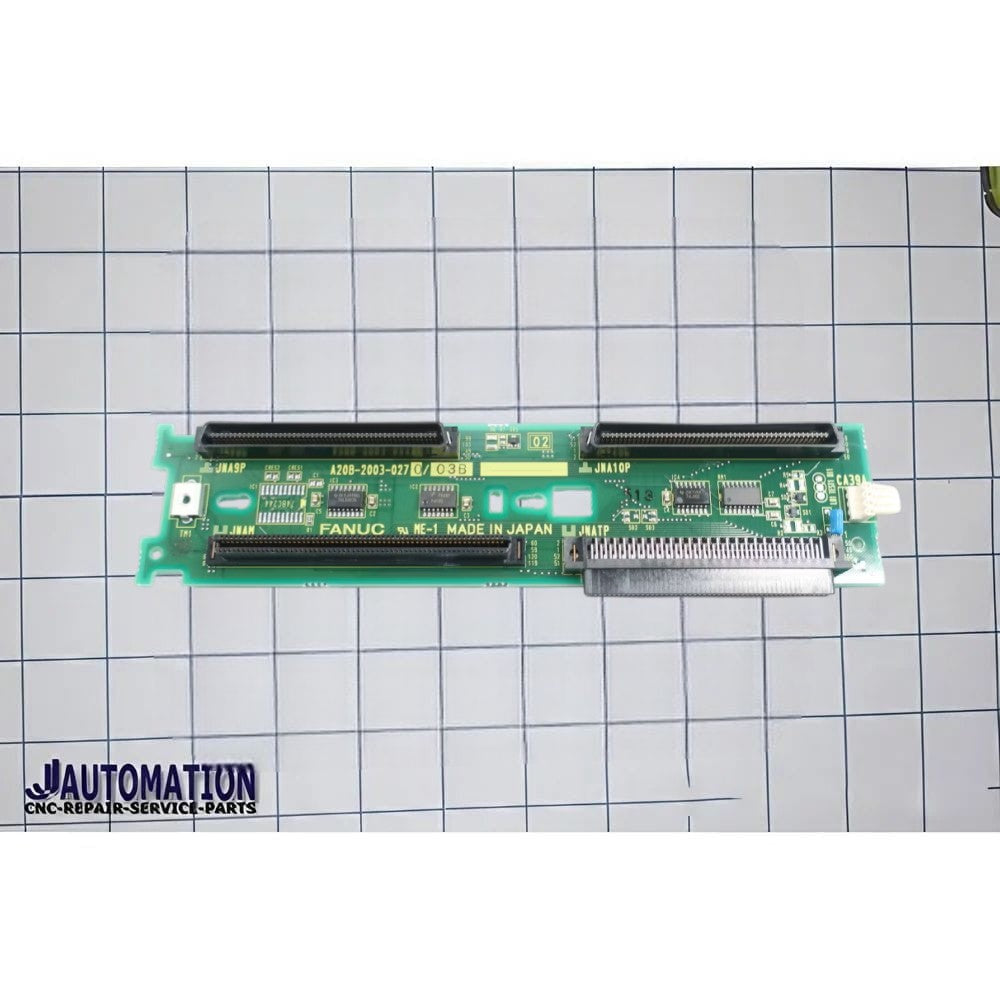

The A20B‑2003‑0270 is a backplane printed circuit board (PCB) used in industrial Fanuc CNC controller systems. It’s part of the A20B‑2003 series of PCBs and serves as the back panel/backplane board that provides a slot and connection infrastructure for other control PCBs inside the controller cabinet.
📌 Overview
-
Part Number: A20B‑2003‑0270
-
Type: Backplane / Back Panel PCB (1‑slot)
-
Controller Families: Commonly used in FANUC Series 16i‑B, 18i‑B, and 21i‑B controller racks — especially in 1‑slot controller architectures.
-
Function:
-
Acts as the physical and electrical connection panel that other control boards plug into.
-
Provides the structural interface for power, signals, and data between key controller boards (like CPU, memory, I/O, etc.).
-
Enables multiple PCBs to communicate via connectors mounted on the backplane board.
-
🛠️ Key Details
-
Series: A20B‑2003 backplane family — typically horizontal slot type.
-
Slots: 1‑slot backplane — supports one plug‑in card position.
-
Application: Often used as the central backbone in smaller or single‑board FANUC CNC systems, where only one PCB (or a few PCBs) needs to be connected.
-
Interconnect: Provides the physical connector and routing for data/power to and from the controller’s boards.
