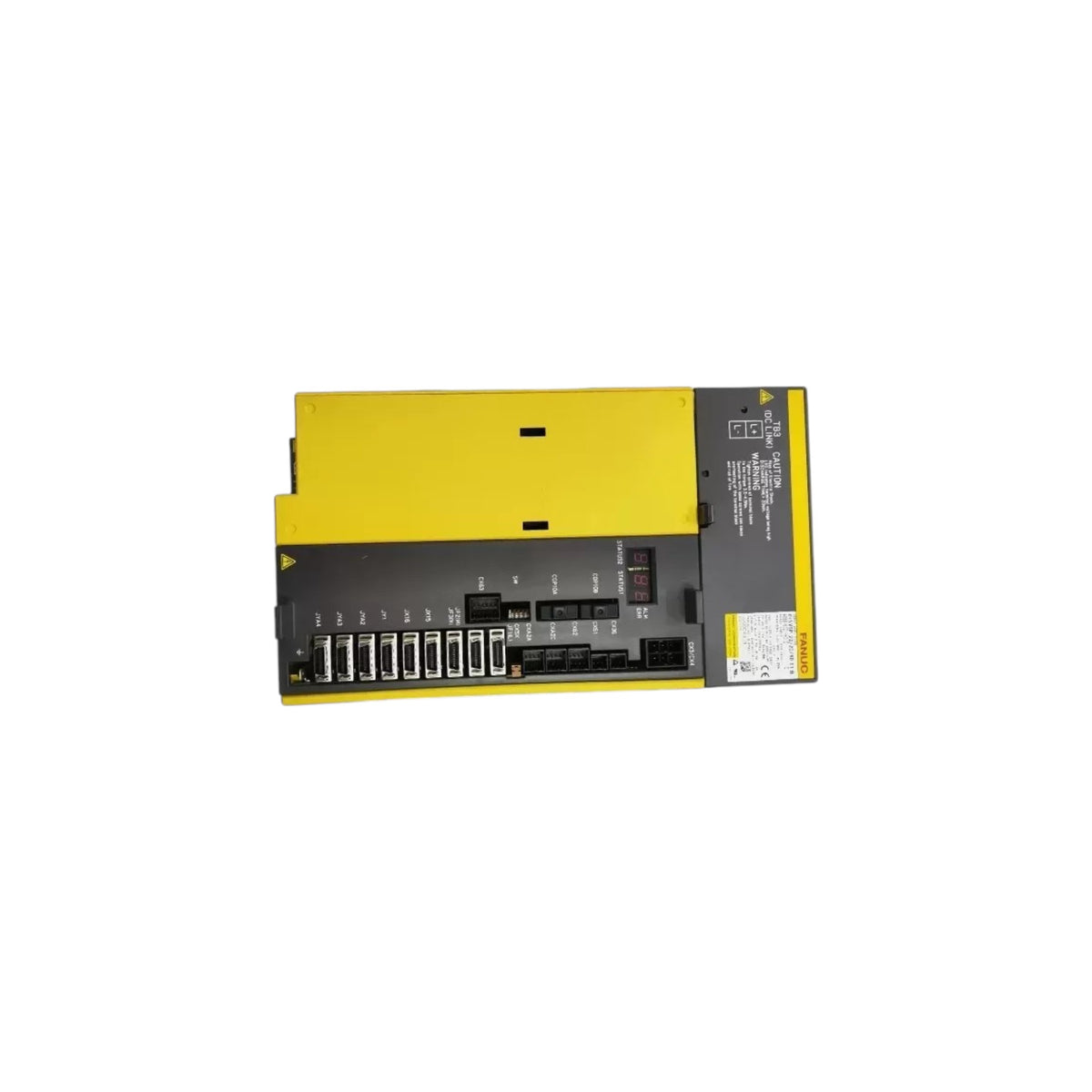

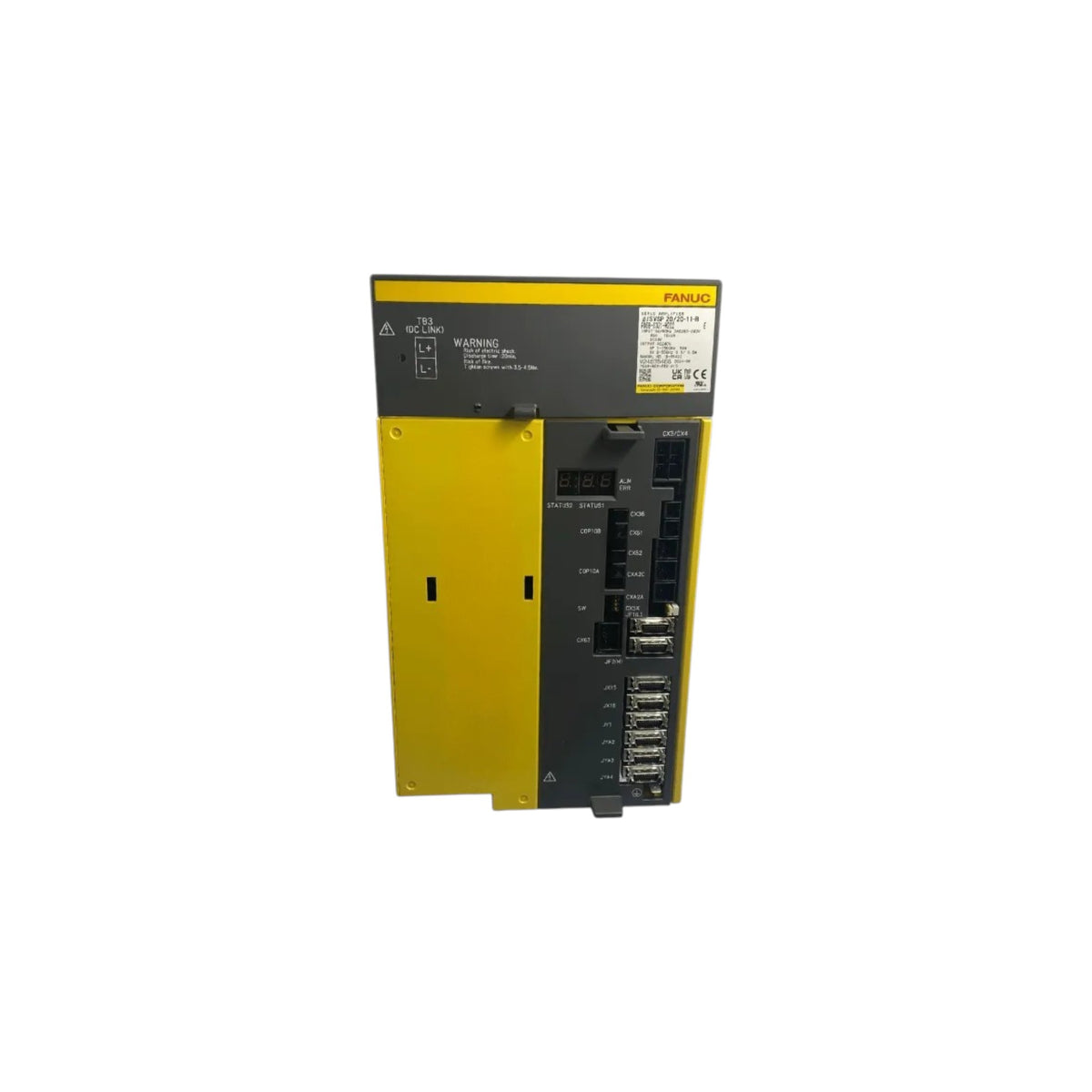

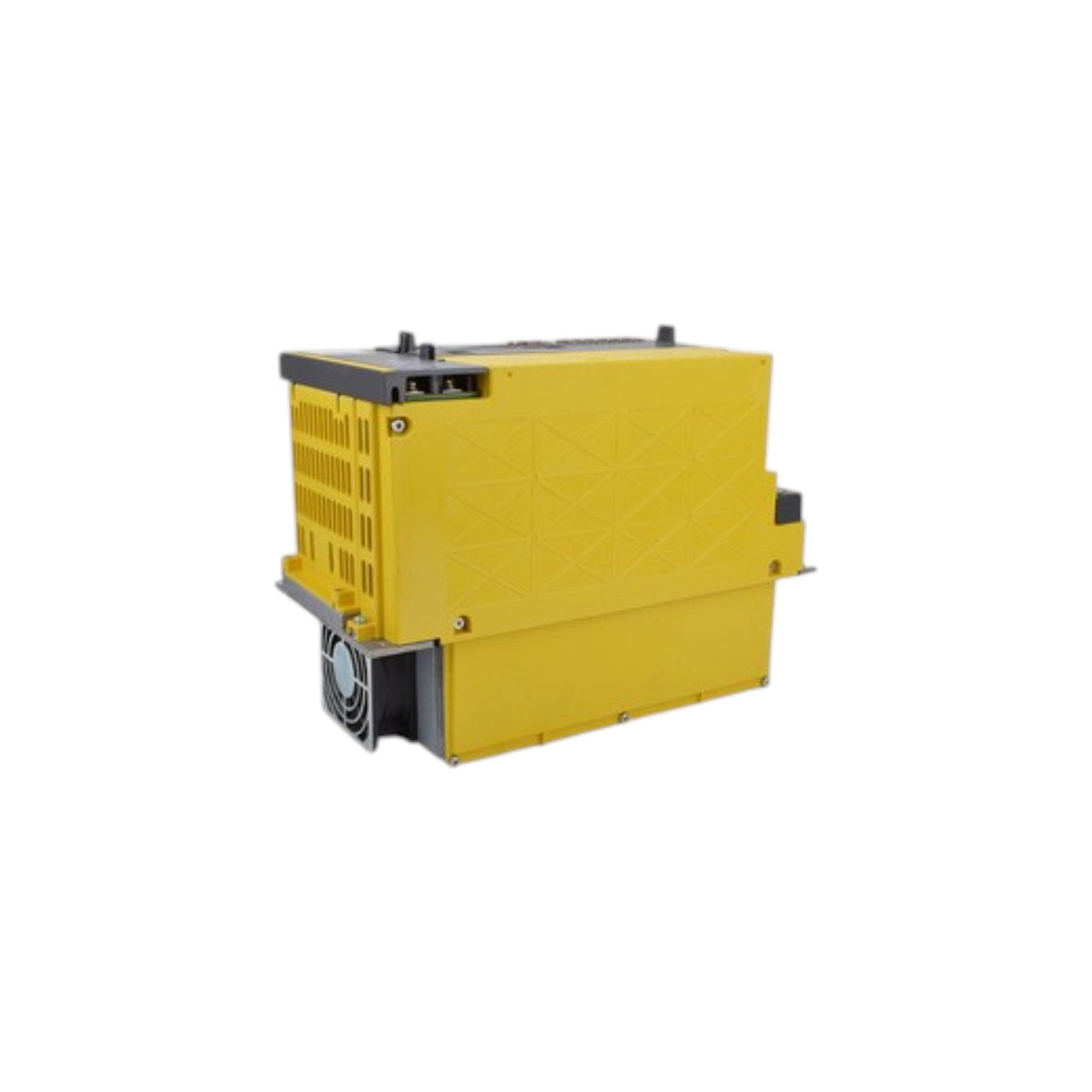

Fanuc Combi Drive βiSVSP 20/20-7.5-B A06B-6321-H201

The Fanuc βiSVSP 20/20-7.5-B Combi drive (A06B-6321-H201) is the 180 mm-wide version of the βi-B series servo-spindle amplifier, integrating a regenerative common power supply, one spindle amplifier and two servo axes in a single unit for Fanuc CNC machines. Available new and tested used/refurbished with warranty.

• Model: βiSVSP20/20-7.5-B — Ordering number: A06B-6321-H201 (180 mm width; 260 mm-width version: A06B-6320-H201)
• Applicable CNC: Series 30i/31i/32i/35i-B, Series 0i-F

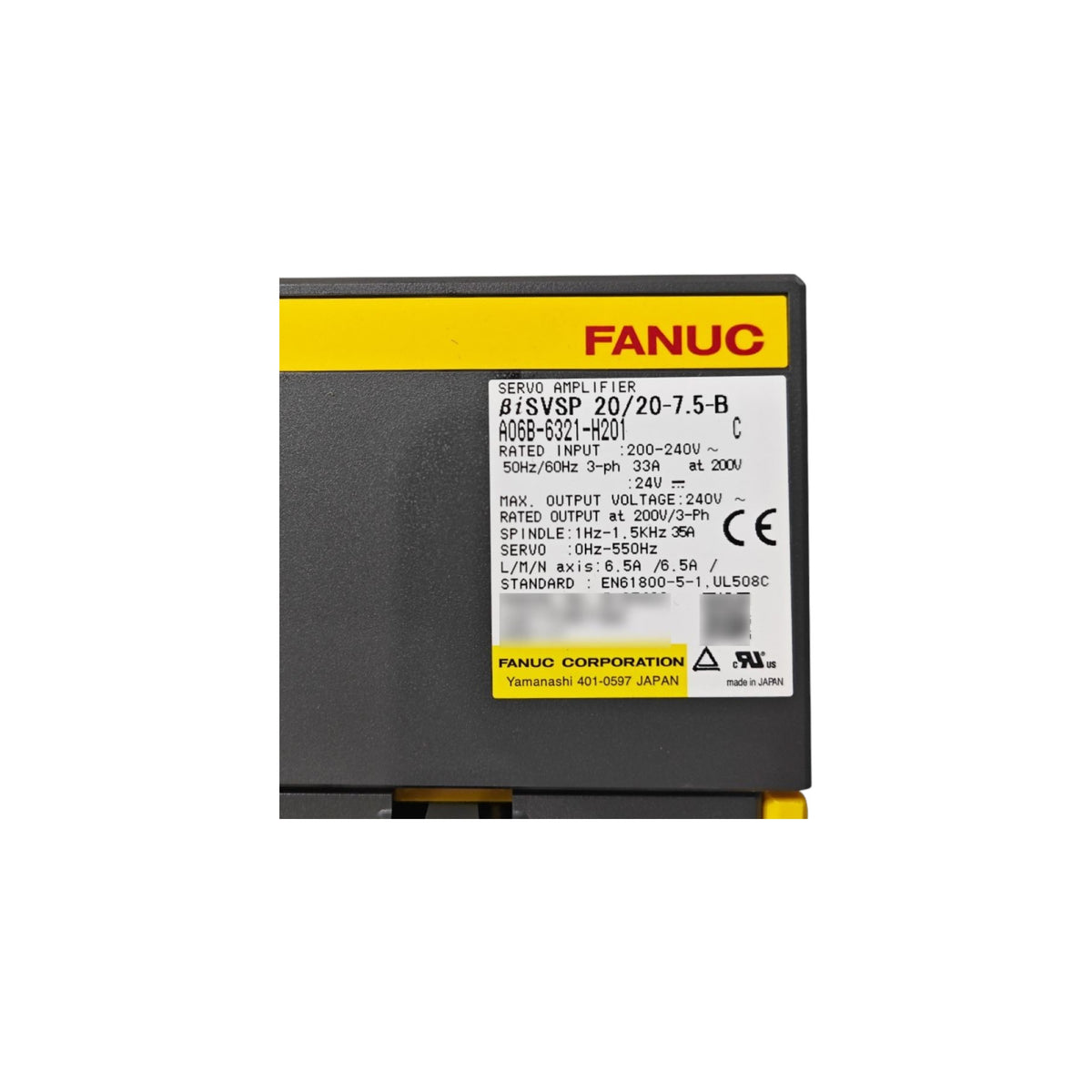

• Main input: 200–240 VAC 3-phase, 33 Arms / 12 kVA; regenerative common power supply
• Power supply section: 7.5 kW continuous / 11 kW 30-min / 27 kW short-time maximum
• Spindle output current: 35 Arms (spindle HRV1) / 32 Arms (HRV2); spindle output 1 Hz–1.5 kHz; speed variation ≤0.1%
• Servo axes L/M: rated 6.5 Arms, maximum 20 Ap each; servo HRV2/HRV3; servo output 0–550 Hz
• Control power: 24 VDC, 2.7 A max; sine-wave PWM control with IGBT; ambient 0–55 °C
• Dimensions: 380 × 180 × 264.5 mm (max); mass 8.8 kg
• AC reactor option: A81L-0001-0184
• Condition options: New / Used / Refurbished — tested before dispatch
