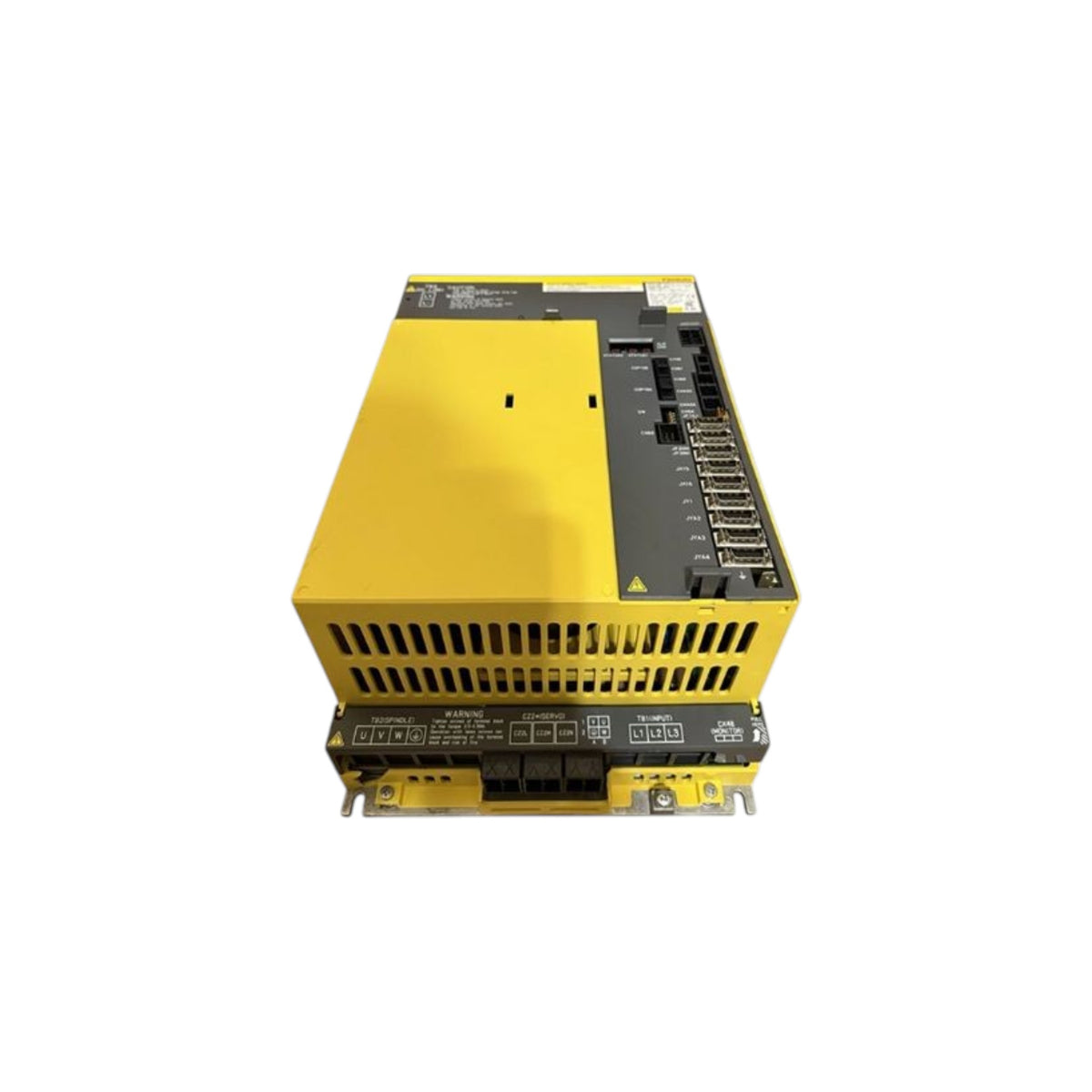

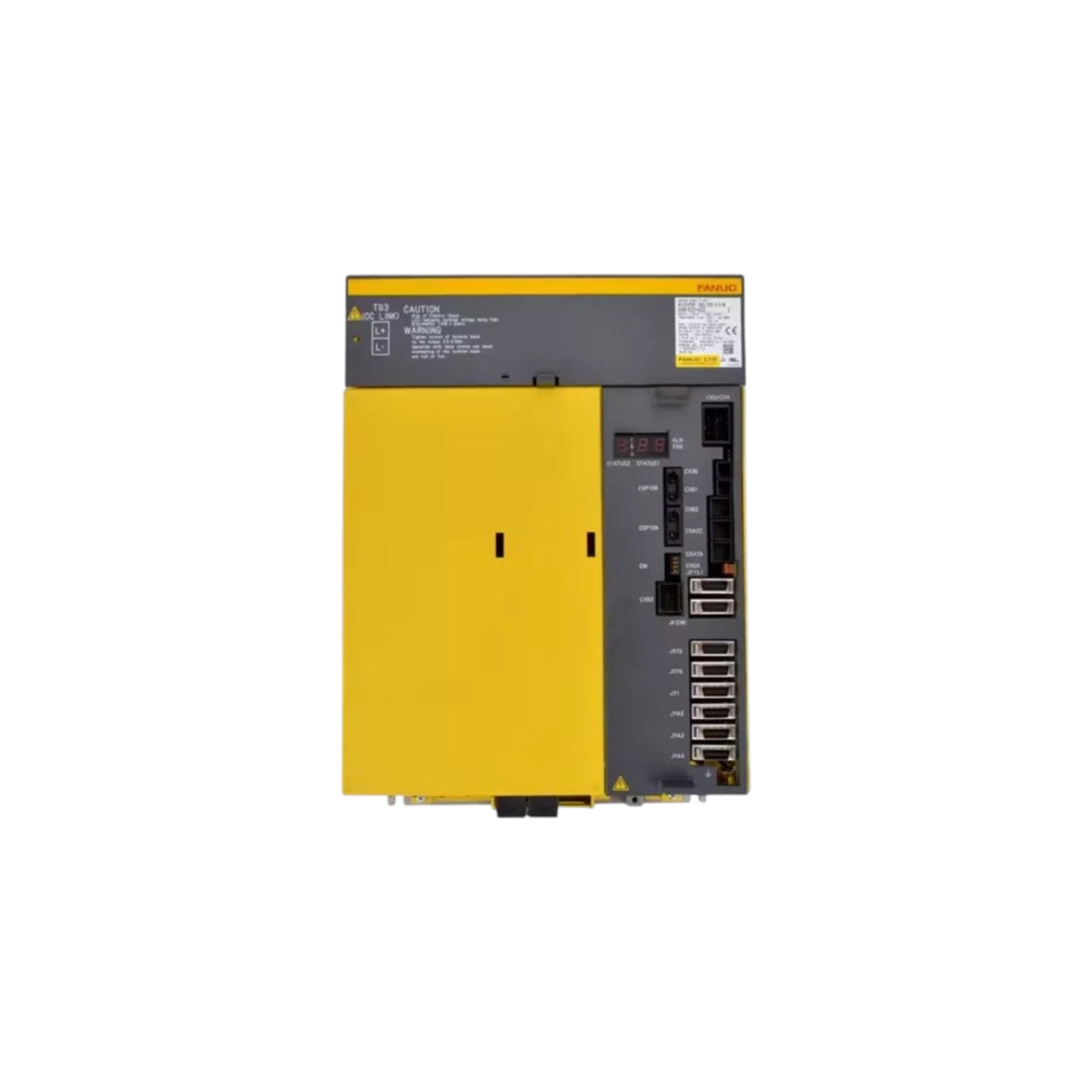

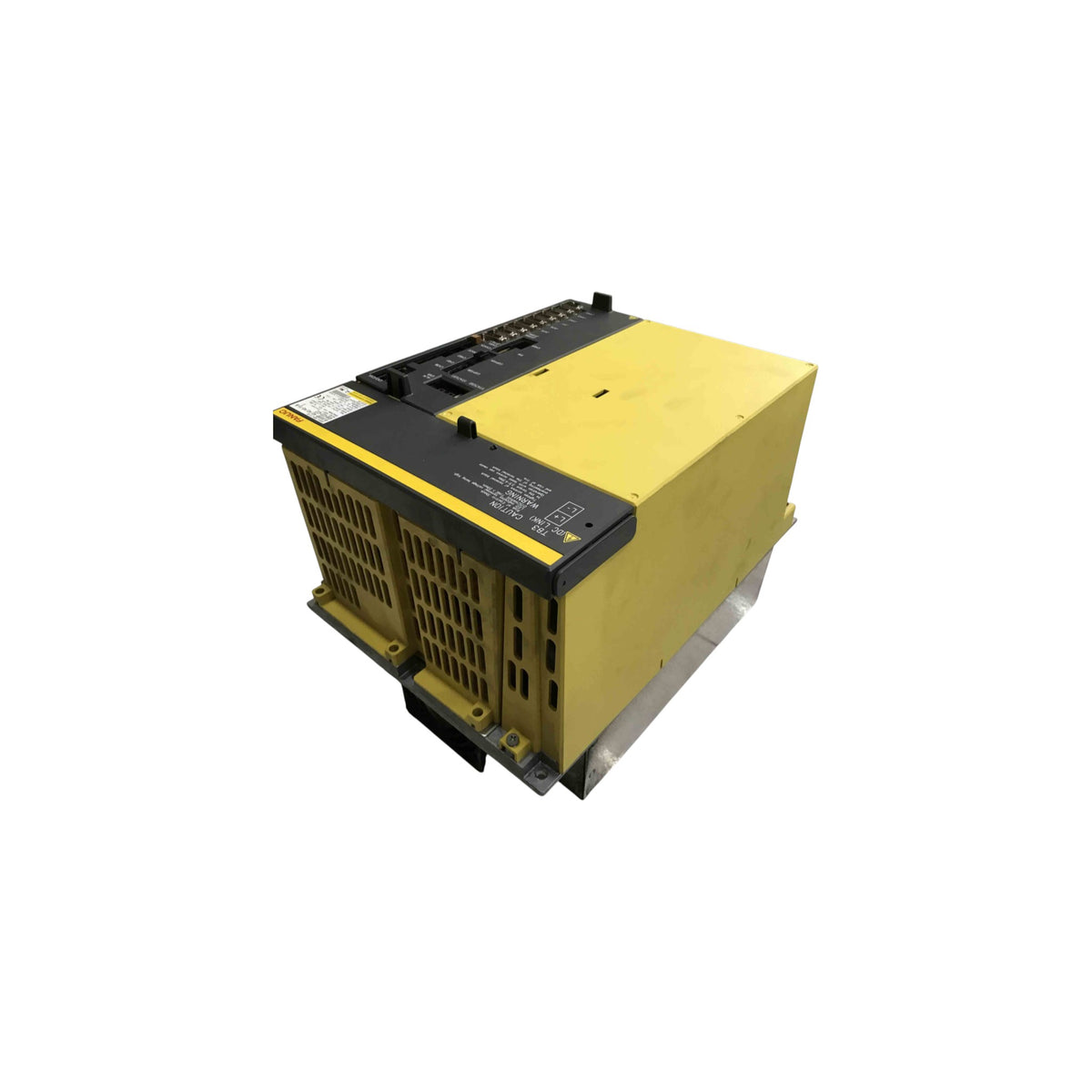

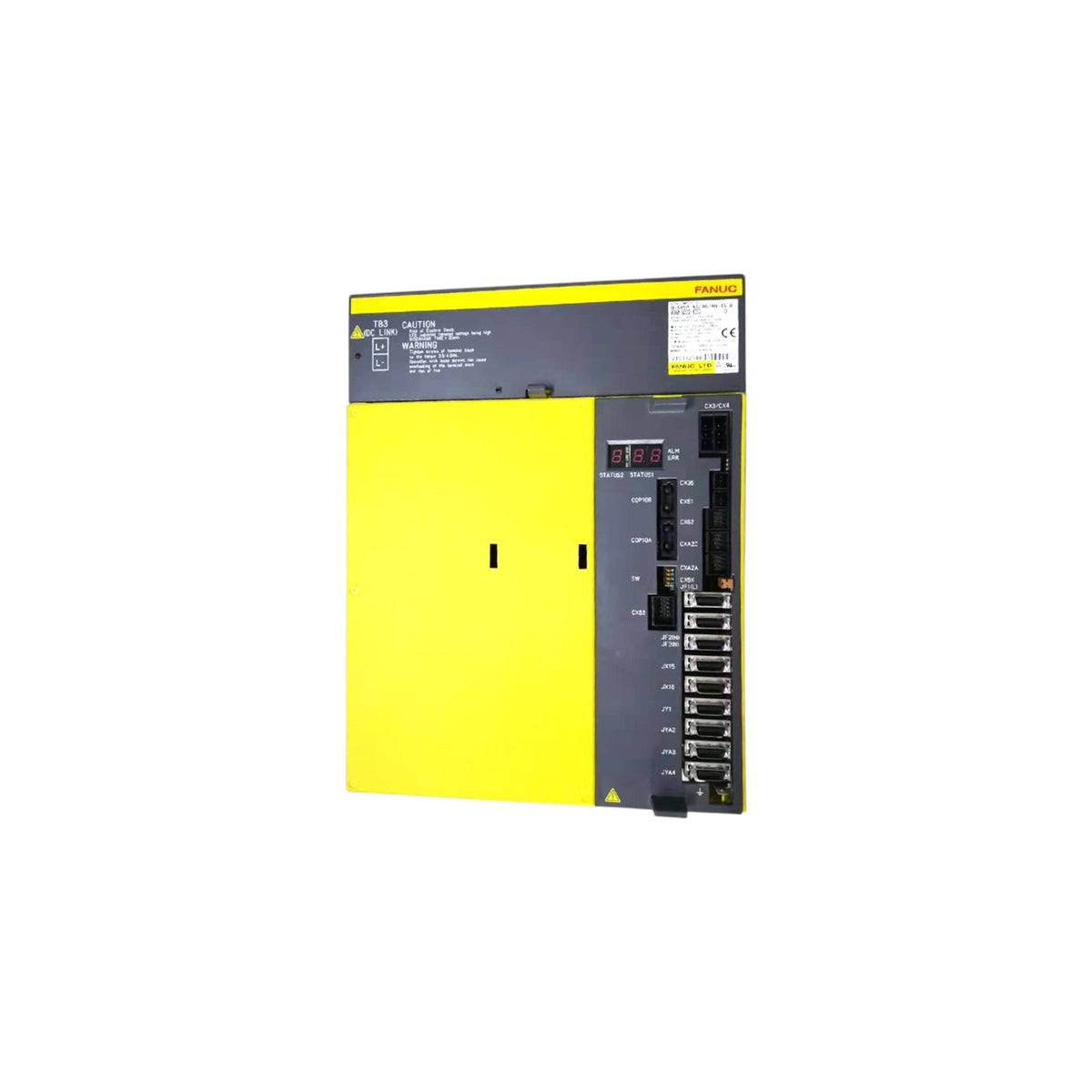

Fanuc Combi Drive βiSVSP 40/40/40-15-B A06B-6320-H333

The Fanuc βiSVSP 40/40/40-15-B Combi drive (A06B-6320-H333) is a βi-B series servo-spindle amplifier integrating a regenerative common power supply, one spindle amplifier and three servo axes in a single 260 mm-wide unit for Fanuc CNC machines. Available new and tested used/refurbished with warranty.

• Model: βiSVSP40/40/40-15-B — Ordering number: A06B-6320-H333 (260 mm width only)
• Applicable CNC: Series 30i/31i/32i/35i-B, Series 0i-F
• Main input: 200–240 VAC 3-phase, 62 Arms / 22 kVA; regenerative common power supply
• Power supply section: 15 kW continuous / 18.5 kW 30-min / 54 kW short-time maximum
• Spindle output current: 74 Arms (spindle HRV1) / 64 Arms (HRV2); spindle output 1 Hz–1.5 kHz; speed variation ≤0.1%
• Servo axes L/M/N: rated 13 Arms, maximum 40 Ap each; servo HRV2/HRV3; servo output 0–550 Hz
• Control power: 24 VDC, 2.7 A max; sine-wave PWM control with IGBT; ambient 0–55 °C
• Dimensions: 380 × 260 × 264.5 mm (max); mass 11 kg
• AC reactor option: A81L-0001-0185
• Condition options: New / Used / Refurbished — tested before dispatch
