Description

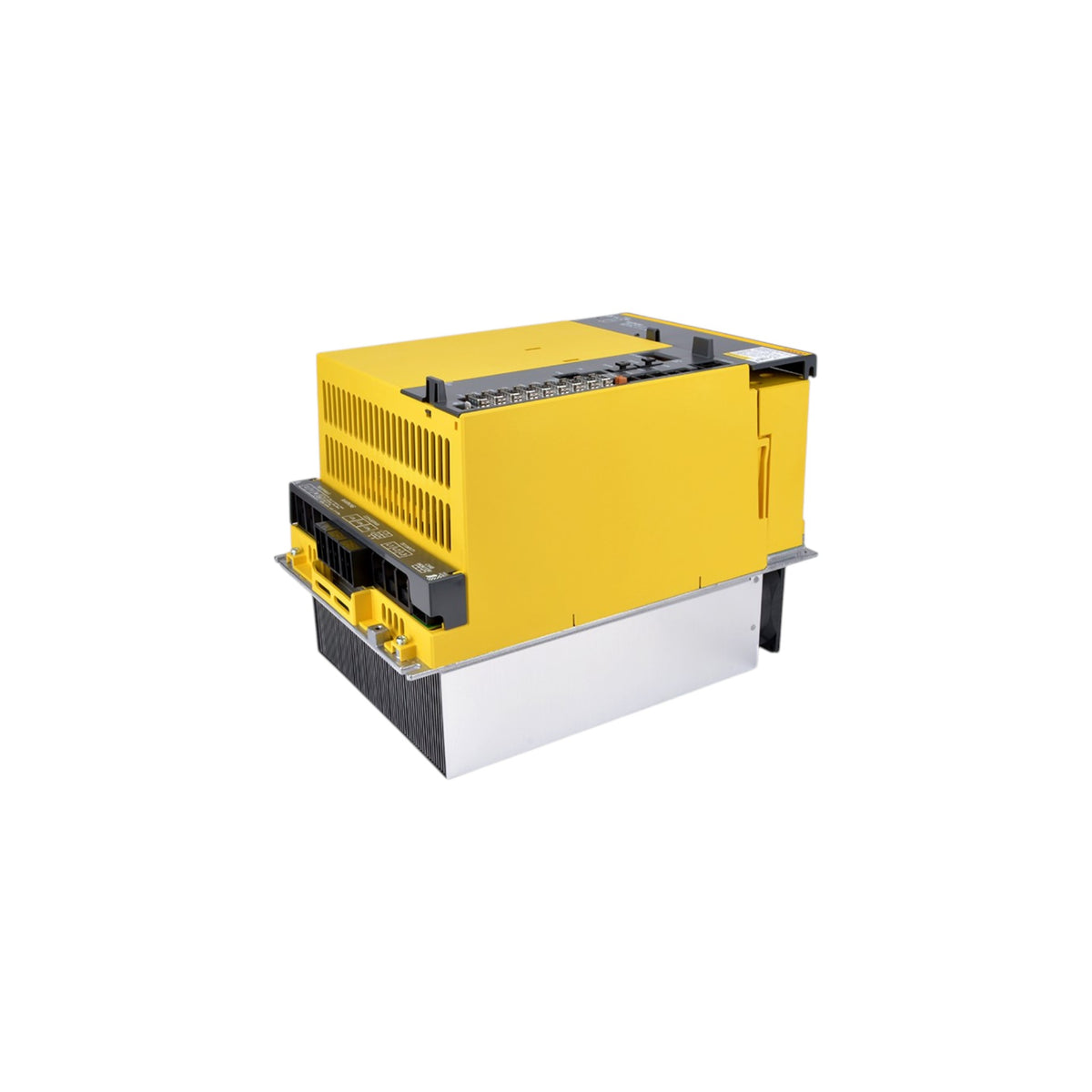

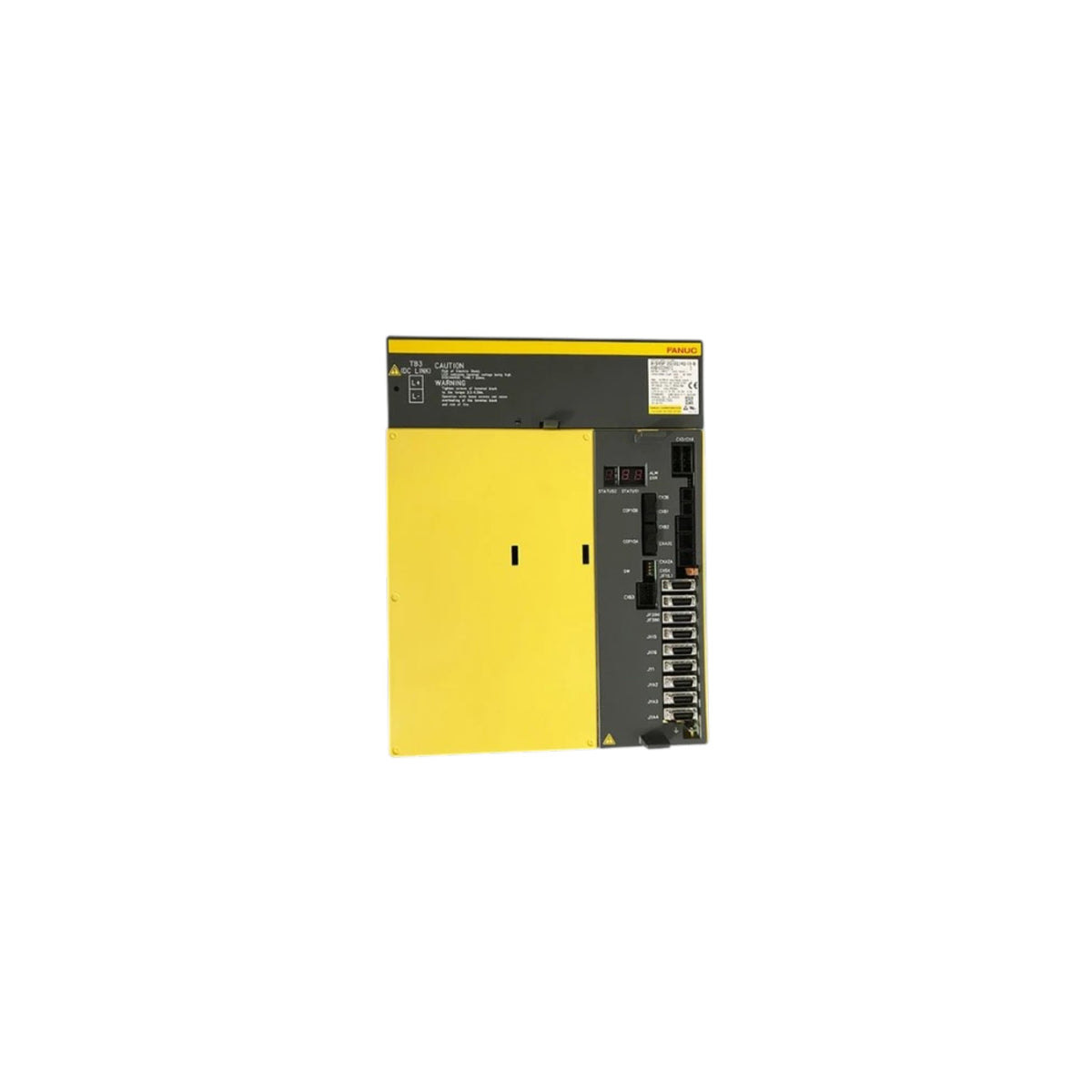

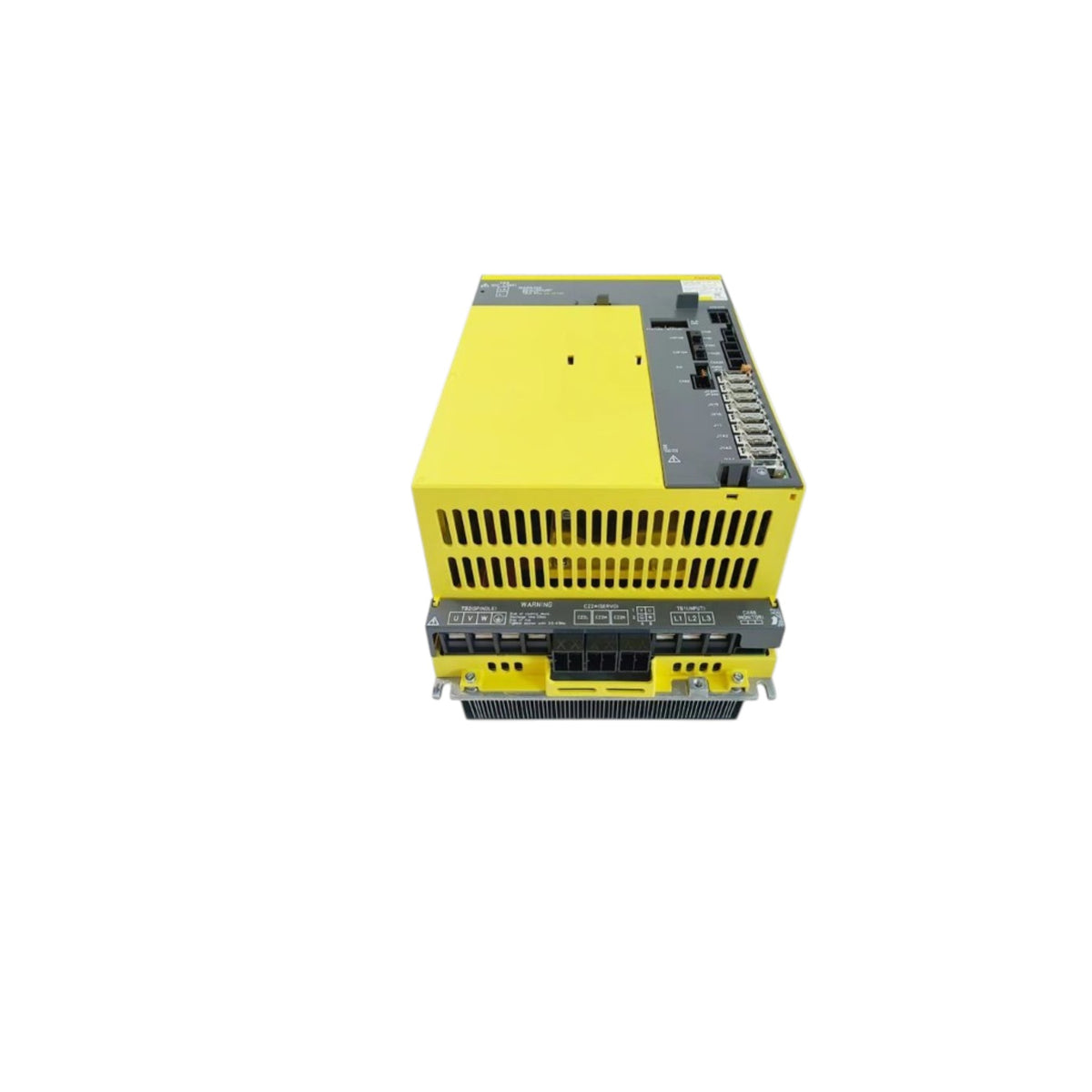

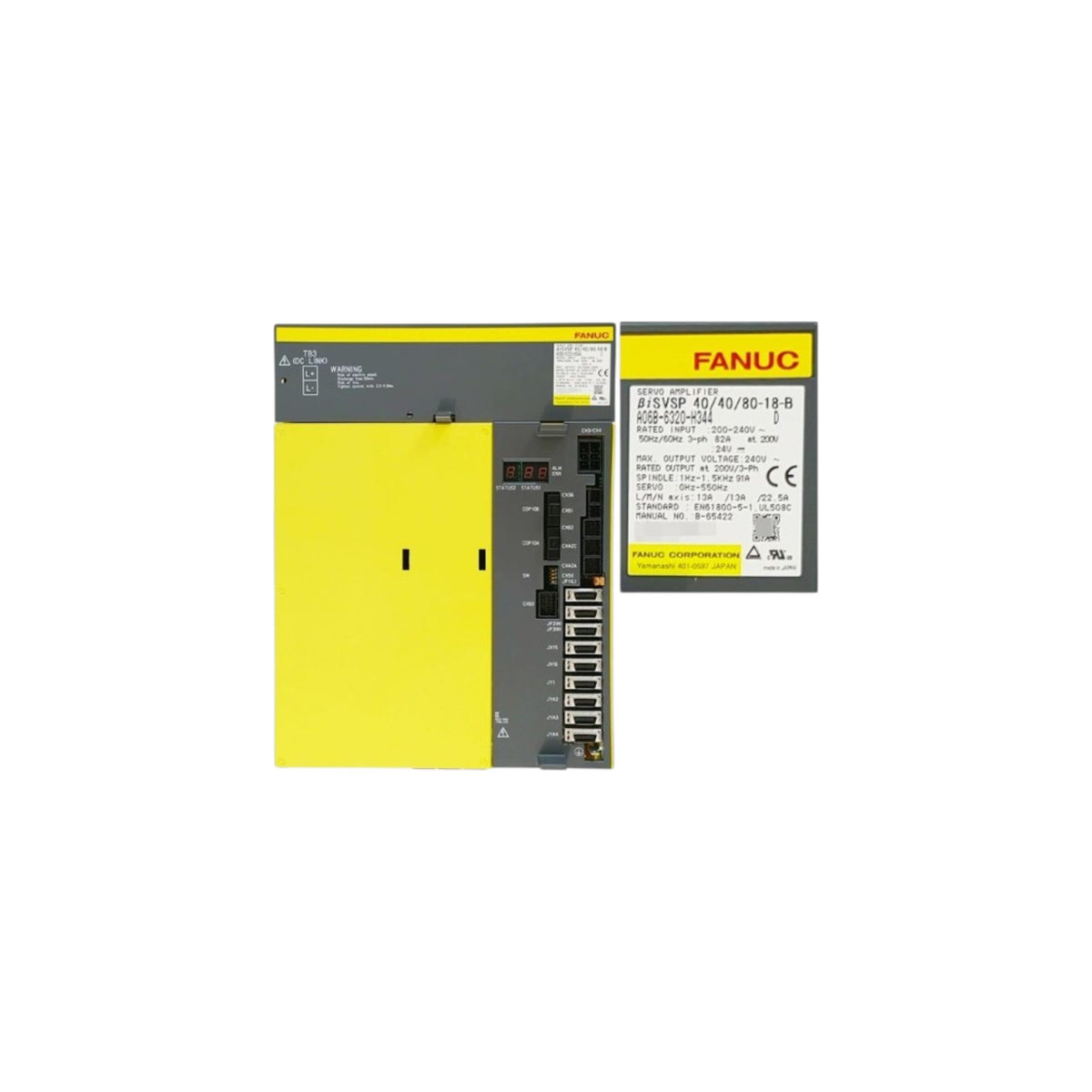

The Fanuc βiSVSP 40/40/80-18-B Combi drive (A06B-6320-H344) is a βi-B series servo-spindle amplifier integrating a regenerative common power supply, one spindle amplifier and three servo axes in a single 260 mm-wide unit for Fanuc CNC machines. Available new and tested used/refurbished with warranty.
- Model: βiSVSP40/40/80-18-B — Ordering number: A06B-6320-H344 (260 mm width only)
- Applicable CNC: Series 30i/31i/32i/35i-B, Series 0i-F
- Main input: 200–240 VAC 3-phase, 82 Arms / 29 kVA; regenerative common power supply
- Power supply section: 20 kW continuous / 24 kW 30-min / 65 kW short-time maximum
- Spindle output current: 91 Arms (spindle HRV1) / 80 Arms (HRV2); spindle output 1 Hz–1.5 kHz; speed variation ≤0.1%
- Servo axes: L/M rated 13 Arms, max 40 Ap each; N rated 22.5 Arms, max 80 Ap; servo HRV2/HRV3; servo output 0–550 Hz
- Control power: 24 VDC, 2.7 A max; sine-wave PWM control with IGBT; ambient 0–55 °C
- Dimensions: 380 × 260 × 264.5 mm (max); mass 11 kg
- AC reactor option: A81L-0001-0186
- Condition options: New / Used / Refurbished — tested before dispatch
Need this part? Get a quote today.
Call or WhatsApp +91 88262 07004 — we ship across India and worldwide. Repair and exchange options are also available for Fanuc CNC systems.
