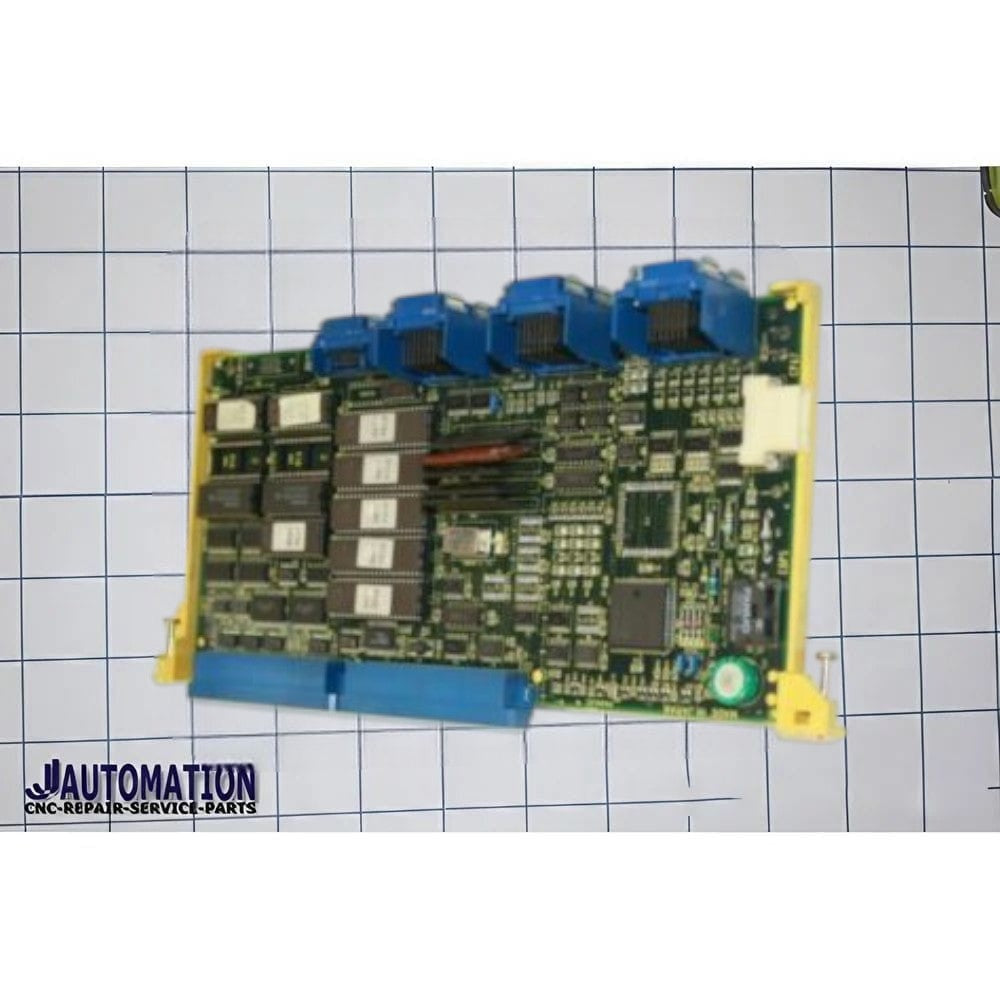

📌 FANUC A20B‑8100‑0334 — RS‑232 Serial Communication PCB (RB/DNC2)
What it is:
The FANUC A20B‑8100‑0334 is a serial communications printed circuit board (PCB) used in FANUC CNC controller systems to provide RS‑232 data transfer functionality. It’s part of the A20B‑8100 series of optional interface and expansion cards that can be installed in modular FANUC controls to add or extend communication capabilities.
Primary Function:
-
📡 RS‑232 Serial Communication Interface: This board implements an RS‑232 (RB/DNC2) communication port on the CNC controller, enabling serial data exchange between the CNC and external devices (such as a PC, modem, or other serial equipment) for program transfer, diagnostics, or DNC operations.
-
🧑💻 DNC2 Support: Often labeled as DNC2/RS‑232, it supports FANUC’s DNC2 communication protocols commonly used for direct numerical control data transfers.
Where it fits:
-
📌 This module is typically installed in a controller’s mini expansion slot or dedicated communication slot on the main PCB/backplane.
-
It is not a standalone controller — it’s an add‑on board used to enhance communication options in systems like FANUC 16i/18i/21i and other modular i‑Series controls which allow optional interface cards.
Typical Use Cases:
-
🔁 Program Upload/Download: Transfer CNC part programs, parameters, and configuration files between the machine and an external PC or server.
-
📊 Diagnostics & Monitoring: Serial communications for third‑party software, monitoring tools, or legacy equipment that uses RS‑232.
-
📟 Integration with DNC: Connects to Distributed Numerical Control (DNC) systems where programs are fed from a central computer to the machine.
Installation Notes:
-
🛠️ Core Exchange: Typically supplied via core‑exchange from parts distributors (return old board in exchange for a refurbished/new one).
-
🧰 Repair options vary by vendor — some may not offer board‑level repair.
