Description

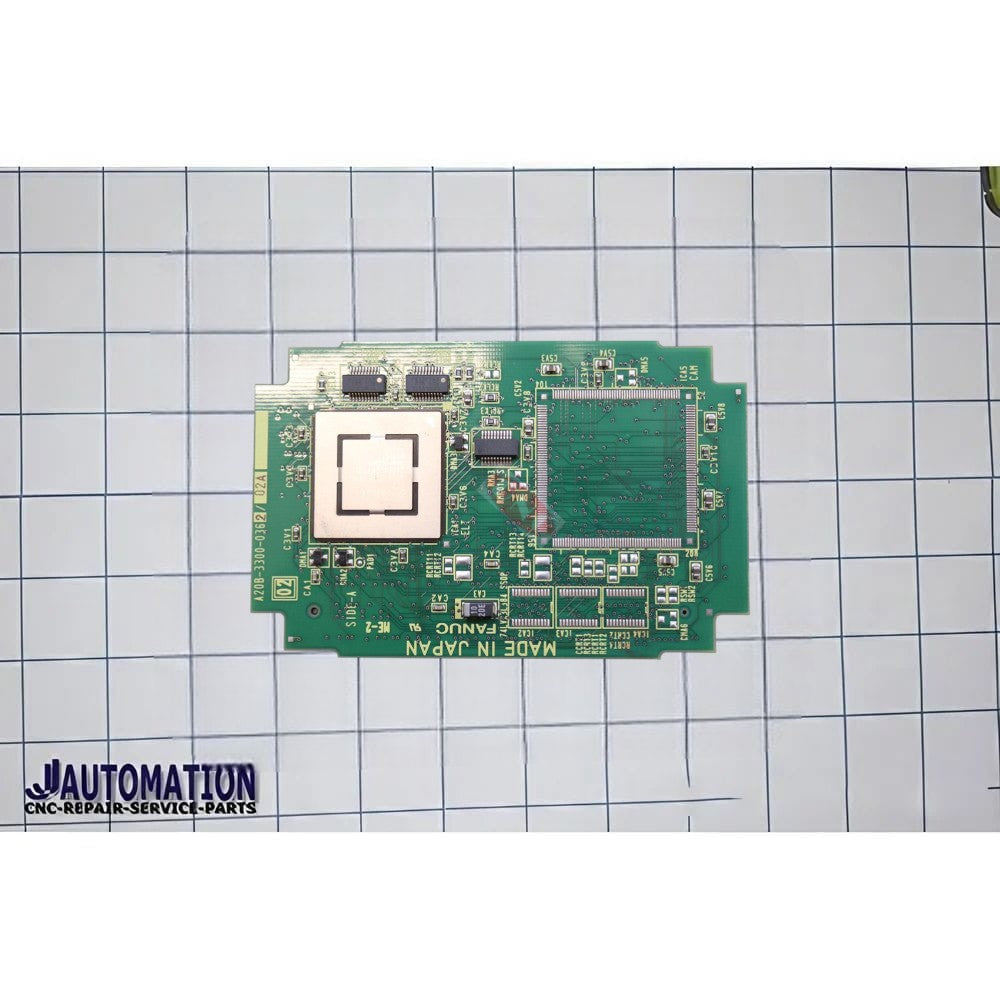

๐ FANUC A20B-3300-0362 โ Display/MDI Control Module
The FANUC A20B-3300-0362 is a display control module used in FANUC CNC controllers. Itโs part of the A20B-3300 series of printed circuit boards (PCBs) that handle display and operator interface functions inside the CNC control system.
๐ง What It Does
-
๐ฅ๏ธ Display/MDI Control Module: This board is responsible for driving the display output (graphics or text) and handling manual data input (MDI) interface signals in the CNC controller.
-
๐ Operator Interface: It links the CNCโs processor and the operator panel, ensuring that menus, coordinates, program info, and other interface elements show correctly on the screen.
-
๐ Embedded Ethernet (in some variants): Some versions of this module support embedded Ethernet connectivity for network communication in FANUC i-Series controls.
๐ Typical Use
This module is used in FANUC CNC systems โ especially i-Series (like 16i, 18i, or 21i), including โBโ and โS-Bโ models โ to control the communication between the machineโs display panel and the main controller electronics.
๐ Key Points
-
Part Number: A20B-3300-0362
-
Category: Display Control / MDI PCB module
-
Function: Drives graphics and operator interface elements; handles display communication
-
Series: Commonly found in FANUC i-Series CNC controllers (e.g., 16i, 18i, 21i variants)
