FANUC A02B‑0265‑C101 — Description
Part Number: A02B‑0265‑C101
Manufacturer: FANUC
Category: Fan / Ventilation module used in FANUC CNC systems.
📌 What It Is

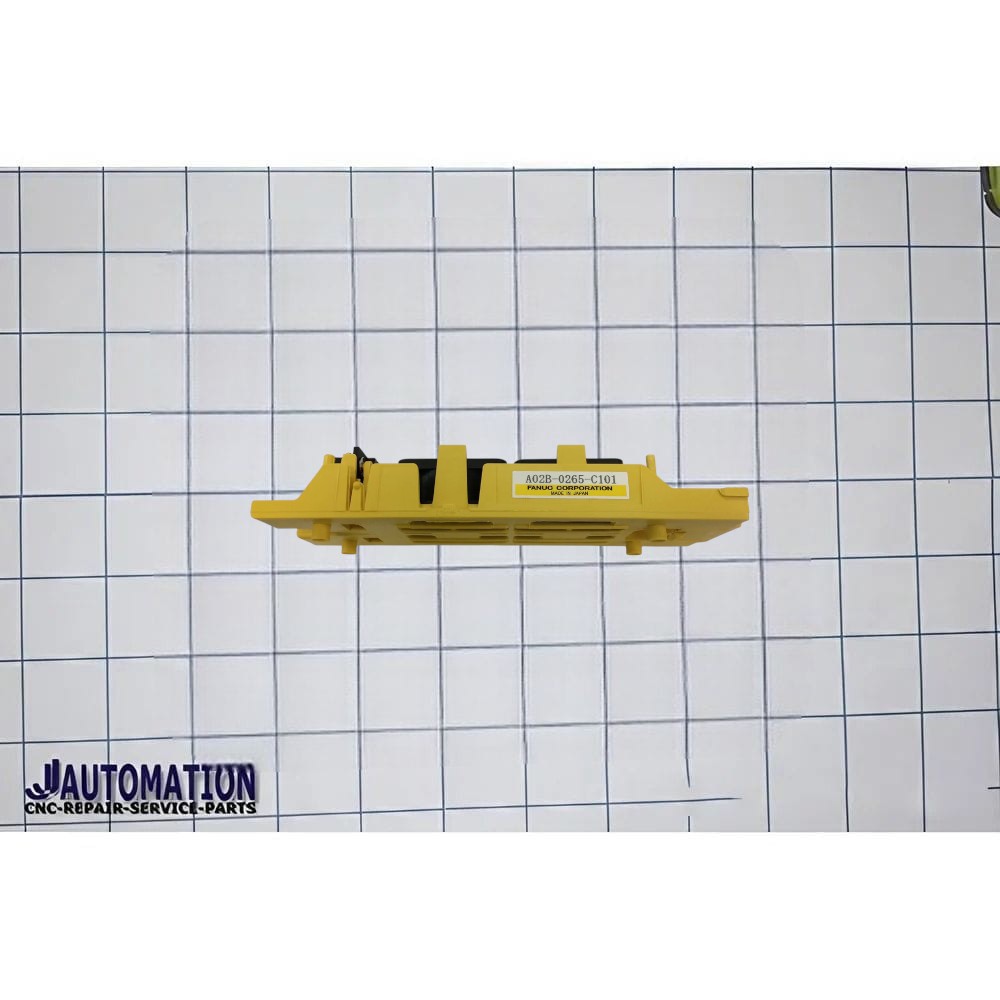

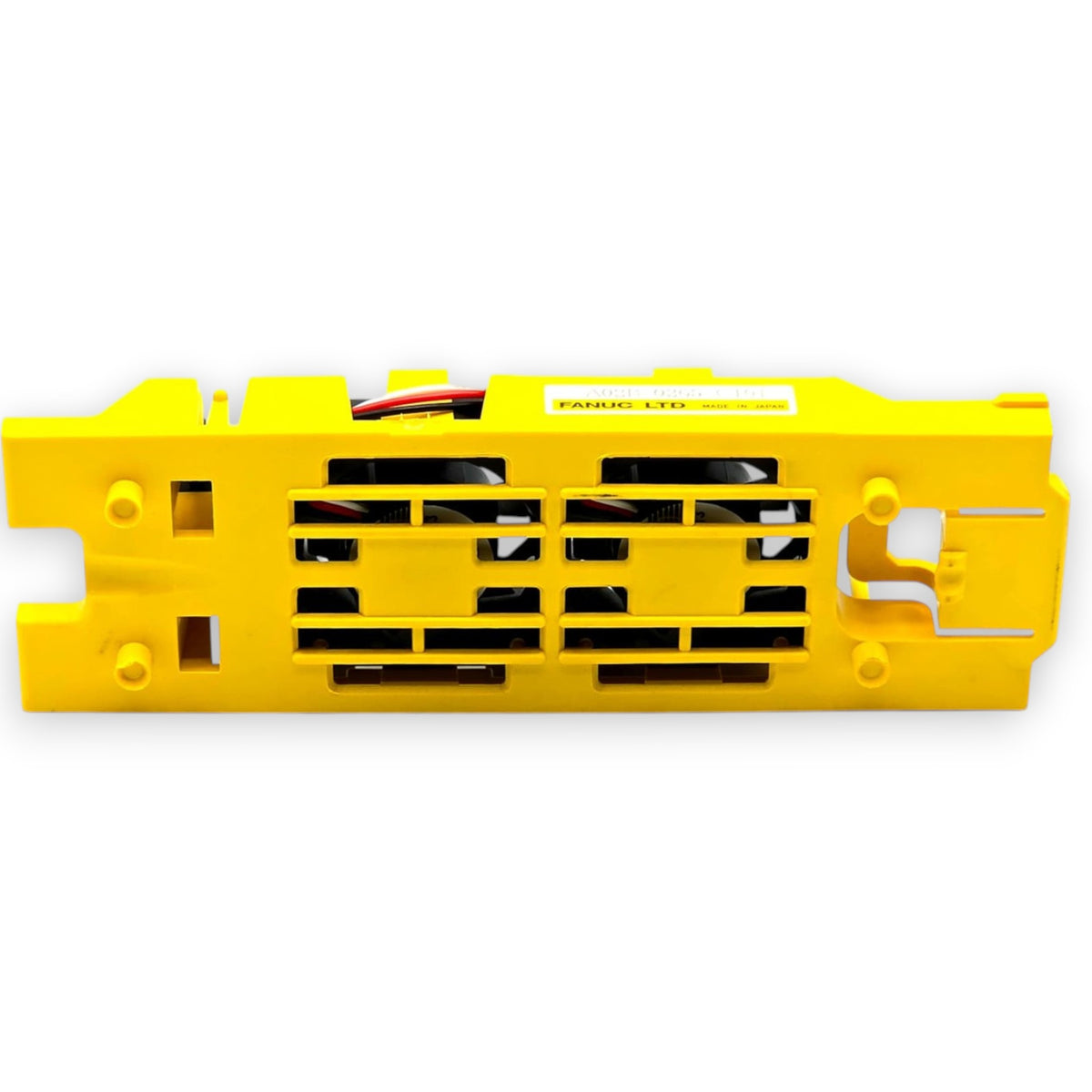

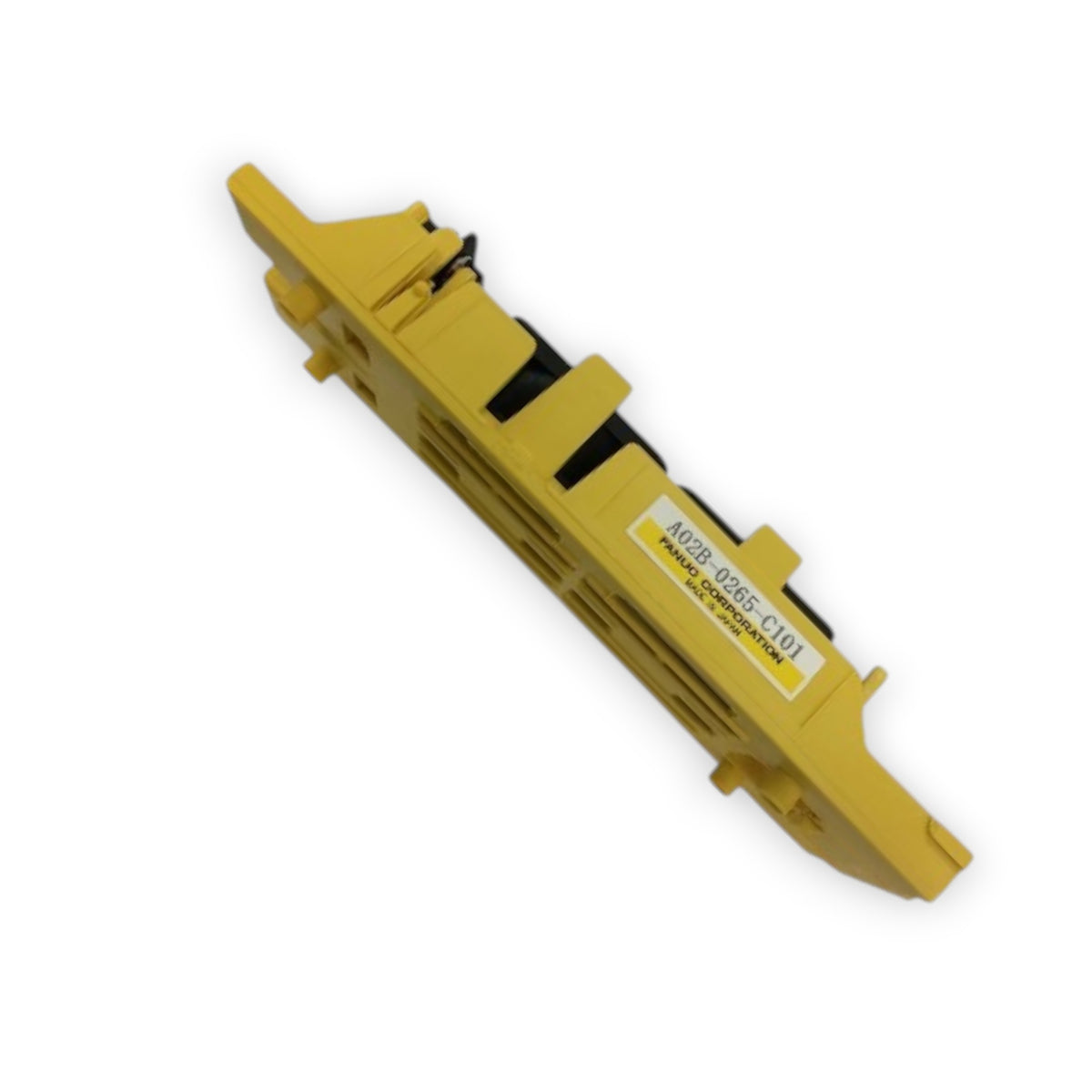

The A02B‑0265‑C101 is a fan unit assembly — essentially a ventilation/fan module used inside a FANUC CNC control cabinet. It’s not a display or logic board, but rather a cooling component that helps circulate air to maintain proper operating temperature of internal electronics.
🧩 Key Details
-
🌀 Function: Cooling fan assembly for CNC control electronics — helps dissipate heat inside the controller cabinet to protect other components.
-

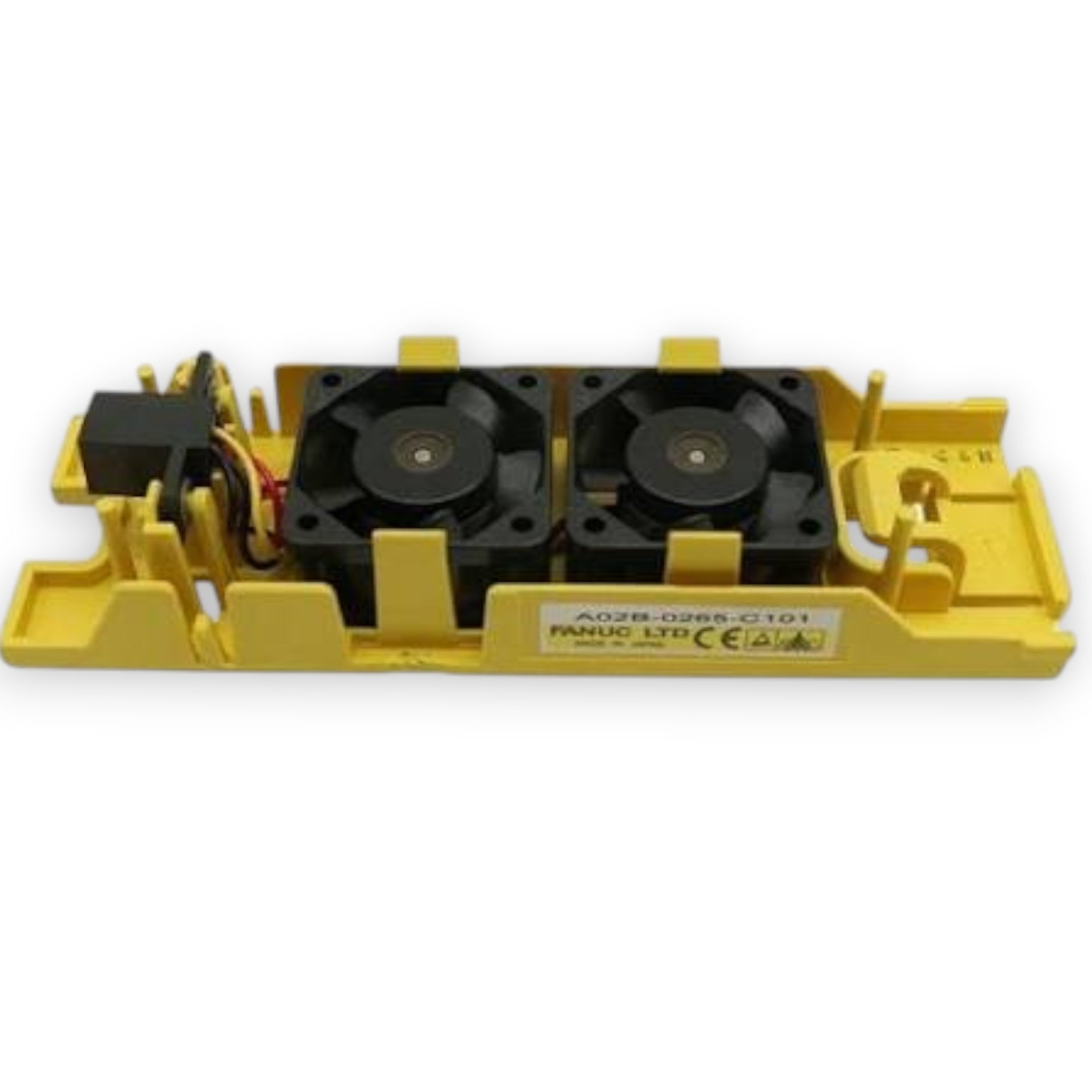

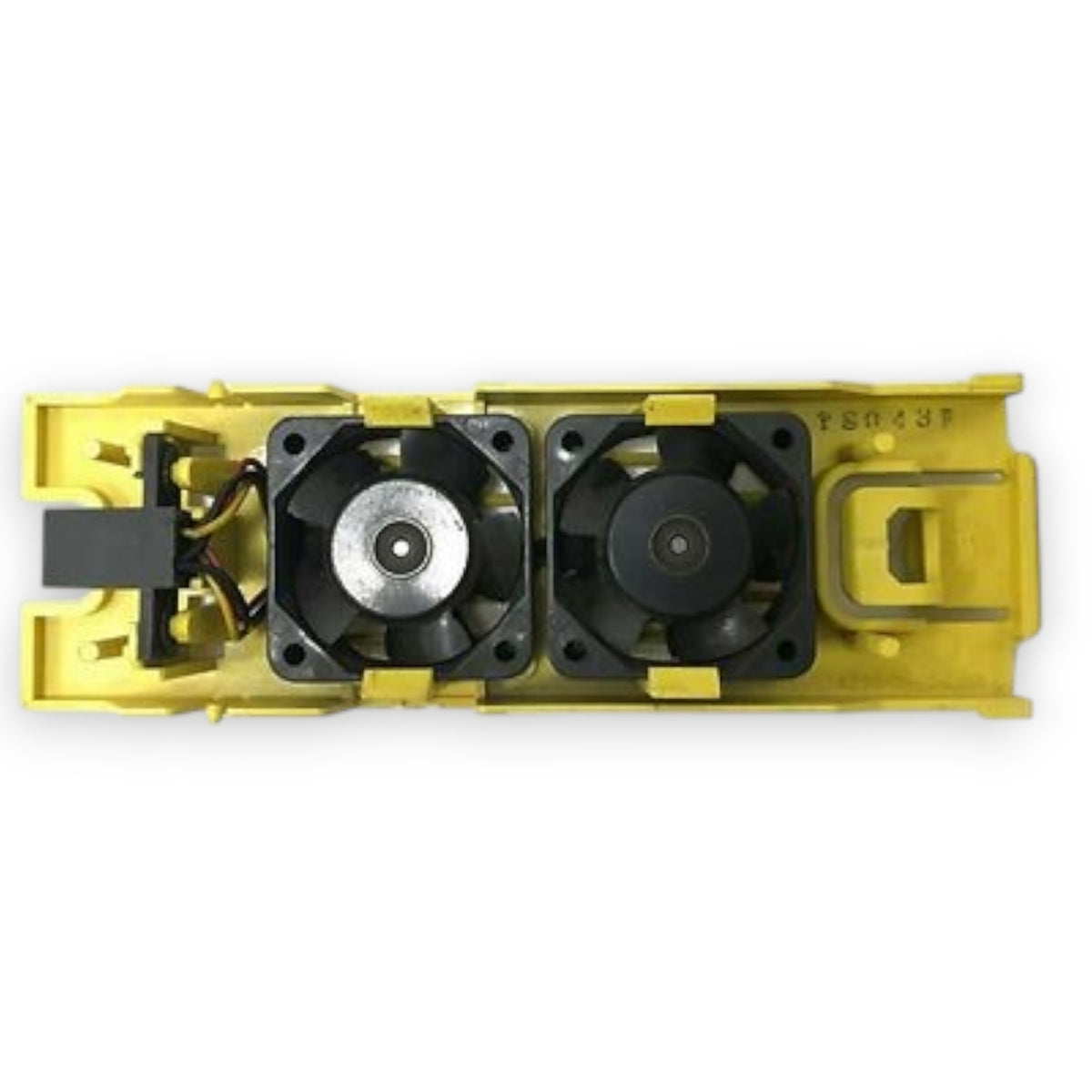

🍃 Configuration: Often includes two small 40 × 40 × 20 mm DC fans assembled together as a unit with a common connector.
-
🔌 Connector: Typically a 4‑pin fan connector for connection to the control’s internal power supply/backplane.
-
🛠️ Application: Installed in the basic unit / main controller cabinet (e.g., in single‑slot FANUC systems like 15i, 16i, 18i, etc.) to cool the control electronics.
⚙️ Usage Context
This part is used as part of the internal cooling system of FANUC CNC controllers. Proper cooling is essential for reliable performance and to prevent overheating of sensitive control boards and power components. If the fan fails or becomes noisy, replacing this unit helps maintain stable CNC operation.
🛠 Summary
FANUC A02B‑0265‑C101 is a ventilation fan unit that provides internal cooling for FANUC CNC control cabinets, typically comprising two DC fans in a single assembly with a multi‑pin connector.
