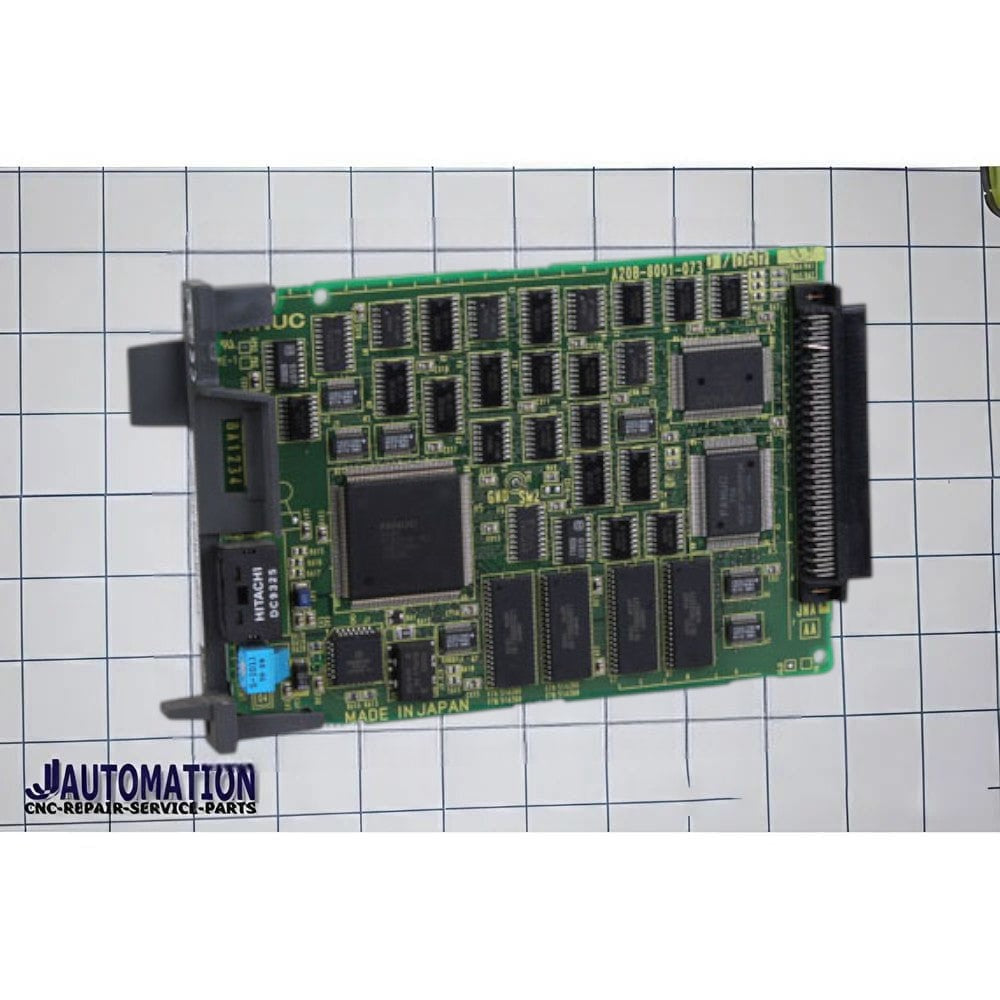

📌 FANUC A20B‑8001‑0730 — HSSB Interface PCB
Description:
The FANUC A20B‑8001‑0730 is an HSSB interface printed circuit board (PCB) used in FANUC CNC control systems as a High‑Speed Serial Bus (HSSB) interface module. It provides a dedicated serial bus communication path between modules within the controller, enabling fast data exchange across the control architecture.
Key Functions:
-
🛰 HSSB Interface: Implements the High‑Speed Serial Bus communications standard that FANUC uses between CPU, axis/servo cards, display cards, and other modules. This helps improve data throughput and synchronization in modular CNC systems.
-
🔌 Module Type: It’s a plug‑in PCB that fits into the controller’s internal electronics rack / backplane, supporting i‑Series modular controls (e.g., Series 16i, 18i, 21i).
-
💻 Communication Role: Enables high‑speed data transfer and communication between internal modules — essential in multi‑card controllers for sharing status, commands, and feedback signals.
Typical Applications:
-
Used primarily in modular FANUC CNC controllers that rely on a backplane and communication bus for inter‑module data exchange.
-
Often found alongside CPU cards, servo/axis modules, memory modules, and display interface boards in controller assemblies.
Integration Notes:
-
The board slots into the controller’s interface backplane and works with the High‑Speed Serial Bus connectors to keep data flowing between various parts of the CNC electronics.
-
It’s not a CPU, memory, or main control board — but rather a communication interface that enhances the controller’s modular communication performance.
