📌 FANUC A02B‑0309‑D512#M — Part Description

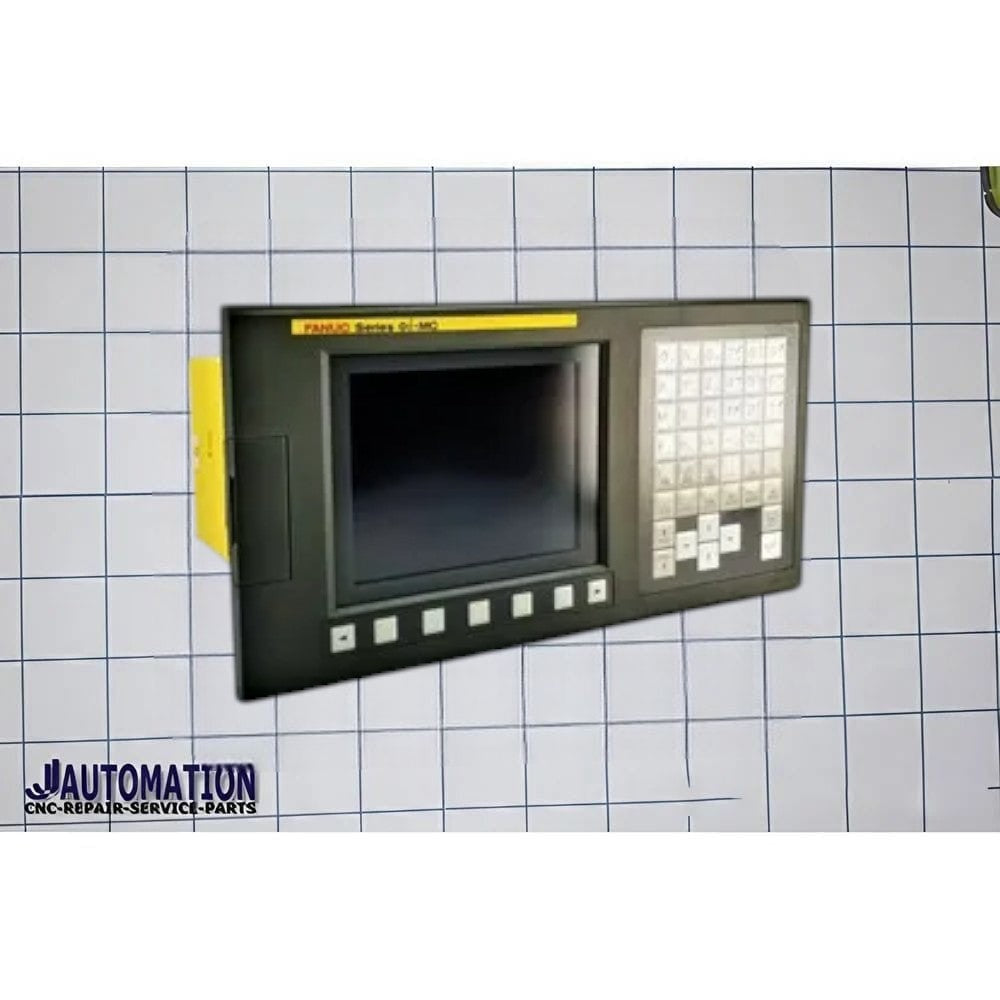

FANUC A02B‑0309‑D512#M is a display module used in FANUC CNC machine control operator panels:
🖥️ What It Is
-
Part Number: A02B‑0309‑D512#M
-
Product Type: 7.2‑inch Monochrome LCD/MDI Unit
-
Series: FANUC A02B‑0309 display family
-
The “#M” suffix indicates a horizontal type (M series) LCD/MDI display configuration used in the operator panel.
📊 Function
This part serves as the visual interface (HMI) for the CNC control, showing machine status, program data, menu screens, and operator information. It’s commonly found in FANUC CNC systems where a 7.2″ monochrome display is used.
-
Display Size: ~7.2 inches (monochrome LCD)
-
Role: LCD/MDI display unit (not the full CNC control — this is just the screen module)
-
Used In: FANUC operator panel assemblies on compatible CNC controls (e.g., Series 0i‑C / 0i‑Mate and others that accept 7.2″ MDI modules).
🛠️ Additional Notes
-
This part is often available new, refurbished, or repaired — and many suppliers require core exchange when replacing units.
-
It’s designed for industrial use, installed into the operator control housing and connected to the main control electronics that drive the CNC system’s user interface.
-
