📌 FANUC A02B‑0309‑D513#M — Part Description

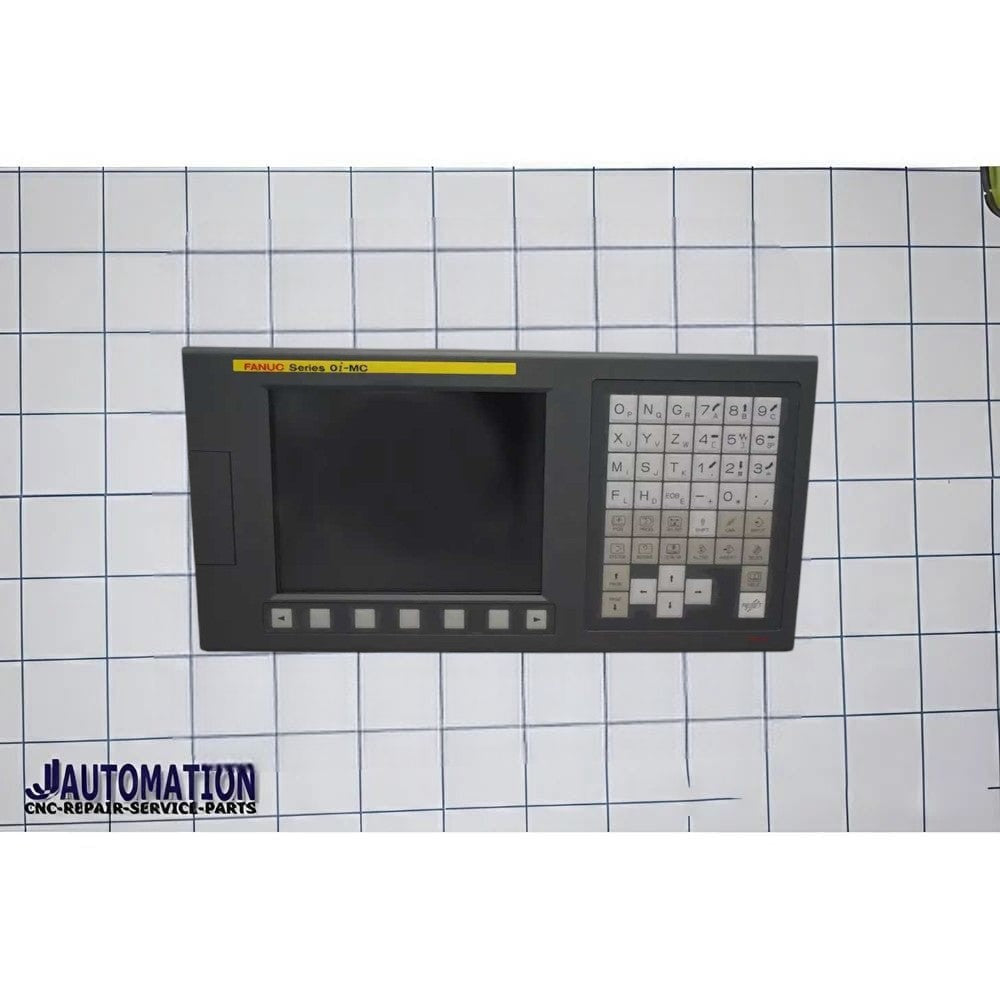

FANUC A02B‑0309‑D513#M is a 7.2‑inch monochrome LCD/MDI display unit used in FANUC CNC machine control operator panels. It belongs to the A02B‑0309 series of display modules designed for visual interface and manual data input in CNC controls.
🖥️ What It Is
-
Part Number: A02B‑0309‑D513#M
-
Display Type: 7.2″ Monochrome LCD / MDI Unit (Mono LCD)
-
Series: A02B‑0309 display family for FANUC CNC control panels
-
Configuration: Vertical / M series mounting orientation (the #M suffix indicates this specific mounting/layout style)
📊 Function & Use
This unit serves as the operator interface screen in a compatible FANUC CNC control panel — showing machine status, program information, operator menus, and other essential machine data. It’s installed into the CNC control’s front panel and connects to the main control electronics; it’s not a complete CNC controller by itself.
-
Display Size: ~7.2 inches
-
Display Type: Monochrome (black & white LCD)
-
Primary Role: Visual interface + MDI (Manual Data Input) display
-
Typical Application: FANUC Series 0i‑C, 0i‑Mate, and other systems that use 7.2″ display modules from the A02B‑0309 family
🛠️ Additional Notes
-
These displays are commonly sold new, refurbished, or repaired by industrial parts suppliers.
-
Often provided via core exchange programs (where your old unit must be returned).
