📌 FANUC A02B‑0309‑D513#T — Part Description

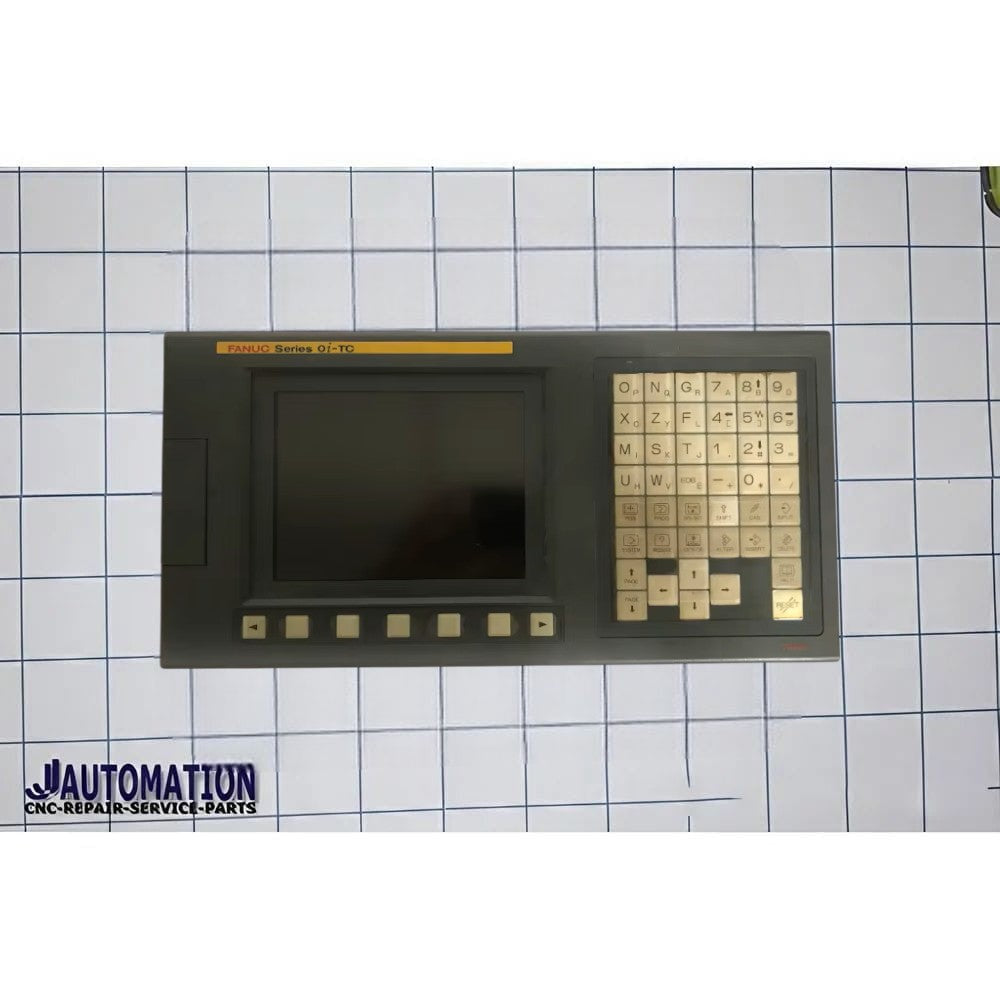

FANUC A02B‑0309‑D513#T is a 7.2‑inch monochrome LCD/MDI display unit used in FANUC CNC machine control operator panels. It’s part of the broader A02B‑0309 series of LCD/MDI (Machine Display/Interface) units that provide the visual interface for CNC operations.
🖥️ What This Part Is
-
Part Number: A02B‑0309‑D513#T
-
Display Type: 7.2″ Monochrome LCD (Mono) / MDI Unit
-
Series: A02B‑0309 display family for FANUC CNC operator panels
-
Suffix “#T”: Indicates the vertical mounting orientation (T‑series) of the display module.
📺 Role & Function
This unit functions as the visual human‑machine interface (HMI) in a CNC control panel:
-
Displays machine status, program data, parameters, and operator menus.
-
Provides interaction with the control system (via soft keys/buttons on the panel around the screen).
-
Typically installed in operator console housings of supported FANUC CNC controllers.
🛠️ Typical Usage
-
Commonly used with FANUC Series 0i‑C, 0i‑Mate, and other compatible controllers that accept 7.2″ display modules in their operator panels.
-
Supplied as a replacement display module — often available new, refurbished, or repaired through industrial parts suppliers.
-
Many sellers require a core exchange when purchasing a replacement unit.
