FANUC MANUAL PULSE GENERATOR A860-0203-T001

Overview

• Part Number: A860-0203-T001

• Type: Manual Pulse Generator (MPG) / handwheel encoder

• Variant: Without flange (w/o flange) — designed for panel mounting rather than a flush or flange-mounted configuration

• Replacement / Supersedes: This version replaces earlier models such as A860-0202-T001 / T002 and A860-0201-T001 in Fanuc’s lineup.

Electrical / Signal Specifications

• Power Supply: +5 V DC for the encoder section

• Output / Signal Type: Quadrature encoder outputs (A, B)

• Load / Output Impedance: 330 Ω or open-collector configuration

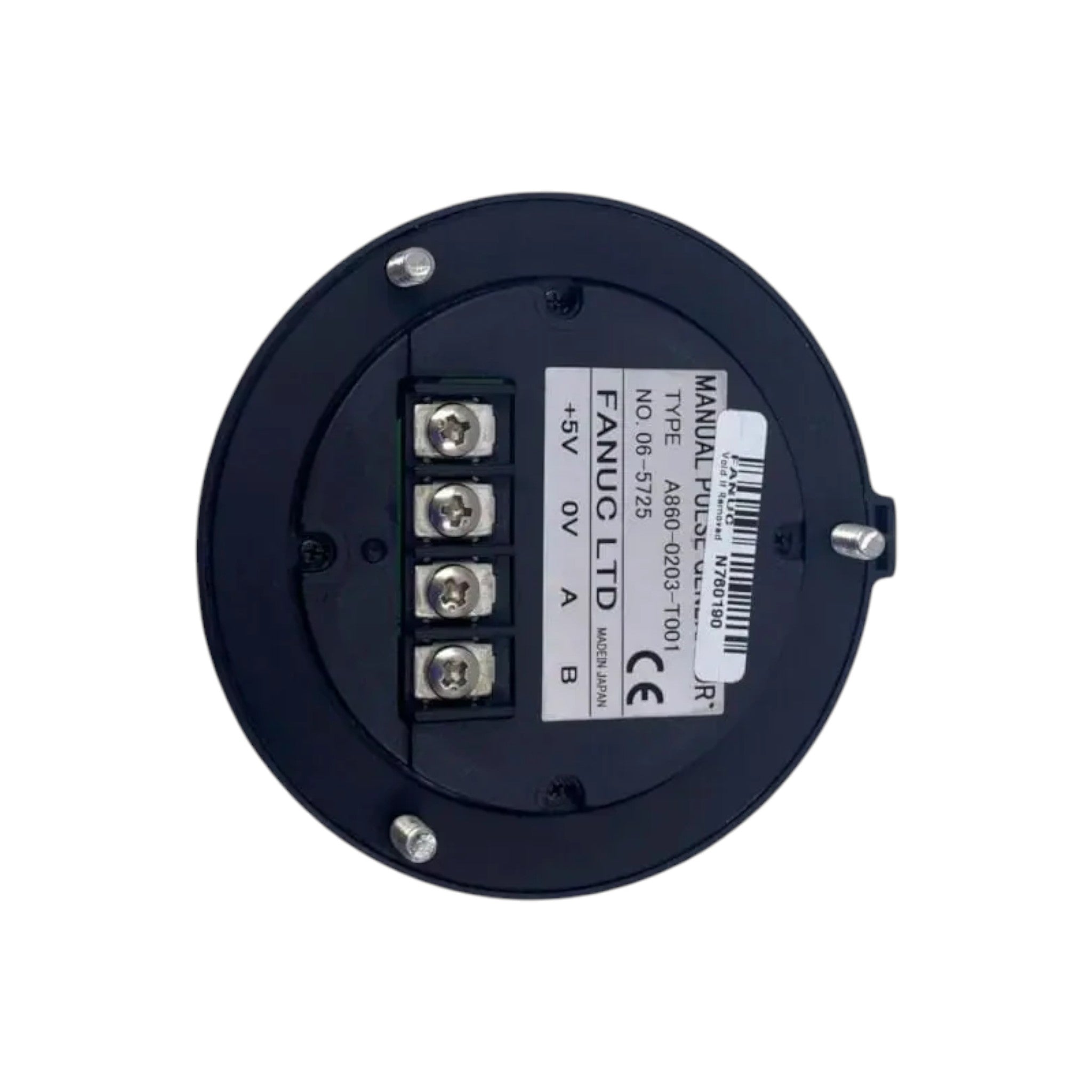

• Terminals / Pins: +5V, 0V (ground), A, B (signal outputs)

• Scale / Axis Selection: The unit includes scale-selection and axis-selection switches. For the T001 variant, typical usage is selecting scale (×1, ×10, ×100) and axis (X, Y, Z, etc.) via common terminals COM1 and COM2.

Mechanical / Physical Specifications

• Pulse Count: Standard 100 pulses per revolution (“100PPR click”)

• Shaft / Mounting: Tapered (keyed) shaft design, no flange

• Weight: ~ 200 g

• Construction: Optical / encoder-based handwheel for precise position feedback

Use Cases & Applications

• The MPG is used in CNC controls / operator panels to allow manual, fine control (jogging, setup) of axes positioning.

• Because it is “without flange”, it is typically panel-mounted with the shaft extending to be engaged by a handwheel or knob.

• It is used especially where precision manual control is needed in machine tools, for CNC axis offsetting, adjustments, etc.
