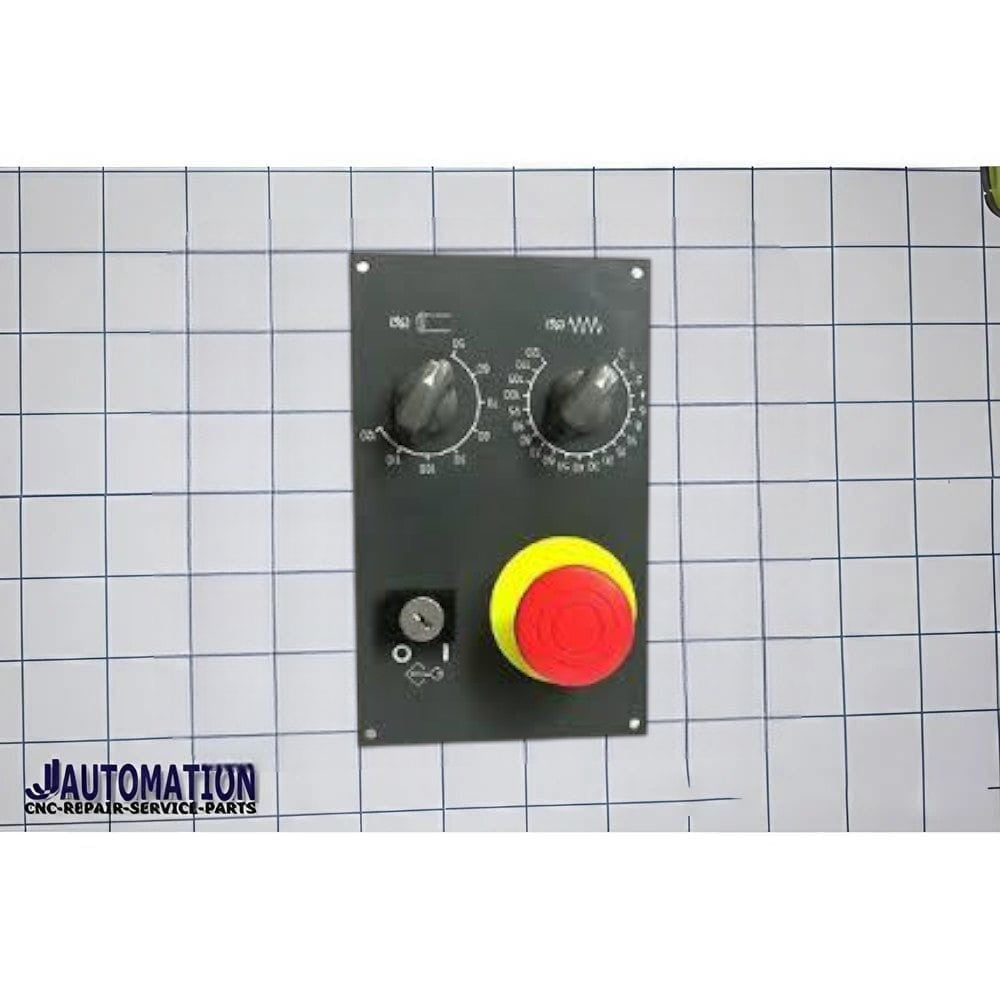

📌 FANUC A20B‑0236‑C232 — Machine Operator Panel (Sub Panel A)
Description:
The A20B‑0236‑C232 (often sold and listed as A02B‑0236‑C232) is a machine operator sub‑panel (Sub Panel A) used in FANUC CNC control systems as part of the operator interface. It serves as an auxiliary or secondary panel providing operator controls and status indicators on the machine.
Function & Features:
-
🧑🔧 Operator Sub Panel A: Provides essential machine controls for operators, typically including things like emergency stop, power ON/OFF pushbuttons, rotary switches, indicator lights, and other basic machine control elements depending on configuration.
-
🚨 Emergency Stop & Controls: Often equipped with E‑Stop, rotary selector switches, status lamps, and pushbuttons for immediate machine control actions.
-
📌 Panel Type: This is a sub‑panel, not the main full operator console — it usually complements the main panel by providing basic operator controls.
-
⚙️ Application: Commonly found on FANUC Series 0i, 16i, 18i, 21i and similar CNC controllers as part of the machine’s control panel assembly.
Typical Use Cases:
-
Provides operator entry points for controlling machine states (like power, reset, emergency stop, mode selection, etc.).
-
Acts as a compact sub‑panel when a full main panel isn’t necessary or as a supplemental panel on larger consoles.
