Description

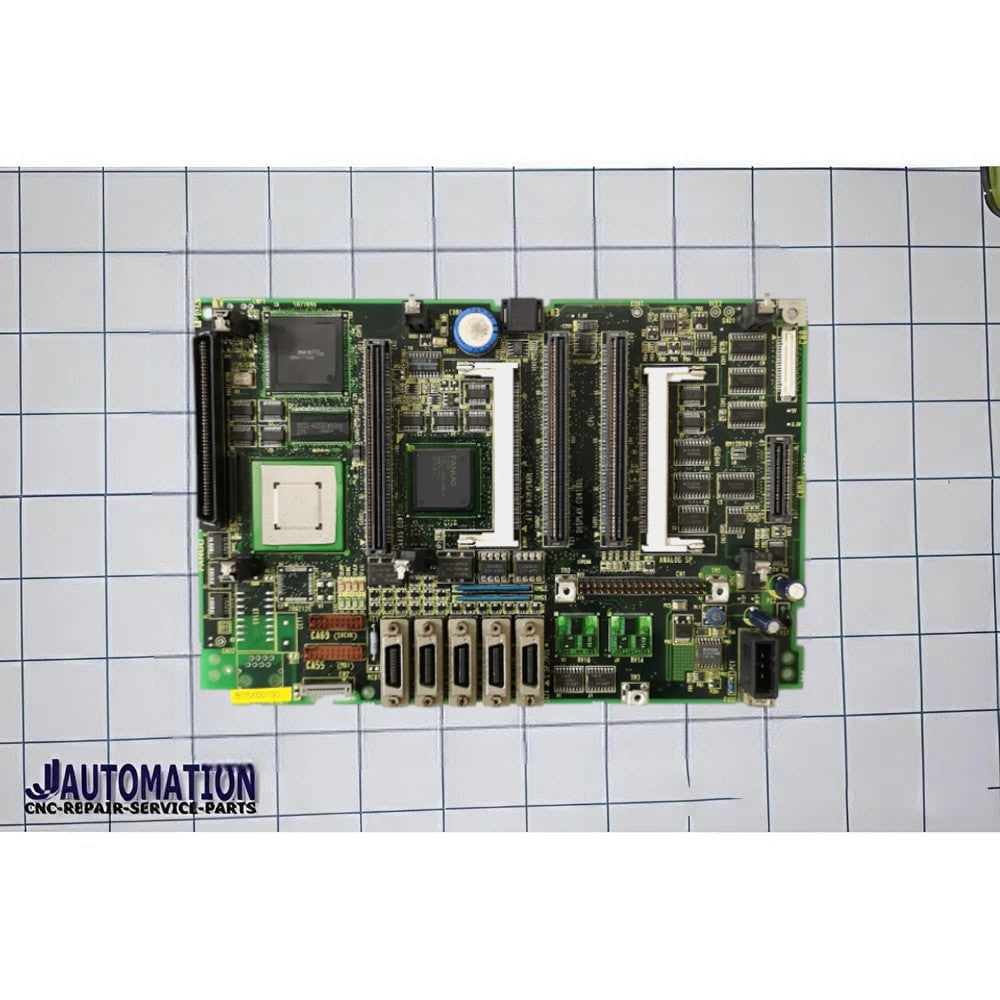

FANUC A02B-8101-0280 (sometimes referenced/worked as A20B-8101-0280) is a main control PCB (printed circuit board) used in FANUC CNC controllers — specifically as the main board for the 0i-C CNC control system.
📌 Part Overview
-
Part Number: A20B-8101-0280
-
Category: Main Printed Circuit Board (Main PCB)
-
Used In: FANUC Series 0i-C CNC controls (found in machining centers, milling machines, etc.)
-
Function: Core CPU/logic board — this board handles the central processing and I/O communications for the 0i-C CNC controller, including connections to servo links, MDI, serial ports, I/O, and power.
🧠 What It Does
The A20B-8101-0280 board acts as the main “brain” module inside the CNC control system. It:
-
Interfaces with servo drives via FSSB/servo connectors.
-
Provides manual data input (MDI) connectivity.
-
Handles communications ports such as RS-232 serial.
-
Manages I/O link, analog outputs, spindle/encoder interfaces, and power input.
-
Coordinates the CNC’s internal logic and processing required to drive the machine’s motion and control functions.
⚙️ Typical Use Cases
-
Replacement of a failed or malfunctioning main board in a FANUC 0i-C controller.
-
Servicing or upgrading older control cabinets where the PCB has aged or been damaged.
-
As part of maintenance inventories for industrial CNC support technicians.
