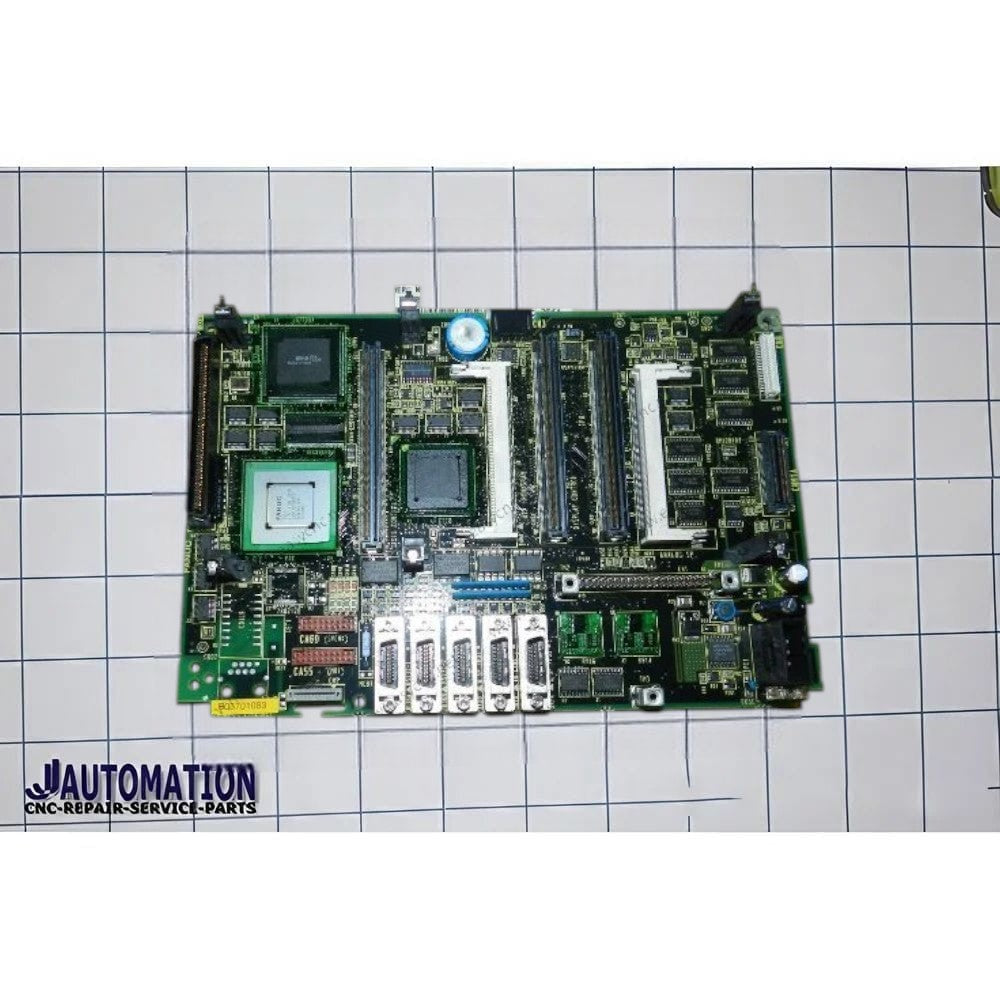

📌 A20B‑8101‑0281 — FANUC Main PCB (ZERO i-C CNC Control)
Description:
The FANUC A20B-8101-0281 is a main printed circuit board (PCB) used in FANUC CNC control systems — specifically the main control board for the FANUC 0i-C series. It functions as the central logic and processing board that orchestrates the CNC controller’s core functions.
🧠 Key Characteristics
-
Part Number: A20B-8101-0281
-
Category: Main Control PCB / System Board
-
Manufacturer: FANUC
-
System Family: FANUC Series 0i-C CNC controllers
-
Function: Acts as the central processor & interface board for the CNC control, handling communication between servo systems, I/O, operator inputs, communication ports, and PMC (Programmable Machine Controller) logic.
-
Integrated PMC: Typically ships with a PMC (Programmable Machine Controller) module such as the PMC-SB7 already on board, allowing for programmatic machine control.
🧩 What It Does
This board is the heart of the FANUC 0i-C CNC control, responsible for:
-
Servo Interface: Communicating with servo drives via FSSB (Field Servo Serial Bus).
-
MDI & RS-232 Ports: Managing manual data input (MDI) and serial communications.
-
I/O Link & Analog Outputs: Handling I/O links and analog signal routing.
-
Spindle/Encoder Interfaces: Supporting spindle and position coder connections.
-
Power & Control Logic: Receiving 24 VDC and distributing control logic throughout the CNC system.
This board essentially enables the CNC controller to run the motion control logic, interface with the machine’s hardware, and respond to operator commands.
