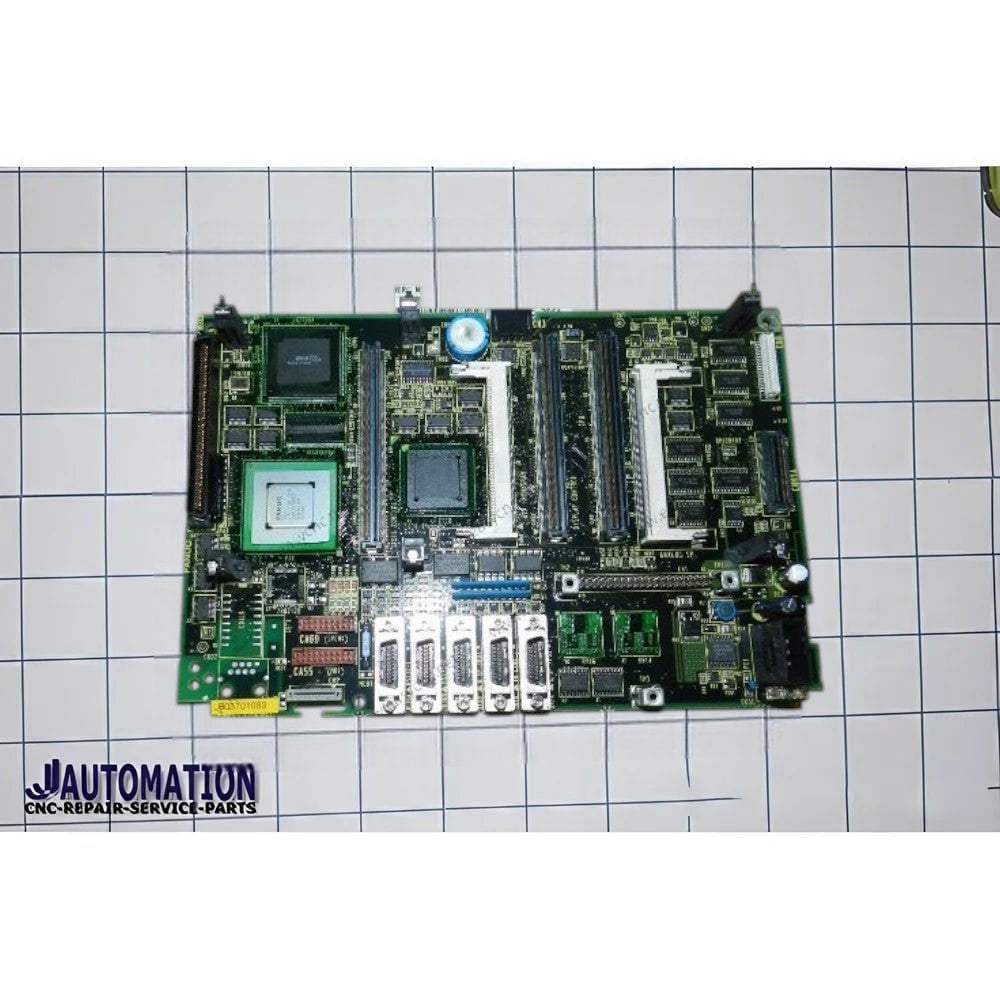

📌 FANUC A20B-8101-0285 — Part Description
**** (and similar FANUC A20B-8101 series boards) are core CNC controller PCBs — and A20B-8101-0285 is one such main logic board used in FANUC CNC systems.
🧠 What It Is
-
Part Number: A20B-8101-0285
-
Manufacturer: FANUC
-
Category: Main Printed Circuit Board (Main PCB) for CNC control
-
Product Family: FANUC A20B-8101 series PCBs
-
Role: Central logic/control board in FANUC CNC controllers (especially the 0i-Mate / 0i-C family) — sometimes described as the main PCB / master board for certain controller variants.
🧩 Function & Application
-
Core Board: Acts as the main processing and interface board in the CNC controller, coordinating communication across servo interfaces, MDI, serial ports, I/O links, and power rails.
-
Used With: Typically found in FANUC Series 0i-Mate / 0i-C controllers used on milling machines, machining centers, lathes and similar CNC equipment.
-
Industrial Control Backbone: It’s a key board that interfaces with servo drives (FSSB), operator panels (MDI), serial communications (RS-232), analog outputs and machine I/O links.
-
Discontinued / Spare Part: Often listed as discontinued by FANUC but widely available as surplus, refurbished, or repaired.
⚙️ Technical Notes
-
Part Type: PC board/main controller board
-
Typical Fit: In the main cabinet of the CNC controller (often in 0i-Mate-TC / 0i-C configurations)
-
Connectors Handled:
-
FSSB servo bus interface
-
MDI keypad interface
-
RS-232 ports
-
I/O link connections
-
Analog outputs / coder inputs
-
