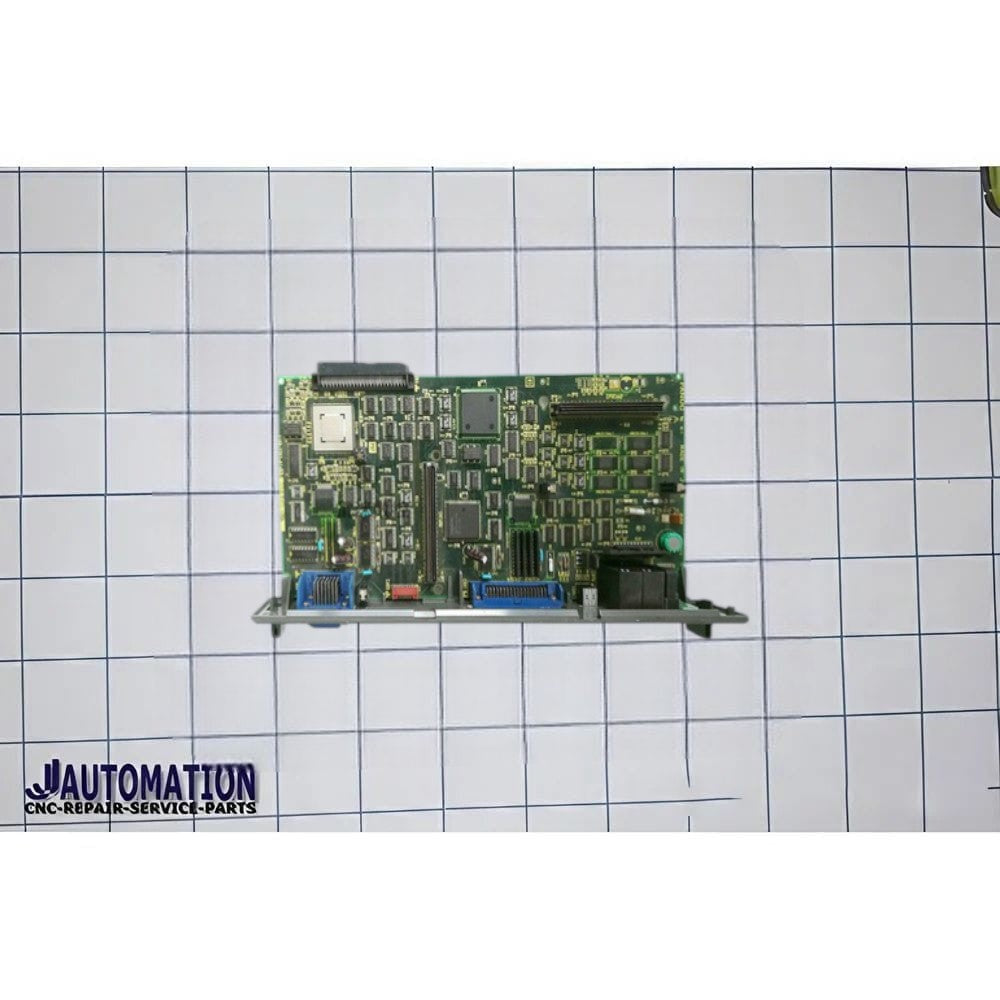

📌 A16B-2203-0740 — 4-Axis Loader Controller PCB
The FANUC A16B-2203-0740 is a loader control board used in CNC and automation systems. Specifically, it’s designed to manage and coordinate 4-axis motion for a loader mechanism — often on machines that incorporate an automatic loader/unloader or similar multi-axis handling device.
🧠 What It Does
-
Loader Control Module: This PCB provides dedicated control logic for up to four axes of movement in a loader system. It helps synchronize motion, position feedback, and coordinated commands between the CNC controller and the loader mechanics.
-
Dedicated CPU/Processor: Unlike standard axis cards that rely solely on the main controller CPU, this board often includes its own processor to handle complex loader coordination.
-
Interface with I/O: It exchanges signals with motion feedback, servos/drives, and the main CNC controller using buses like the I/O link or dedicated interfaces within the controller cabinet.
-
Application: Common in FANUC i-Series (e.g., 16i, 18i) systems that are fitted with automated loader/unloader equipment; ensures smooth and precise motion for loading operations.
⚙️ Technical Context
-
This board belongs to the A16B-2203 series of FANUC PCBs — a group of specialized control, I/O, and motion interfacing boards used in CNC and automated machine tool systems.
-
It’s typically optional — fitted when the machine has additional motion axes beyond the normal CNC axes (e.g., load/unload, robotic handling).
🛠️ Typical Usage
-
Automatic loaders/unloaders on CNC machining centers
-
Servo-controlled handling functions with multiple coordinated axes
-
Machines with 4 additional motion axes separate from the main CNC axes
