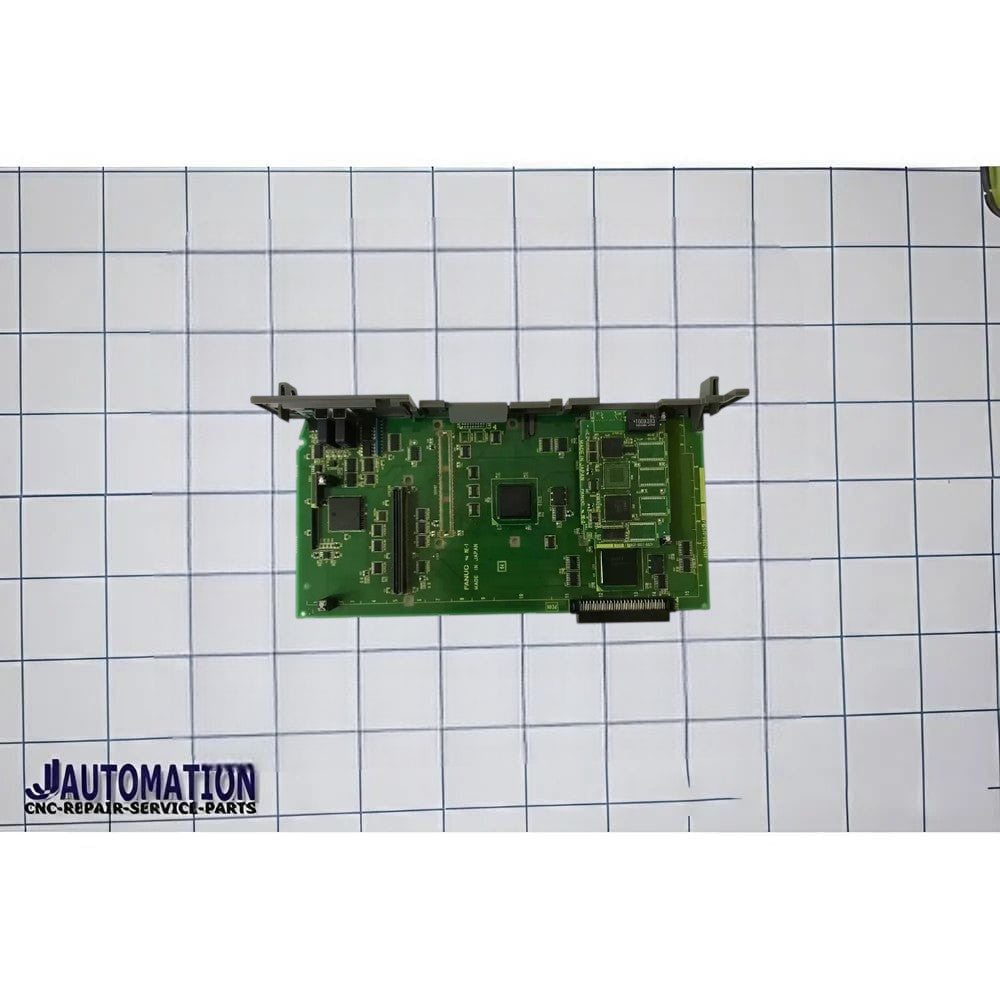

Fanuc Option PCB for 16i/ 18i/ 21i A16B-2203-0751

🧠 FANUC A16B-2203-0751 — Sub-CPU PCB (Control Board)

The FANUC A16B-2203-0751 is a sub-CPU printed circuit board (PCB) used in FANUC controller systems. It’s part of the A16B-2203 series of circuit boards that are installed inside CNC or automation controllers to handle processing and control logic tasks within the system.

🔌 Key Facts

• 📌 Part: A16B-2203-0751

• 🧠 Category: Sub-CPU PCB / Control Board — a secondary processor board used in FANUC controllers.

• 📋 Function: The board performs sub-control CPU functions, assisting the main CPU in processing specific tasks or managing auxiliary control logic in the system. This is not a main CPU board but works alongside other control boards.

• 🛠 Requirements: It often requires programming, meaning that when this board is installed or replaced, you may need to reload sub-parameters and control programs for proper operation.

• ⚠️ Usage: Typically found in industrial CNC systems where distributed processing or additional CPU support is implemented — for example in complex control tasks or when extra logic capacity is needed.

• 🔄 Availability: Often supplied new or refurbished by parts vendors; sometimes programming or parameter loading is a separate service.
