Description

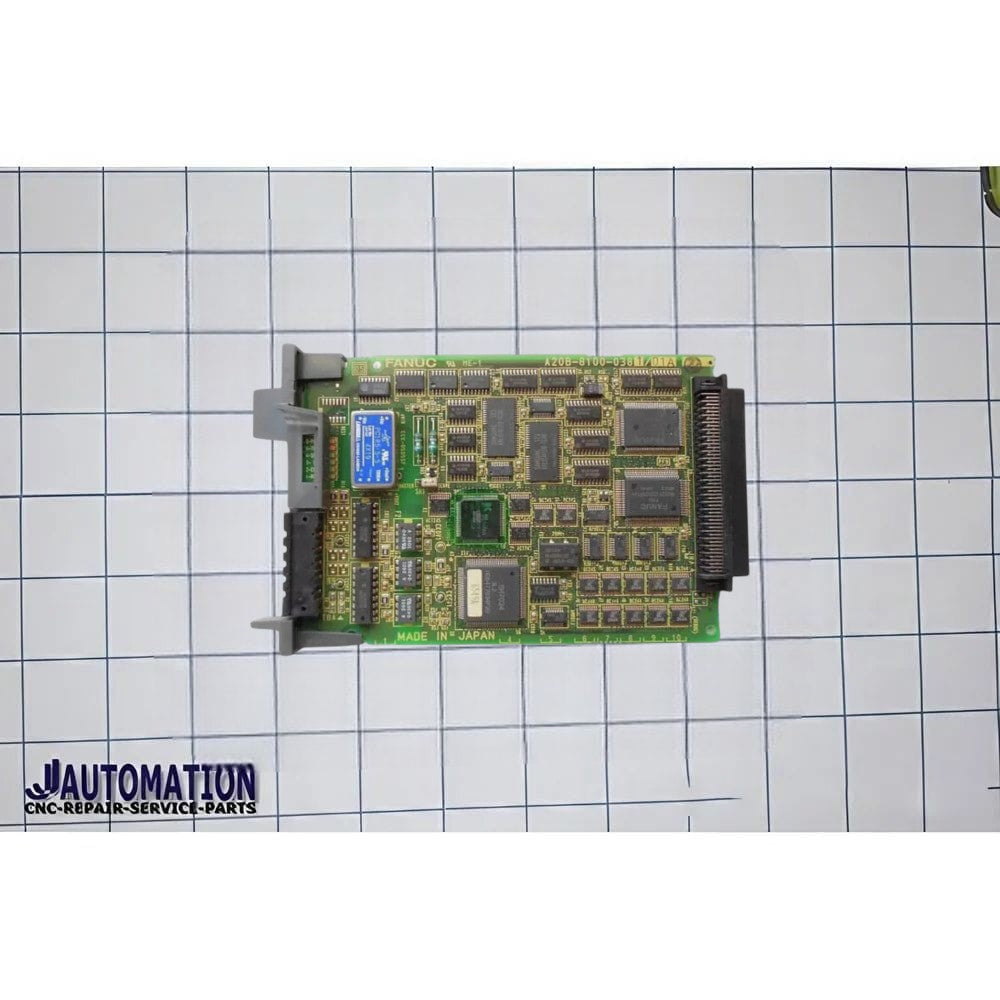

The A20B‑8100‑0381 is a communication/logic interface printed circuit board (PCB) used in industrial FANUC CNC controller systems — and specifically it’s part of the A20B‑8100 series of controller PCBs that handle I/O link and data communications inside the controller.
🔌 What This Board Does
-
I/O LINK‑II Save B Board: It’s designated as an I/O Link‑II Save B PCB, meaning it’s used in conjunction with FANUC’s I/O LINK‑II system (a distributed I/O communications protocol).
-
Role: Works as part of the I/O communications infrastructure, typically in I/O Link‑II master/slave configurations — for example in modular CNC controls that use an I/O Link‑II bus to communicate between the controller and auxiliary I/O or junction interface hardware.
-
In this system, “Save B” indicates the board’s position or role (often referenced with other I/O Link‑II cards like A20B‑8100‑0380).
-
-
Connection: It plugs into the controller’s electronics rack/backplane and interfaces with other PCBs, carrying I/O signals and link data within the control architecture.
🛠️ Practical Context
-
This board doesn’t perform core CNC processing (that’s done by CPU boards), nor motion control (servo/axis boards), but enables advanced I/O communications for integrated systems.
-
If it fails, the controller might show errors related to I/O link communication or distributed input/output issues, especially where I/O Link‑II networks are used.
-
Core exchange may be required when purchasing replacements and available repair/refurbishment services vary by supplier.
