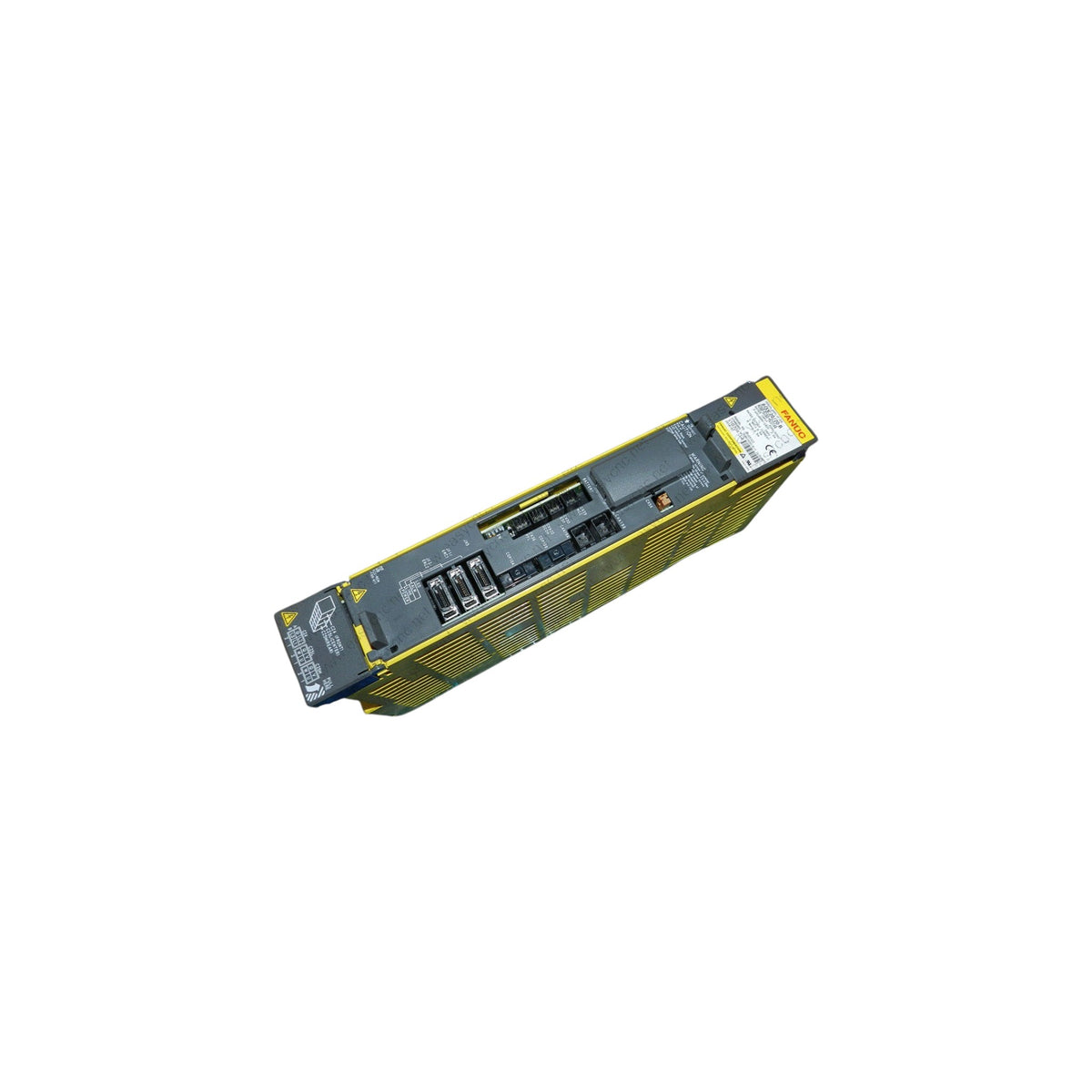

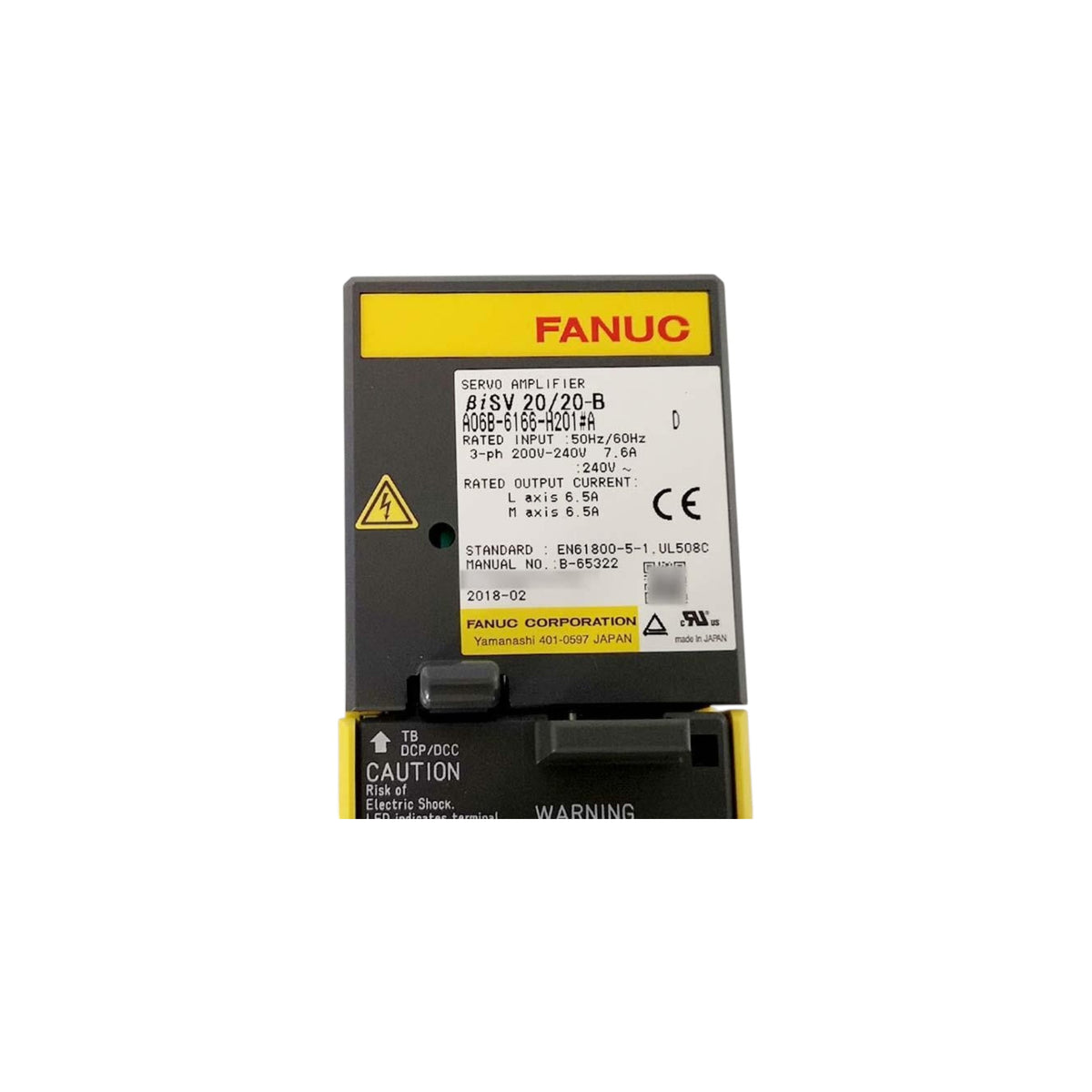

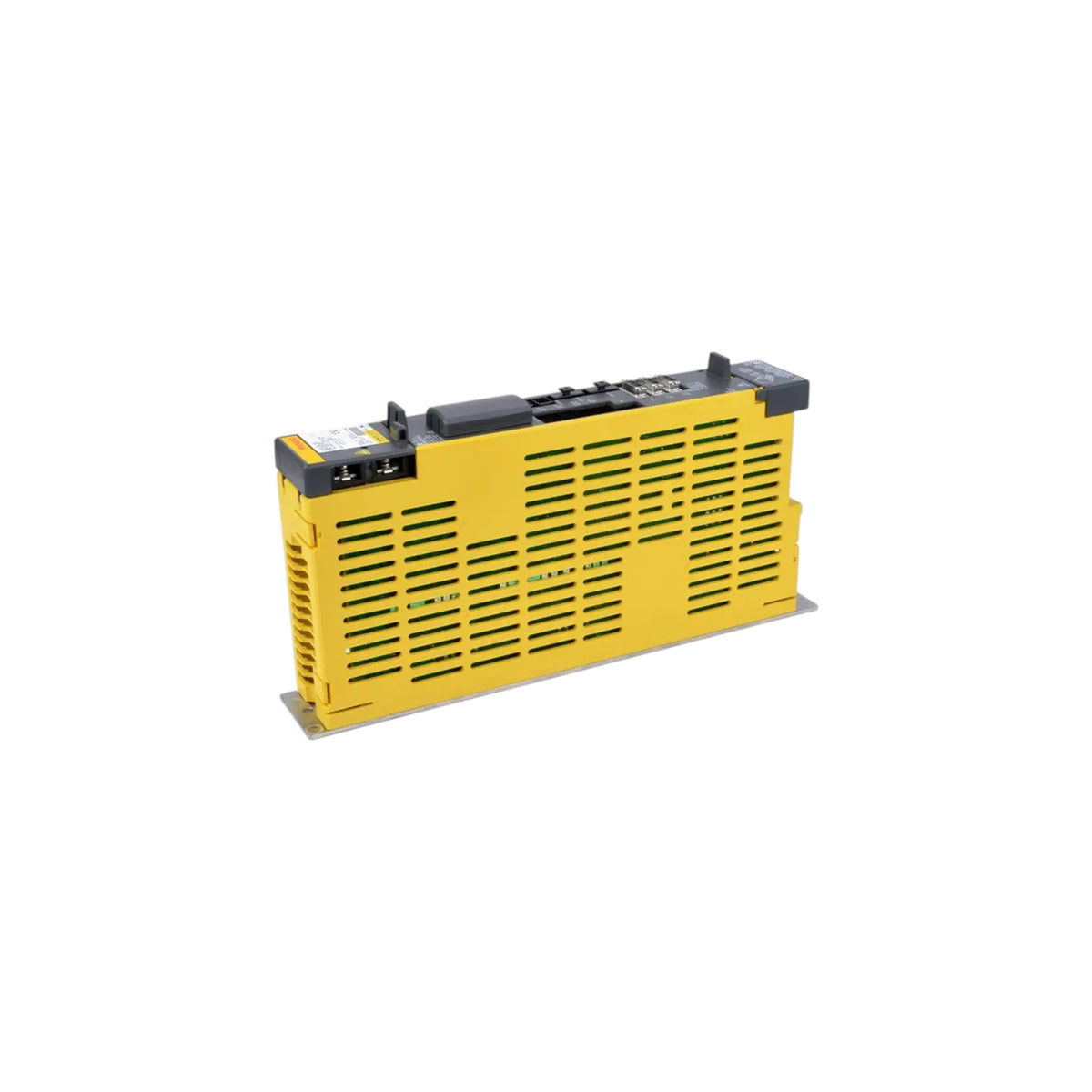

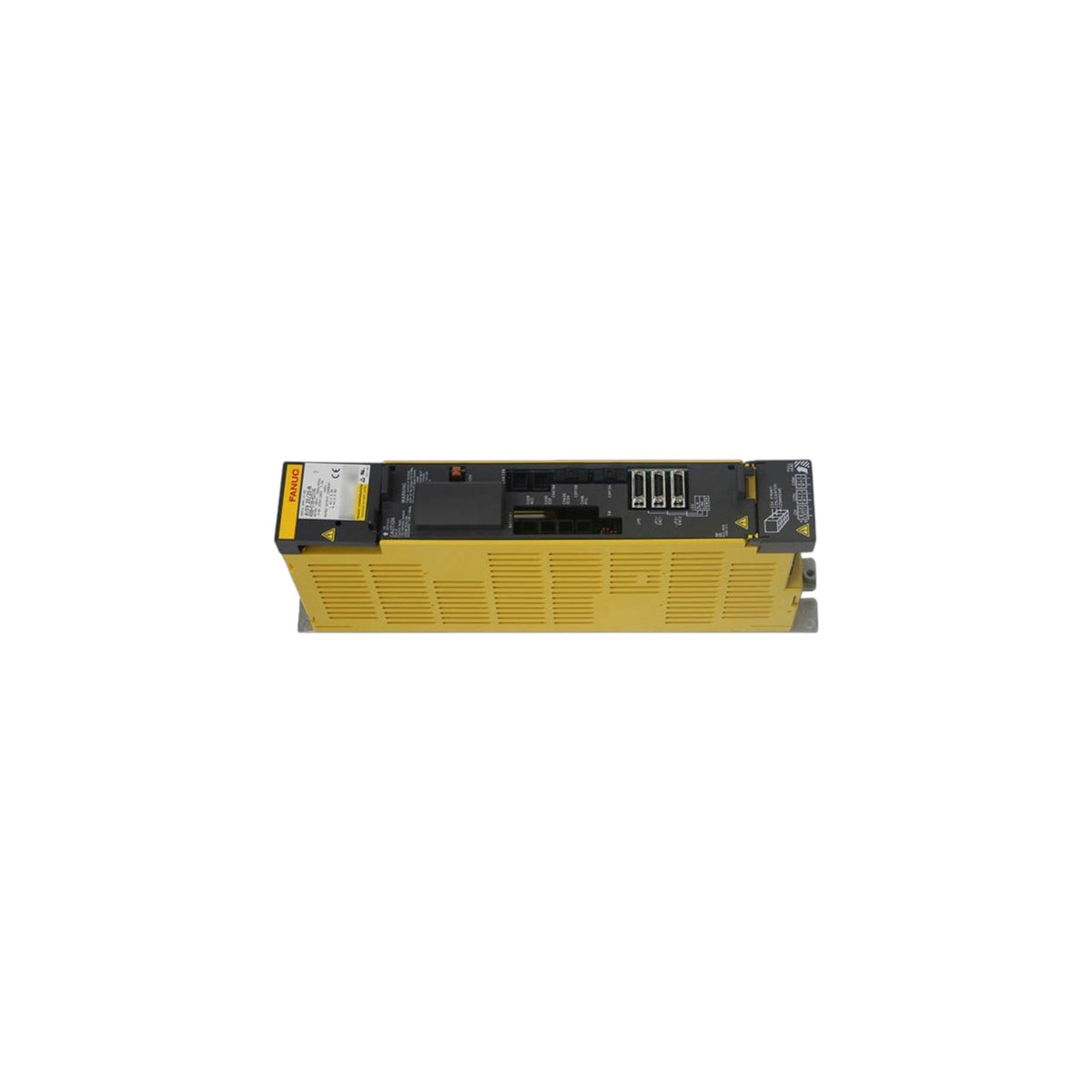

Fanuc Servo Amplifier βiSV20/20-B A06B-6166-H201#A

The Fanuc βiSV20/20-B servo amplifier (A06B-6166-H201#A) is a 2-axis 200 V βi-B series servo drive for Fanuc CNC systems, driving two βi-B servo motors from one compact unit. Available new and tested used/refurbished with warranty.

• Model: βiSV20/20-B — Ordering number: A06B-6166-H201#A
• Applicable CNC: Series 30i/31i/32i/35i-B, Power Motion i-A, Series 0i-F
• Control PCB: A20B-2101-0881 — Power PCB: A16B-3200-0644
• Main input: 200–240 VAC 3-phase, 7.6 Arms / 2.7 kVA
• Rated output current: 6.5 Arms per axis (L/M); maximum current 20 Ap per axis; output frequency 0–550 Hz
• Servo HRV2 / HRV3 control; control power 24 VDC ±10%, 1.0 A max
• Sine-wave PWM control with IGBT; dynamic brake built in
• Regenerative discharge: built-in resistor 16 Ω, 100 W (no cooling wind); optional separated resistors A06B-6130-H404/H405, A06B-6089-H500
• Separate AC line filter and battery required
• Dimensions: 60 × 380 × 172 mm; mass 2.1 kg; ambient 0–55 °C
• Note: Smart troubleshooting / preventive maintenance of the αi-B series not supported
• Condition options: New / Used / Refurbished — tested before dispatch
