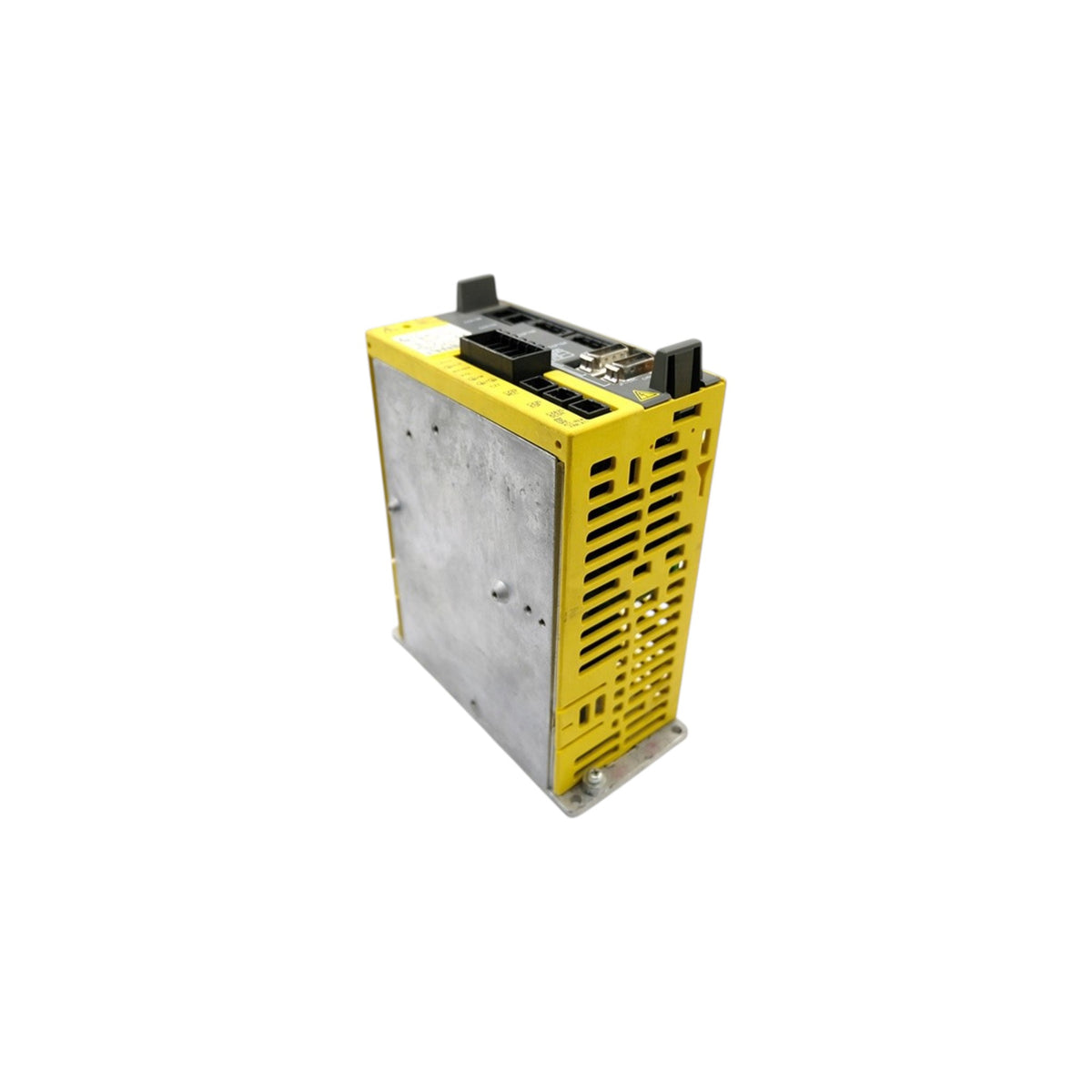

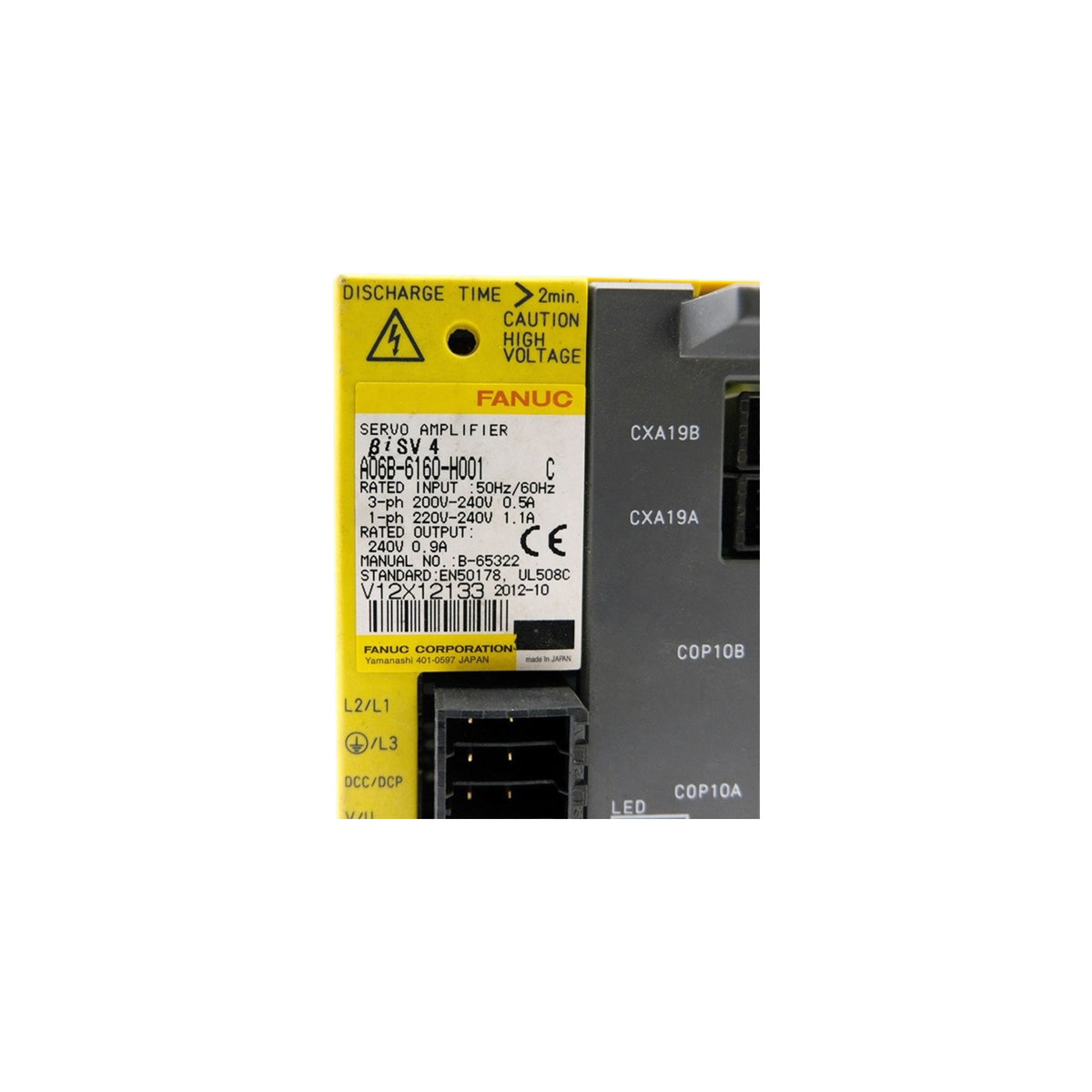

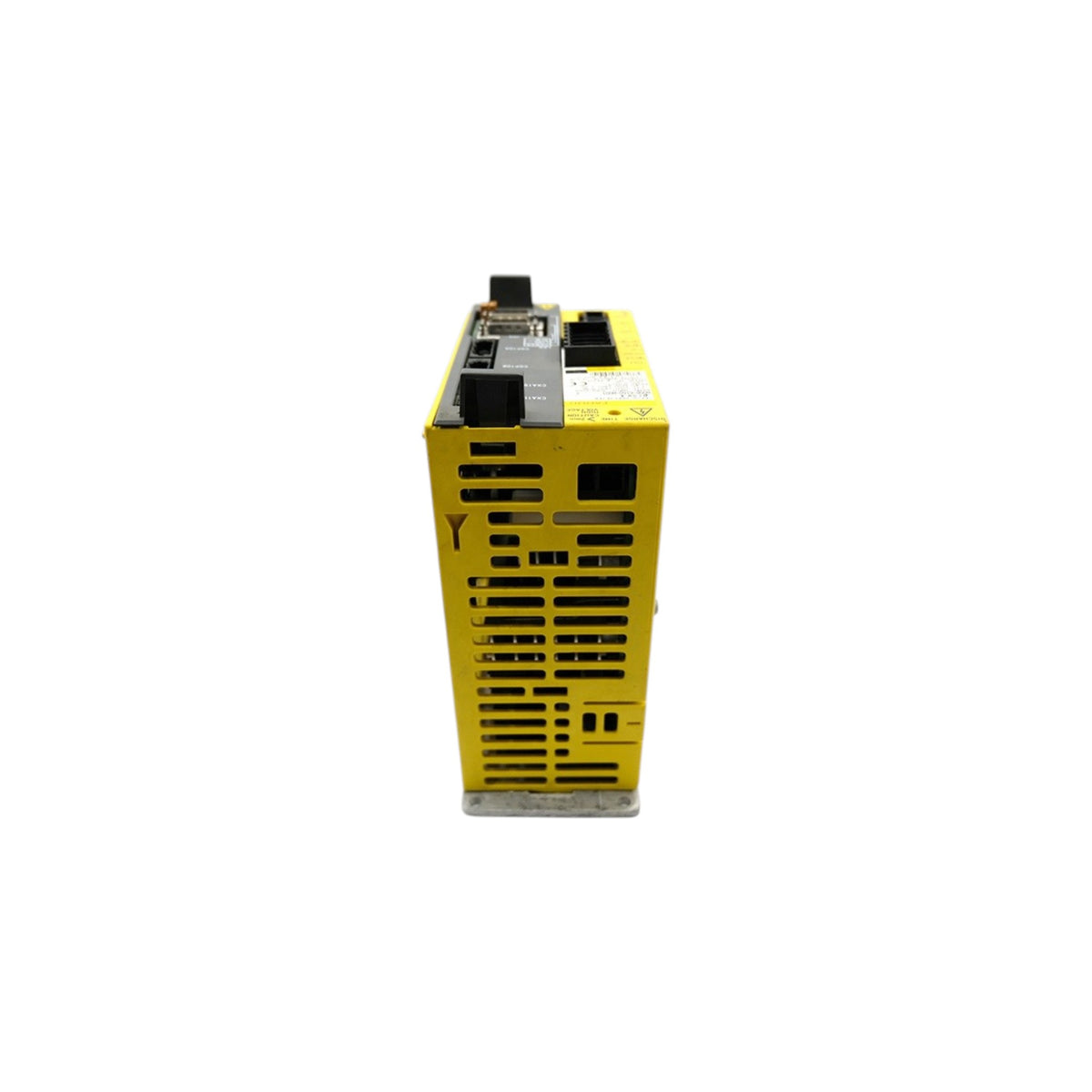

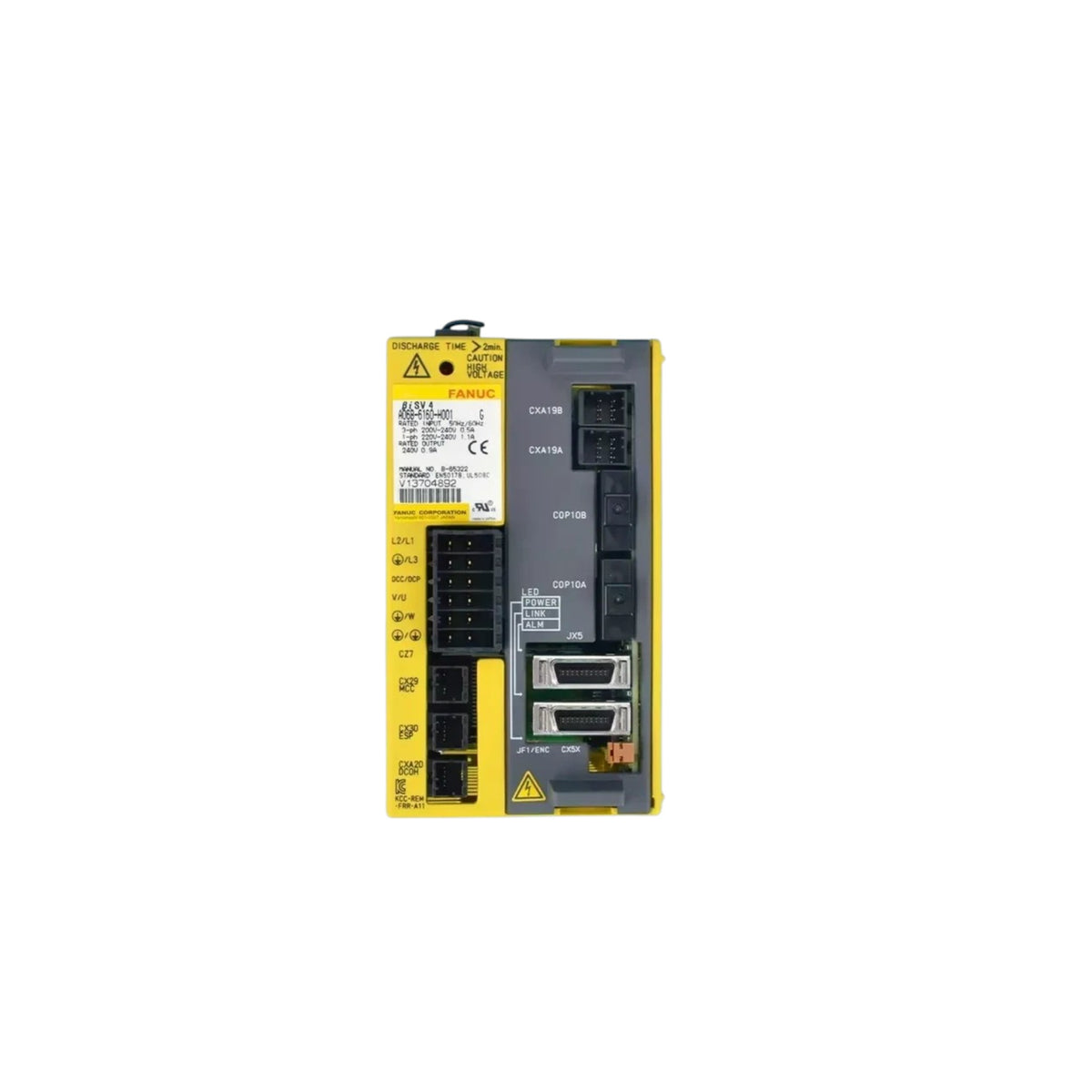

The Fanuc βiSV4-B servo amplifier (A06B-6160-H001) is a 1-axis 200 V βi-B series servo drive for Fanuc CNC systems, with sine-wave PWM IGBT control and built-in dynamic brake. Available new and tested used/refurbished with warranty.
- Model: βiSV4-B — Ordering number: A06B-6160-H001
- Applicable CNC: Series 30i/31i/32i/35i-B, Power Motion i-A, Series 0i-F
- Control PCB: A20B-2102-0081 — Power PCB: A20B-2101-0090
- Main input: 200–240 VAC 3-phase, 0.5 Arms / 0.2 kVA (also single-phase AC 220–240 V, 1.1 Arms / 0.3 kVA)
- Rated output current: 0.9 Arms; maximum current 4 Ap; output frequency 0–550 Hz
- Control power: 24 VDC ±10%, 0.9 A max
- Sine-wave PWM control with IGBT; dynamic brake built in
- Regenerative discharge: separated resistor 30 Ω — 20 W (A06B-6130-H401) or 100 W (A06B-6130-H402)
- Separate AC line filter and battery required
- Dimensions: 75 × 150 × 172 mm; mass 1.2 kg; ambient 0–55 °C
- Note: Smart troubleshooting / preventive maintenance of the αi-B series not supported
- Condition options: New / Used / Refurbished — tested before dispatch
