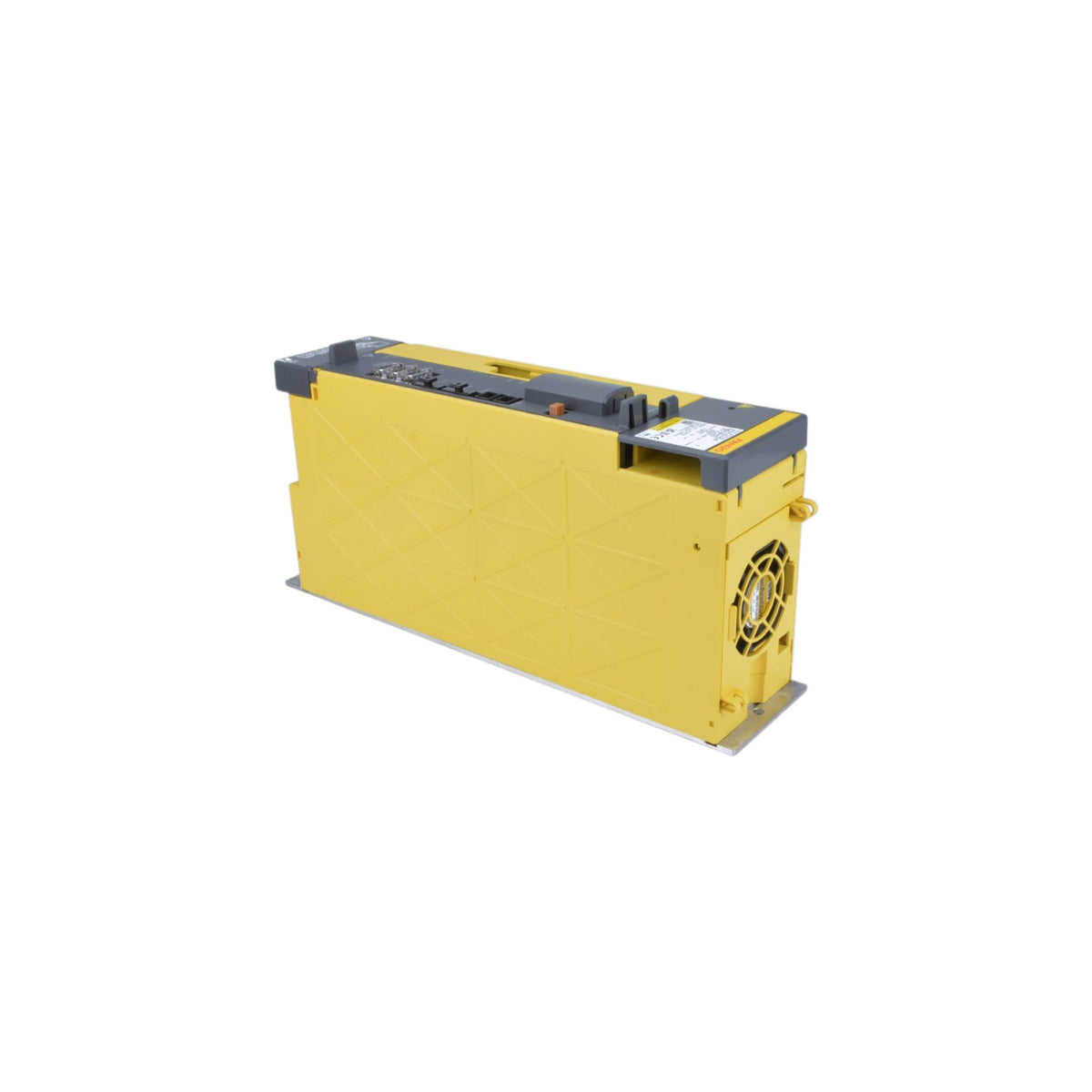

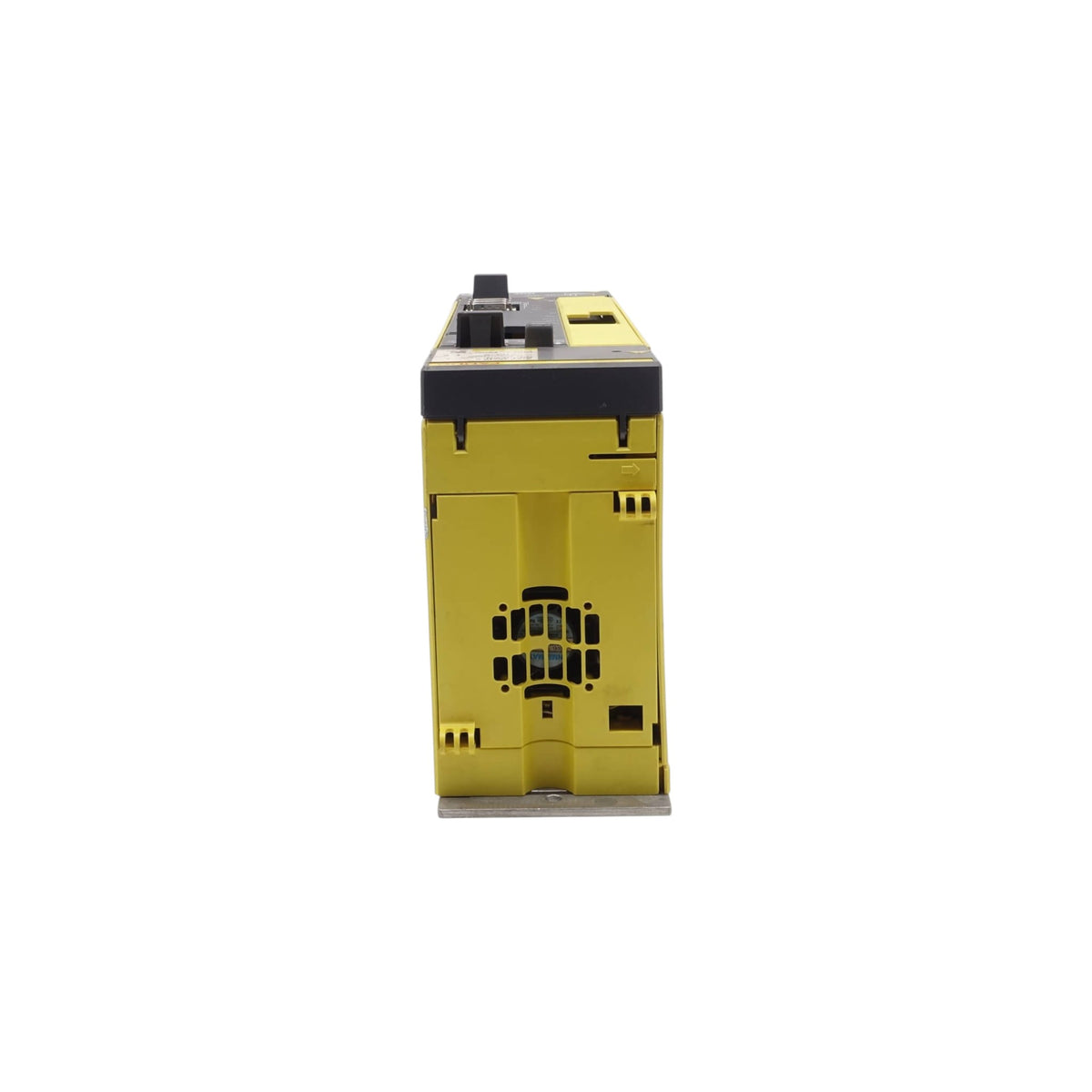

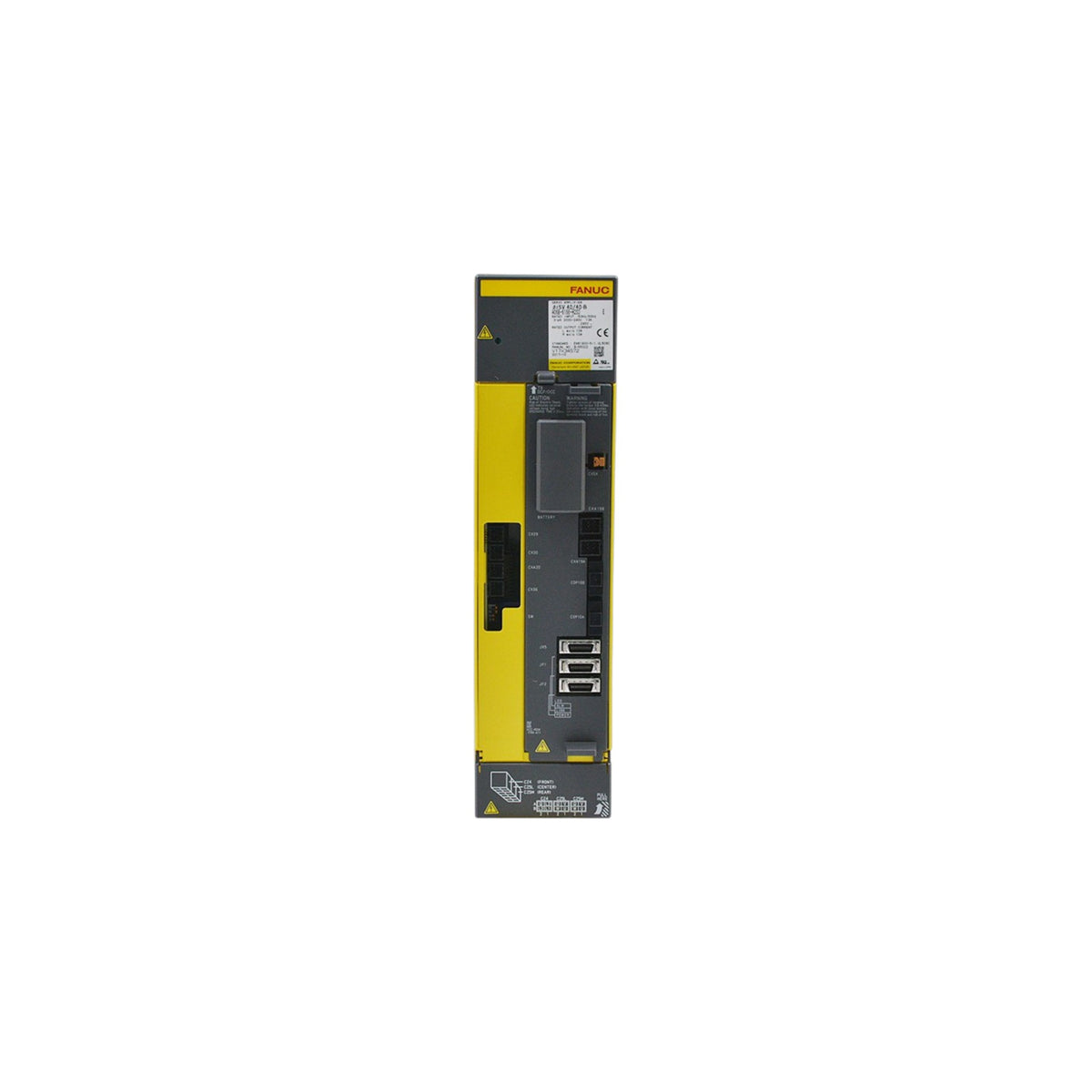

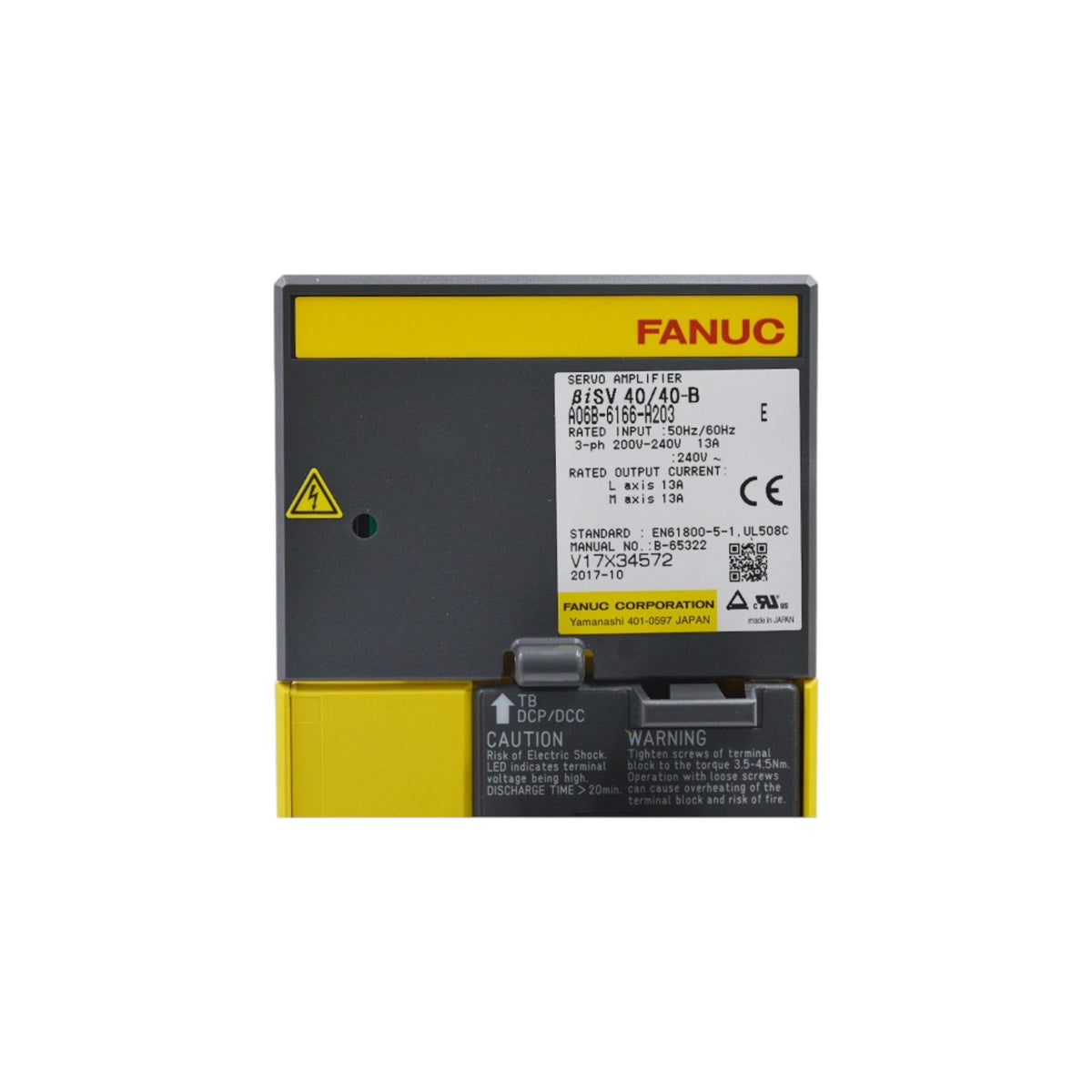

Fanuc Servo Amplifier βiSV40/40-B A06B-6166-H203

The Fanuc βiSV40/40-B servo amplifier (A06B-6166-H203) is a 2-axis 200 V βi-B series servo drive for Fanuc CNC systems, driving two βi-B servo motors from one compact unit. Available new and tested used/refurbished with warranty.

• Model: βiSV40/40-B — Ordering number: A06B-6166-H203
• Applicable CNC: Series 30i/31i/32i/35i-B, Power Motion i-A, Series 0i-F
• Control PCB: A20B-2101-0881 — Power PCB: A16B-3200-0643
• Main input: 200–240 VAC 3-phase, 13 Arms / 4.8 kVA
• Rated output current: 13 Arms per axis (L/M); maximum current 40 Ap per axis; output frequency 0–550 Hz
• Servo HRV2 / HRV3 control; control power 24 VDC ±10%, 1.0 A max
• Sine-wave PWM control with IGBT; dynamic brake built in
• Regenerative discharge: built-in resistor 16 Ω — 200 W (no cooling wind) / 400 W (2 m/s wind); optional separated resistors A06B-6130-H404/H405, A06B-6089-H500
• Separate AC line filter and battery required
• Dimensions: 90 × 380 × 172 mm; mass 3.9 kg; ambient 0–55 °C
• Note: Smart troubleshooting / preventive maintenance of the αi-B series not supported
• Condition options: New / Used / Refurbished — tested before dispatch
