Description

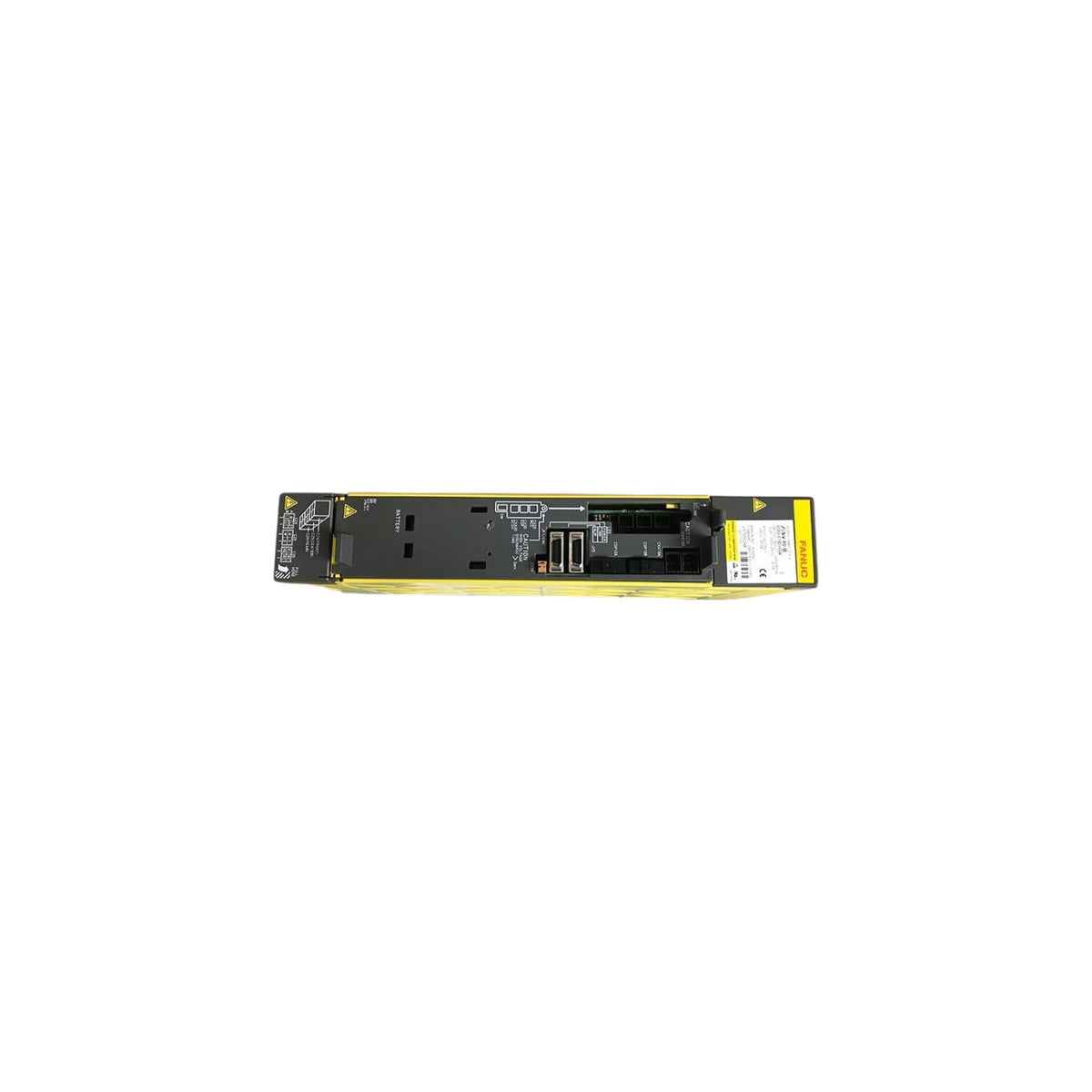

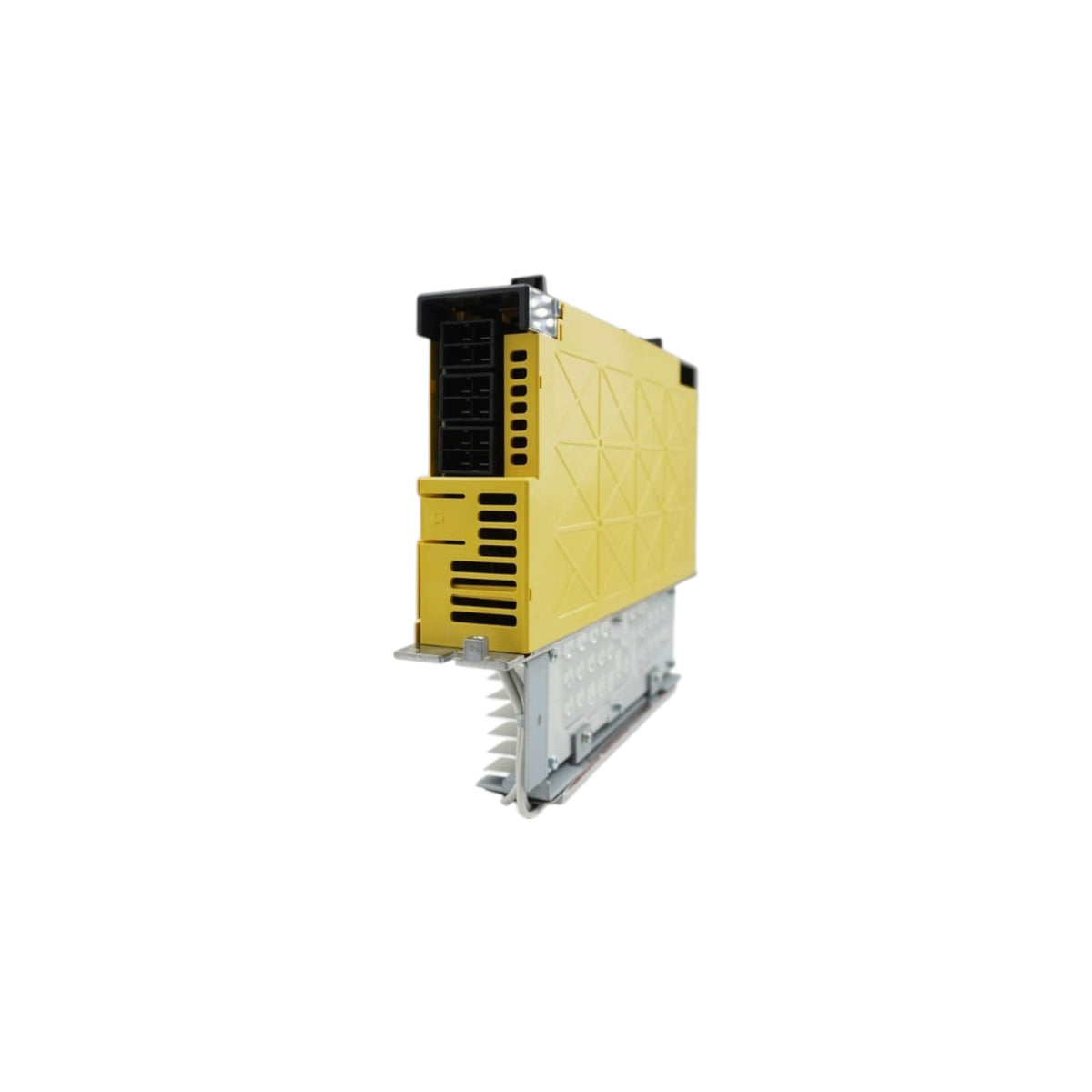

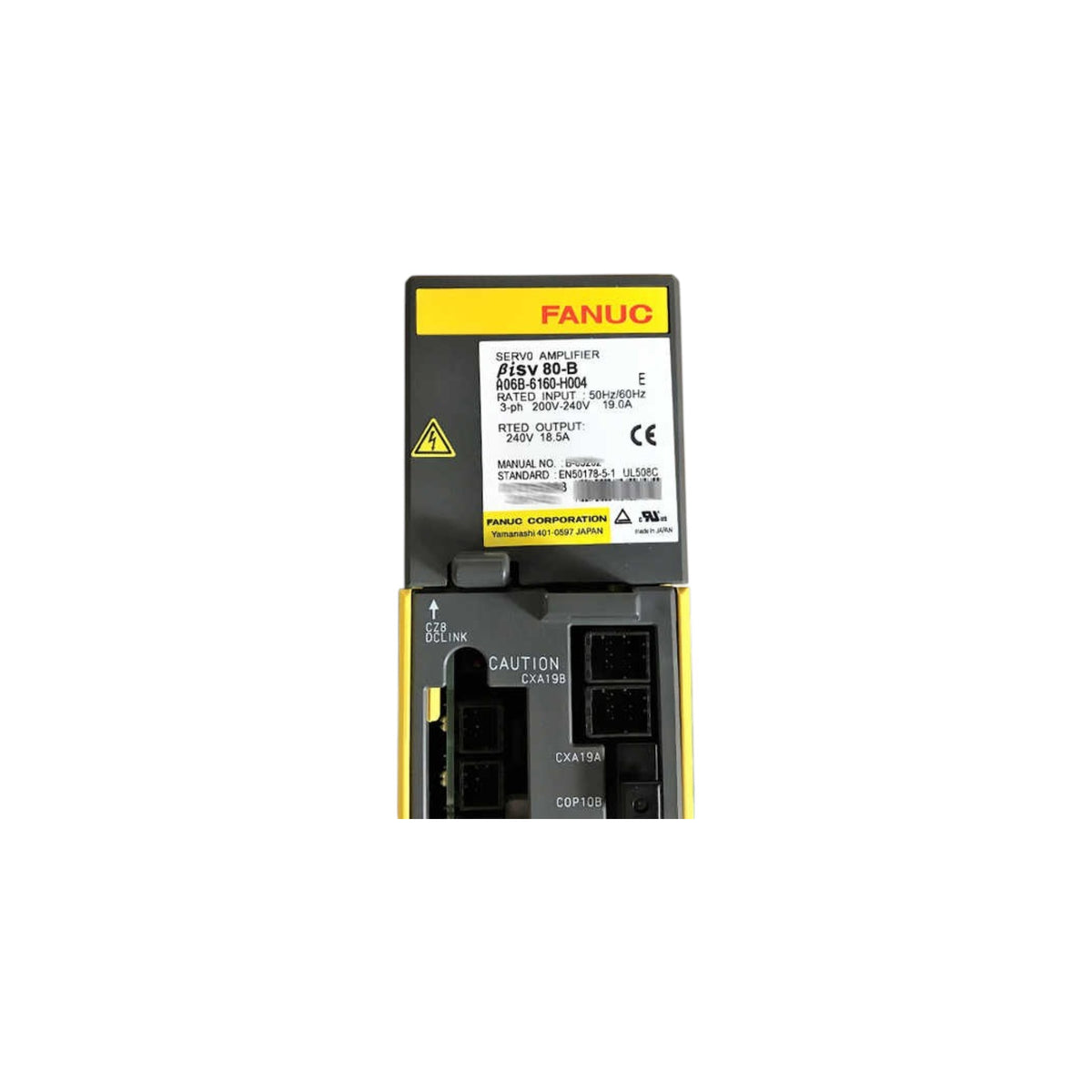

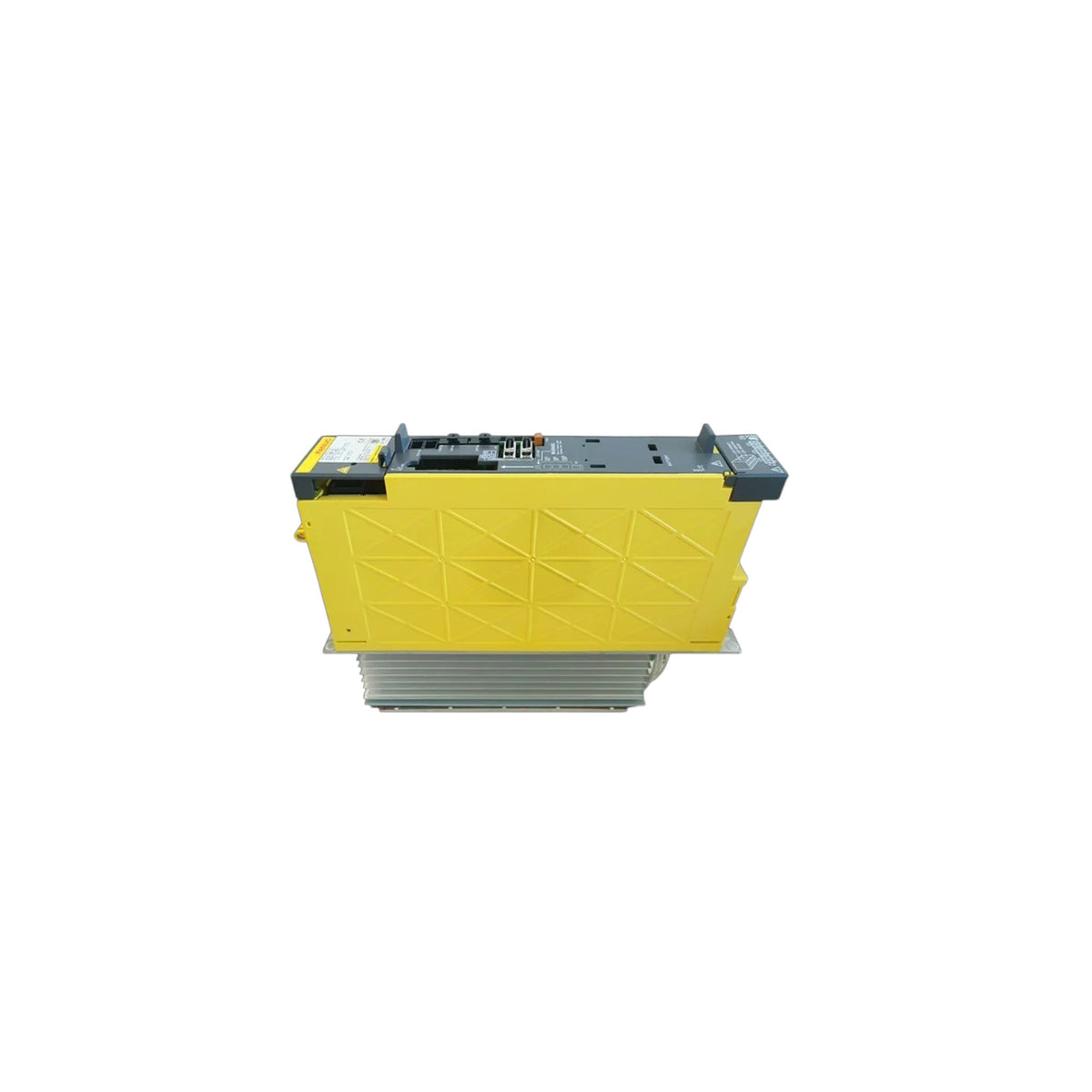

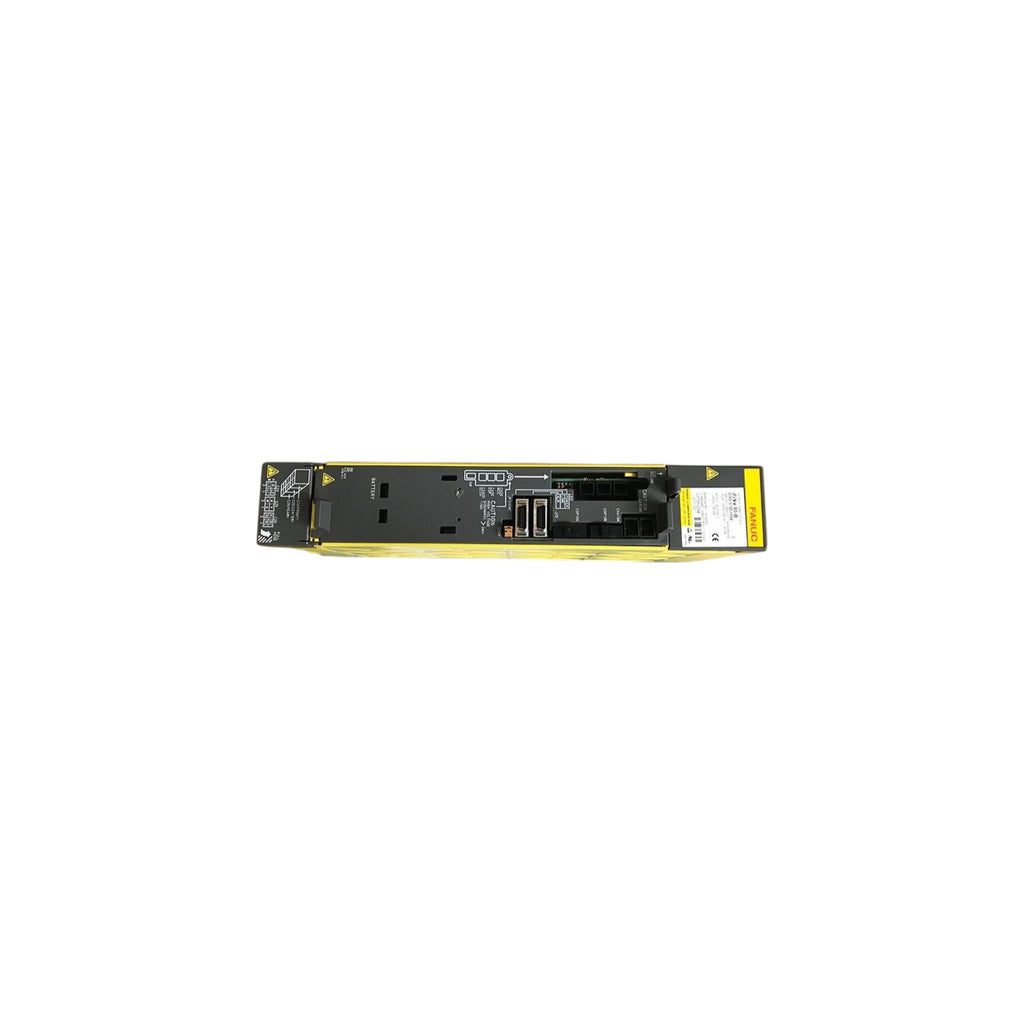

The Fanuc βiSV80-B servo amplifier (A06B-6160-H004) is a 1-axis 200 V βi-B series servo drive for Fanuc CNC systems, with sine-wave PWM IGBT control and built-in dynamic brake. Available new and tested used/refurbished with warranty.
- Model: βiSV80-B — Ordering number: A06B-6160-H004
- Applicable CNC: Series 30i/31i/32i/35i-B, Power Motion i-A, Series 0i-F
- Control PCB: A20B-2102-0081 — Power PCB: A16B-3200-0513
- Main input: 200–240 VAC 3-phase, 19.0 Arms / 6.5 kVA
- Rated output current: 18.5 Arms; maximum current 80 Ap; output frequency 0–550 Hz
- Control power: 24 VDC ±10%, 0.9 A max
- Sine-wave PWM control with IGBT; dynamic brake built in
- Regenerative discharge: built-in resistor 16 Ω — 50 W (no cooling wind) / 130 W (2 m/s wind); optional separated resistor 16 Ω 200 W–1200 W (A06B-6089-H500/H713/H714)
- Separate AC line filter and battery required
- Dimensions: 60 × 380 × 272 mm, fin 60 × 380 × 100 mm (max); mass 3.9 kg; ambient 0–55 °C
- Note: Smart troubleshooting / preventive maintenance of the αi-B series not supported
- Condition options: New / Used / Refurbished — tested before dispatch
