Description

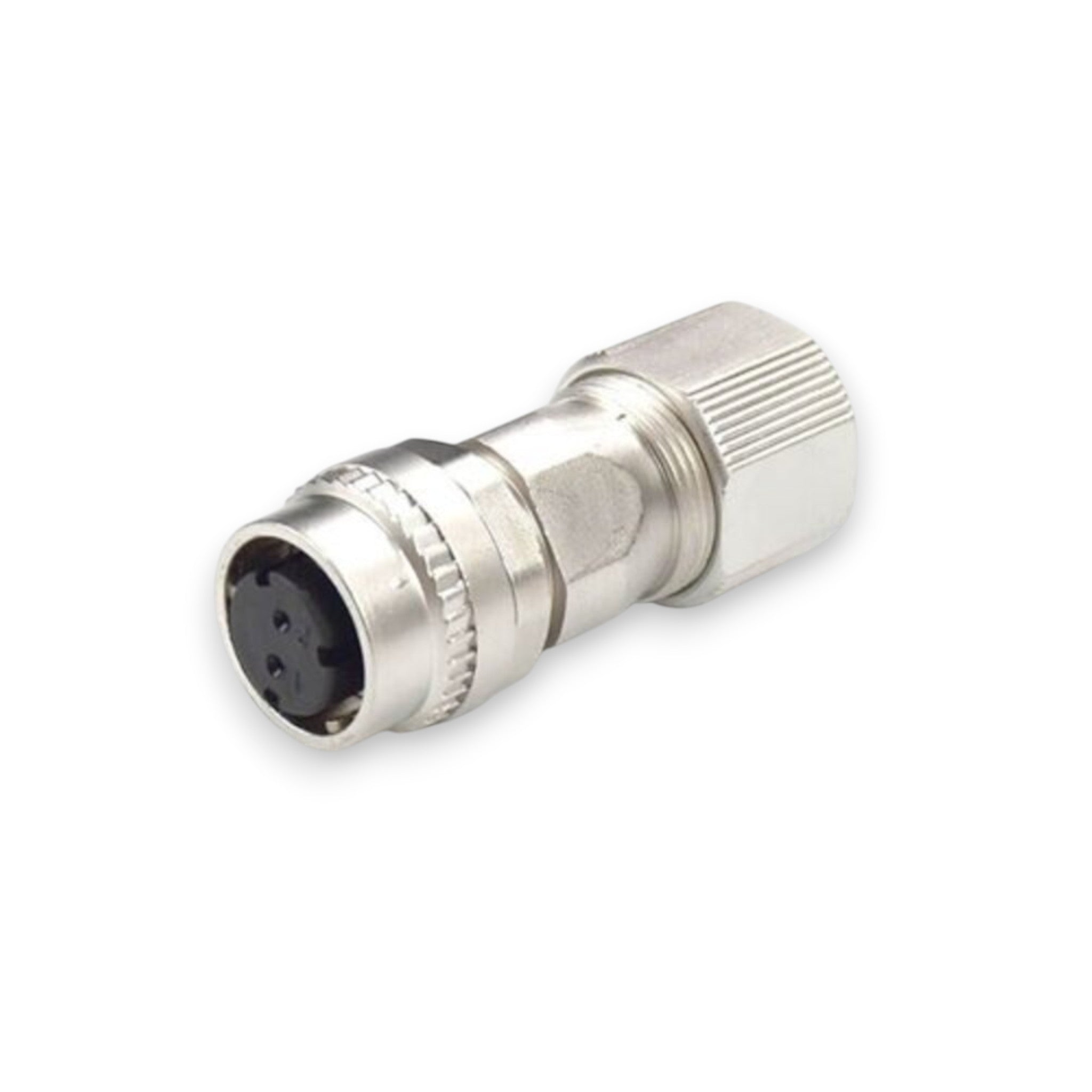

The Mitsubishi MR-BKCNS1 brake connector set is the motor-side power connector for the electromagnetic brake leads on Mitsubishi servo motors with brake — used with HG-SR, HG-JR and related motor series driven by MR-J3 / MR-J4 amplifiers (the brake circuit uses this dedicated 2-pin connector separate from the main power plug). At JJ Automation it is available new, checked before dispatch and backed by warranty.
When you need it
Brake connector damaged during motor removal, corroded or coolant-flooded pins causing the brake not to release (axis won't move, brake buzzing), making up a new brake cable for a replacement motor, or lost hardware after maintenance. A failing brake connection on a vertical axis shows up as Z-axis overload or excess-error alarms — replace the connector before condemning the motor.
Details
| Part Number | MR-BKCNS1 |
| Type | Servo Motor Brake Connector Set (straight; angled version: MR-BKCNS1A) |
| Used With | Mitsubishi HG-SR / HG-JR series servo motors with electromagnetic brake (MR-J3 / MR-J4 systems) |
| Construction | 2-pin brake power connector — plug, contacts and backshell, cable-side assembly |
| Brand | Mitsubishi Electric |
| Condition | New |
🔧 Wiring a brake circuit? A brake that never releases mimics serious servo faults — see our Mitsubishi alarm list for the related codes.
