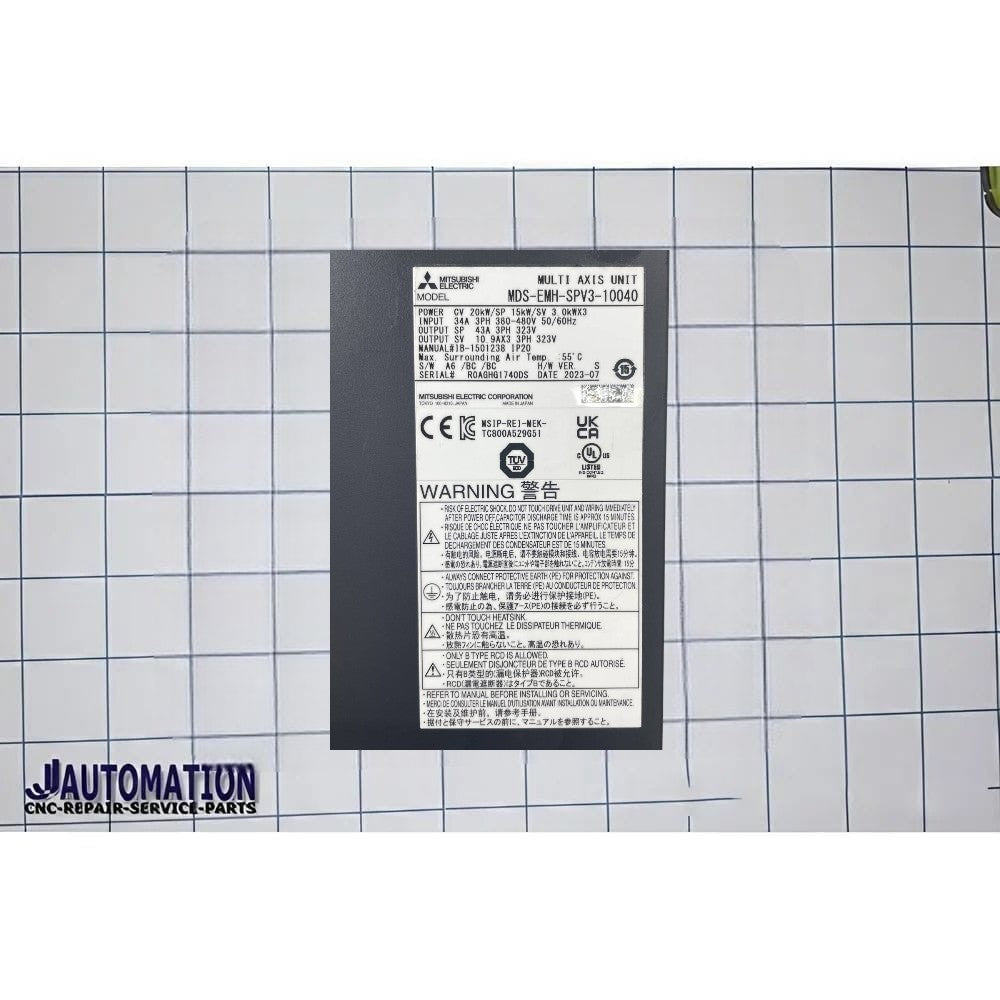

Mitsubishi M80 Multi-hybrid Drive Unit MDS-EM-SPV3-10040

Mitsubishi MDS-EM-SPV3-10040 is a multi-axis hybrid servo/spindle drive unit used in Mitsubishi CNC machine systems.

Description

• Manufacturer: Mitsubishi Electric
• Series: MDS-EM Series
• Model: SPV3-10040
• Type: CNC multi-hybrid drive / servo-spindle amplifier
• Application: Industrial CNC machines, machining centers, lathes, milling machines, and automated motion-control systems.

Main Function

This drive unit controls:

• up to 3 servo axes
• plus 1 spindle motor

It integrates servo and spindle control into a single compact CNC drive module for Mitsubishi CNC systems.

Key Technical Features

• 200–240 VAC input
• Multi-axis integrated architecture
• Supports Mitsubishi AC servo motors and spindle motors
• High-speed CNC motion control
• Regenerative control support
• Compact cabinet installation design
• Designed for Mitsubishi M700/M70 CNC platforms and related systems

Model Code Meaning

MDS-EM-SPV3-10040

• MDS = Mitsubishi Drive System
• EM = Energy-efficient multi-drive series
• SPV3 = 3-axis servo + spindle hybrid type
• 10040 = current/output class designation (100A spindle / 40A servo class)

Typical Uses

• CNC machining centers
• Turning centers
• Milling machines
• Automatic production equipment
• Robotics and precision motion systems
