Description

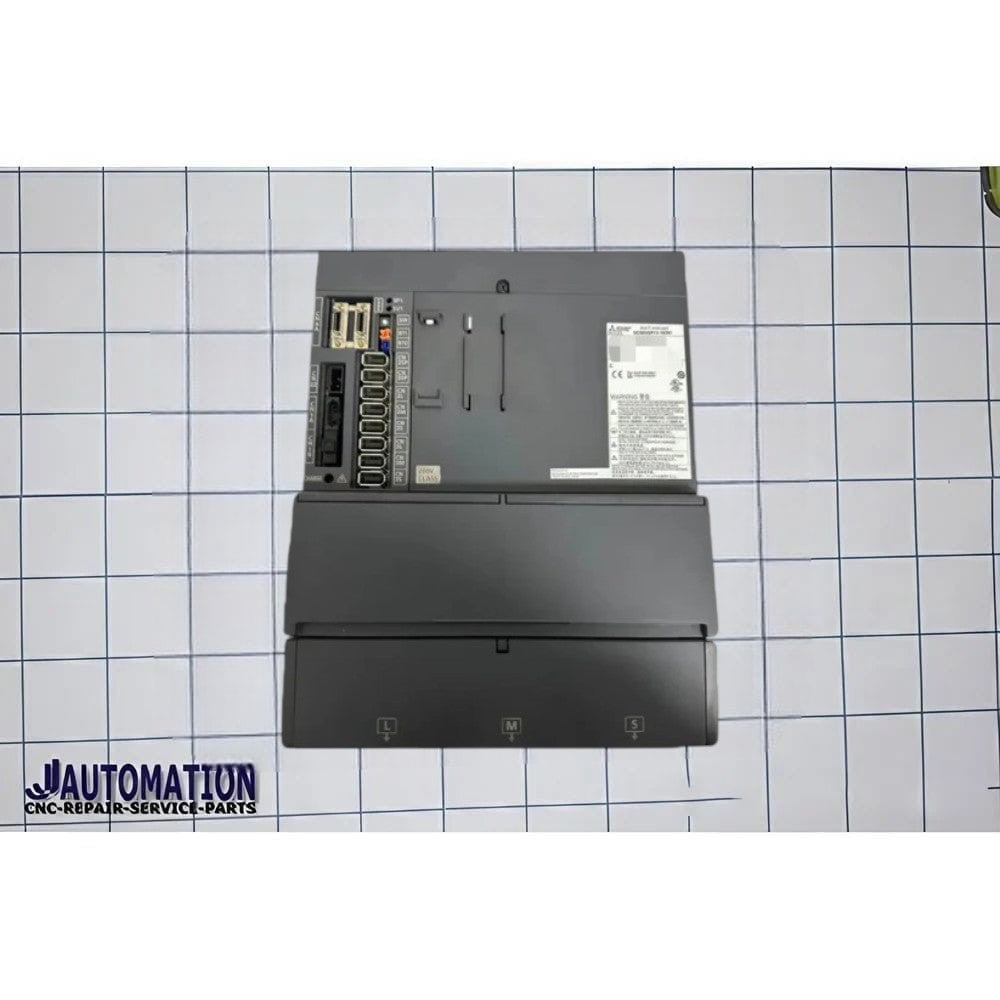

Mitsubishi Electric multi-axis hybrid AC servo/spindle drive amplifier designed for CNC machine tools and industrial automation systems.
Product Description
- Manufacturer: Mitsubishi Electric
- Series: MDS-EM Series
- Model: MDS-EM-SPV3-16080
- Type: Multi-axis hybrid servo + spindle drive unit
- Application: CNC machining centers, turning centers, milling machines, and precision automation systems.
Main Function
This unit integrates:
- 3 servo axes
- 1 spindle axis
- shared converter/power circuitry
into one compact CNC drive module for Mitsubishi CNC platforms.
Model Code Meaning
MDS-EM-SPV3-16080
- MDS = Mitsubishi Drive System
- EM = Energy-efficient multi-drive series
- SPV3 = 3-axis servo + spindle hybrid type
-
16080 = output/current class designation:
- 160A spindle class
- 3 × 80A servo class
Key Features
- 3-phase 200–230 VAC operation
- Integrated spindle and servo control
- Built-in dynamic braking/regenerative control
- Compact cabinet-mount design
- High-speed CNC motion control
- Forced-air cooling
- Compatible with Mitsubishi M70/M700 CNC systems
Technical Information
Typical specifications include:
- Supply voltage: 200V class (200–230 VAC)
- Servo configuration: 3-axis
- Spindle configuration: 1-axis integrated spindle
- Maximum spindle class: 160A
- Servo class: 80A per axis
- Cooling: Forced ventilation
Compatible Motors
Compatible with Mitsubishi:
- HG-series servo motors
- SJ-series spindle motors
Typical Applications
- CNC machining centers
- Turning centers
- Milling machines
- Precision production equipment
- Robotics and automated motion systems
