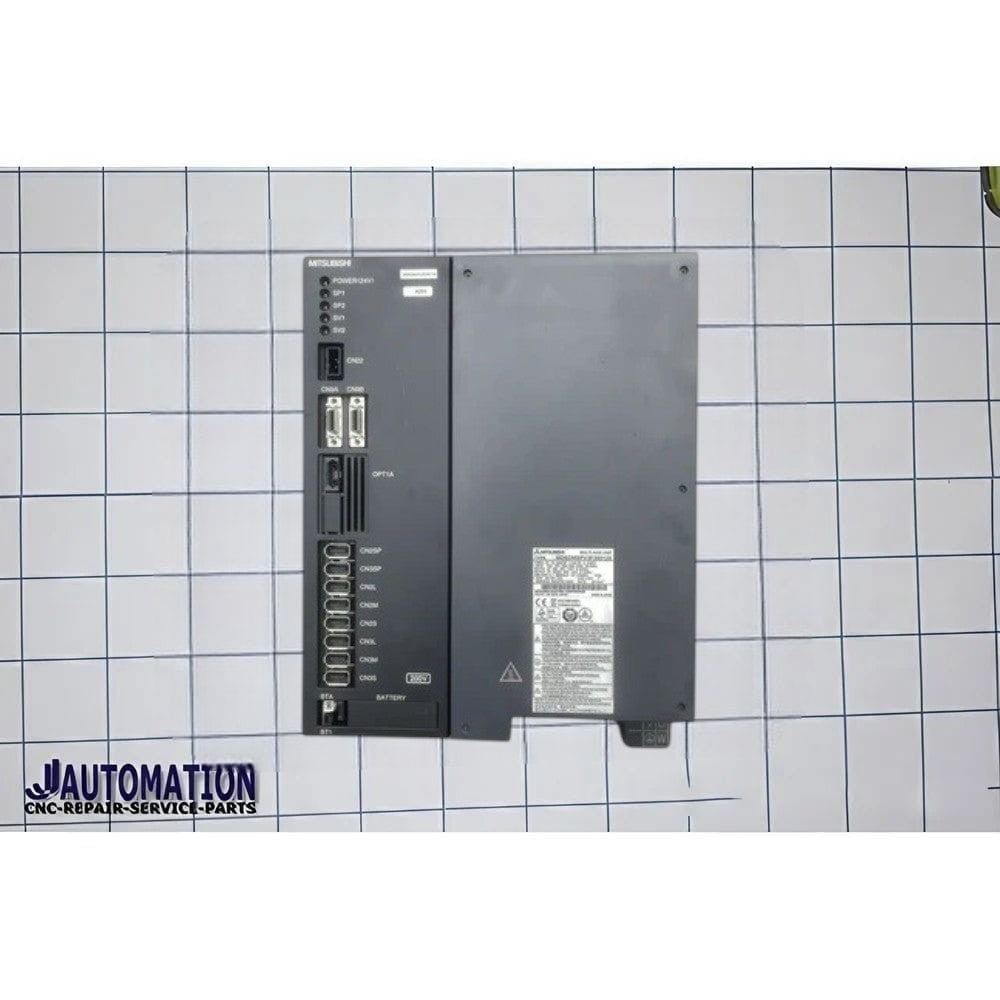

Mitsubishi Electric multi-axis hybrid servo/spindle drive amplifier used in advanced CNC machine tools and industrial automation systems.
Product Description
- Manufacturer: Mitsubishi Electric
- Series: MDS-EM Series
- Model: MDS-EM-SPV3-200120
- Type: Multi-axis hybrid AC servo/spindle drive unit
- Application: CNC machining centers, turning centers, milling machines, and synchronized motion-control systems.
Main Function
This drive unit integrates:
- 3 servo axes
- 1 spindle axis
- shared converter/power circuitry
into a single compact CNC drive module for Mitsubishi CNC systems.
Model Code Meaning
MDS-EM-SPV3-200120
- MDS = Mitsubishi Drive System
- EM = Energy-efficient multi-drive series
- SPV3 = 3-axis servo + spindle hybrid type
-
200120 = output/current class:
- 200A spindle class
- 3 × 120A servo class
Key Features
- 3-phase 200–230 VAC operation
- Integrated spindle and servo motor control
- Compact cabinet-mount architecture
- Built-in dynamic braking/regenerative control
- High-speed CNC motion processing
- Forced-air cooling
- Designed for Mitsubishi M70/M700 CNC platforms
- Supports high-performance synchronized motion control
Technical Information
Typical specifications include:
- Input voltage: 200–230 VAC, 3-phase
- Input current: approx. 65A
- Spindle output: 49A, 0–833Hz
- Servo output: 3-axis configuration
- Cooling: Forced ventilation
- Protection: Earth fault detection, collision detection, fan-stop monitoring, safety observation functions
Compatible Motors
Compatible with Mitsubishi:
- HG-series servo motors
- SJ-series spindle motors
Typical Applications
- CNC machining centers
- High-speed milling machines
- Turning centers
- Precision automation equipment
- Robotics and coordinated motion systems
