Description

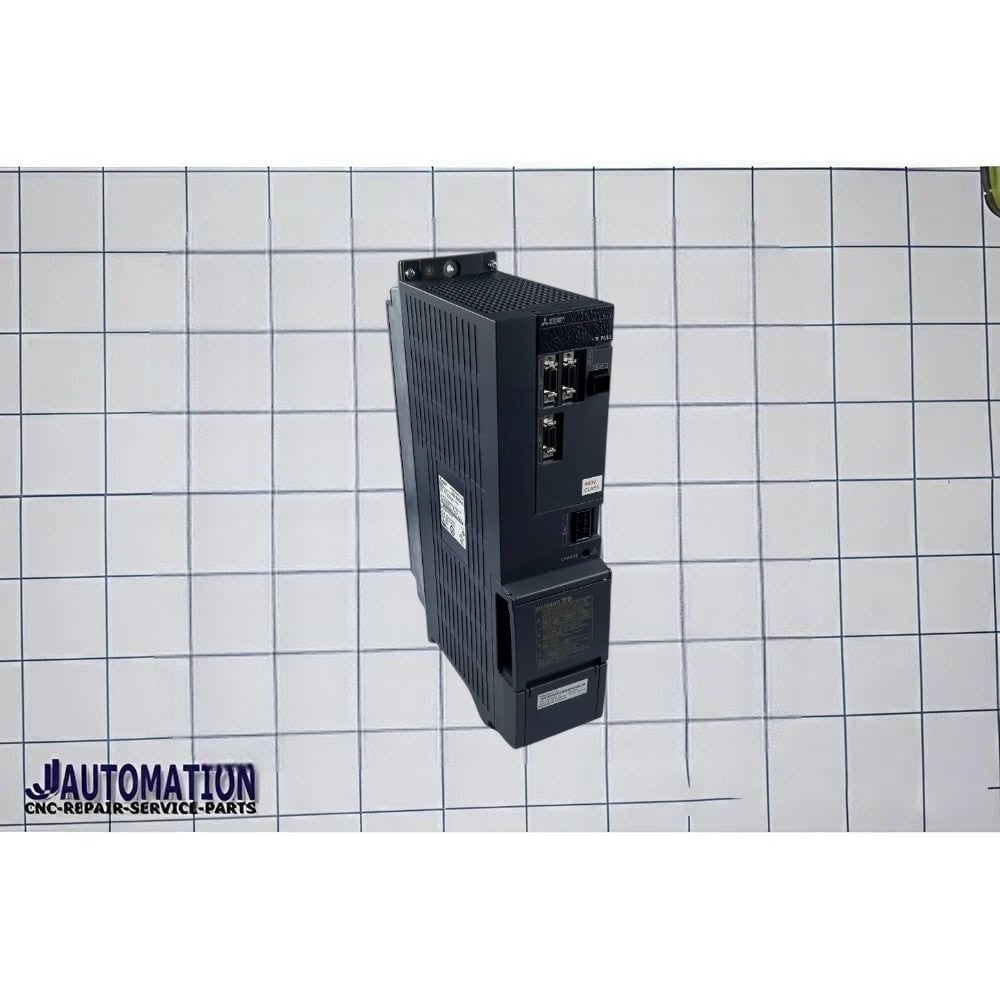

The Mitsubishi MDS-E-CV-37 is a power supply / converter unit from Mitsubishi Electric’s MDS-E CNC drive system, used in CNC machine tools to provide DC power to spindle and servo drive units.
It is not a motor or spindle drive, but the main converter section of the CNC drive system.
Key Specifications (MDS-E-CV-37)
| Specification | Value |
|---|---|
| Series | MDS-E Series |
| Type | Power Supply / Converter Unit |
| System Role | Main DC power supply for CNC drives |
| Rated Power Capacity | 3.7 kW (converter rating class) |
| Input Voltage | 3-phase 200–230 V AC |
| Output Voltage | ~270–311 V DC |
| Rated Input Current | ~16 A |
| Cooling Method | Forced air cooling |
| Mounting | Cabinet-mounted unit |
| System Compatibility | MDS-E servo + spindle drive system |
| Function | DC bus generation for drives |
📌 Source: Mitsubishi Electric MDS-E/EH Series specification manual (CV unit classification and ratings)
Features
- Acts as the main DC power supply for CNC servo and spindle drives
- Supplies stable DC link voltage (~300V DC) to all drive modules
- Integrated protection and monitoring functions
- Supports coordinated operation with MDS-E spindle (SP/SP2) and servo amplifiers
- Forced-air cooling for continuous industrial operation
- Designed for Mitsubishi MELDAS CNC systems
Role in CNC System
In an MDS-E system, the CV unit works like this:
AC Input → MDS-E-CV-37 → DC Bus → SP/SP2 spindle drives + servo drives
So it is the central power backbone of the CNC machine drive cabinet.
Typical Applications
- CNC machining centers
- CNC turning centers
- Multi-axis CNC systems
- Industrial automation machines
- Full Mitsubishi MELDAS drive systems
