Description

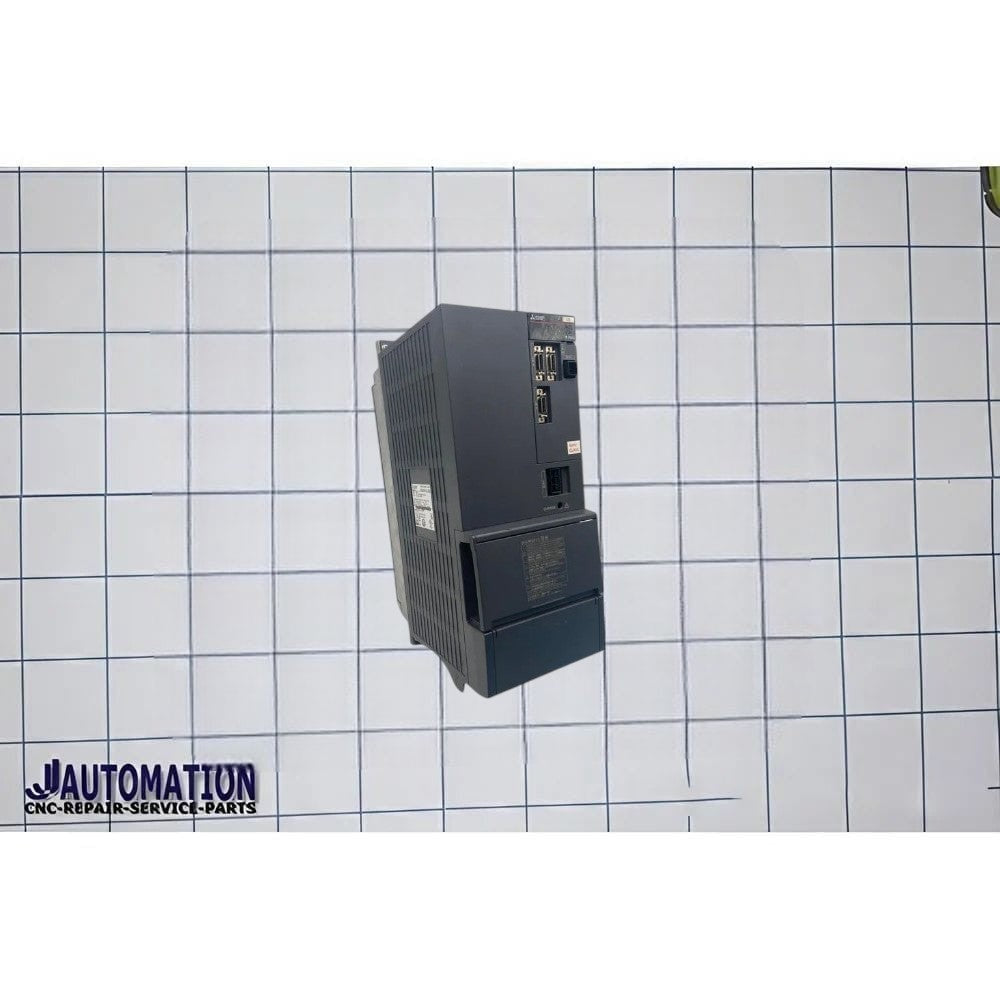

MDS-EH-CV-37 is a Mitsubishi Electric MDS-EH series servo drive / power supply unit used in CNC and industrial automation systems. It belongs to the MDS-EH-CV series for AC servo/spindle drive systems.
Description
- Manufacturer: Mitsubishi Electric
- Series: MDS-EH
- Model: MDS-EH-CV-37
- Type: Power Supply Unit / Servo Drive Converter
- Application: CNC machine tools, spindle drives, industrial automation systems
- Voltage Class: 400V series
Main Functions
The unit provides:
- 3-phase AC power input
- DC converter output for servo/spindle amplifiers
- Communication connections for servo/spindle systems
- Emergency stop interface
- External contactor control
- Grounding and control power terminals
Typical Terminal/Connector Features
- TE1: 3-phase AC power input (L1, L2, L3)
- TE2: DC converter output (L+, L-)
- TE3: Control power input
- CN4/CN9: Servo/spindle communication connectors
- CN24: Emergency stop input
- PE: Ground terminal
