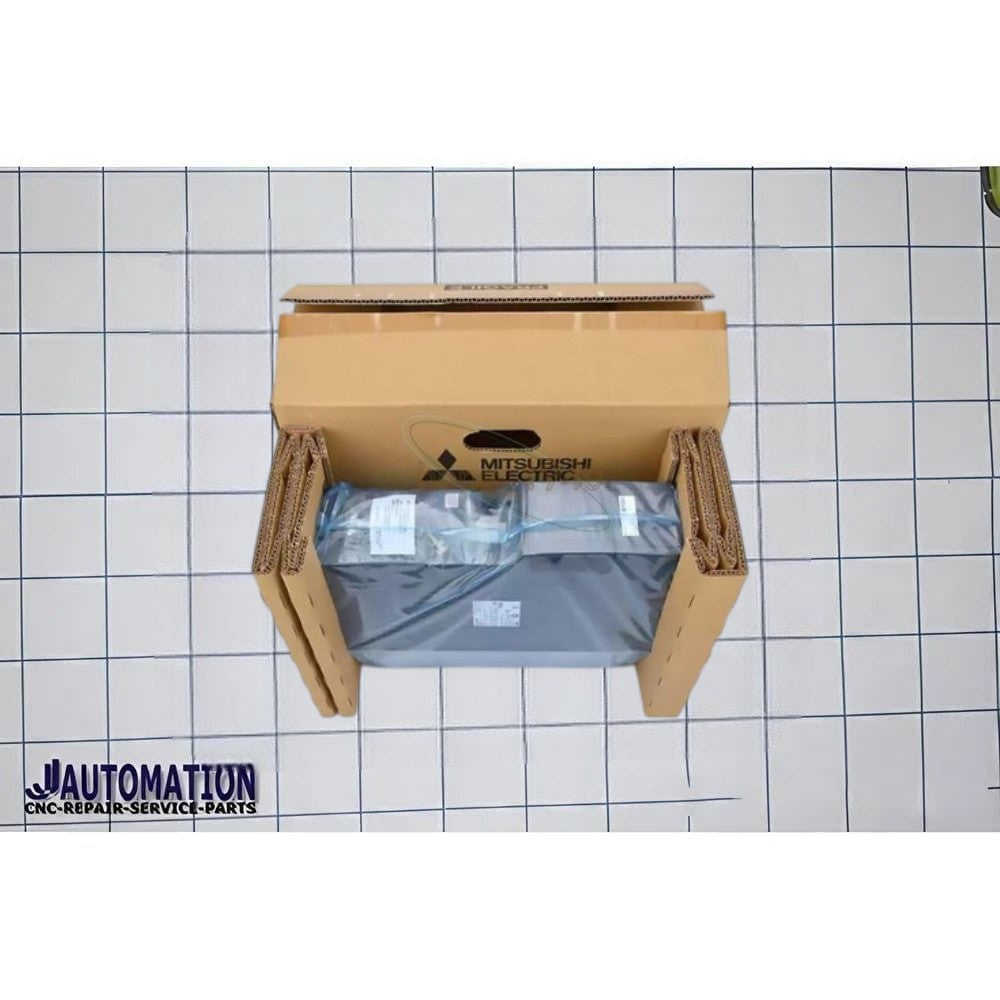

Mitsubishi M80 Power Supply MDS-EH-CV-75

MDS‑EH‑CV‑75 is a Mitsubishi Electric MDS-EH series power supply / converter unit used in CNC servo and spindle drive systems for industrial machine tools.

Description

• Manufacturer: Mitsubishi Electric
• Series: MDS-EH Series
• Model: MDS-EH-CV-75
• Type: Servo/Spindle Drive Power Supply Unit (Converter)
• Voltage Class: 400V class
• Application: CNC machines, machining centers, industrial automation systems

Main Features

• Supplies DC power to Mitsubishi servo and spindle amplifiers
• Supports high-speed/high-accuracy CNC control
• Designed for MELDAS CNC systems
• Integrated converter architecture for compact cabinet installation
• Compatible with regenerative servo systems

Typical Specifications

• Rated Capacity: 7.5 kW class
• Series Type: High-performance servo/spindle drive unit
• Cooling: Forced air cooling
• Input: 3-phase AC power
• Output: DC bus power for spindle/servo drives

Common Connections

• AC input terminals (R/L1, S/L2, T/L3)
• DC output terminals (P, N)
• Control power supply terminals
• Emergency stop interface
• Servo/spindle communication connectors

Typical Use

Installed inside:

• CNC lathes
• Milling machines
• Machining centers
• Automatic production machinery
