Description

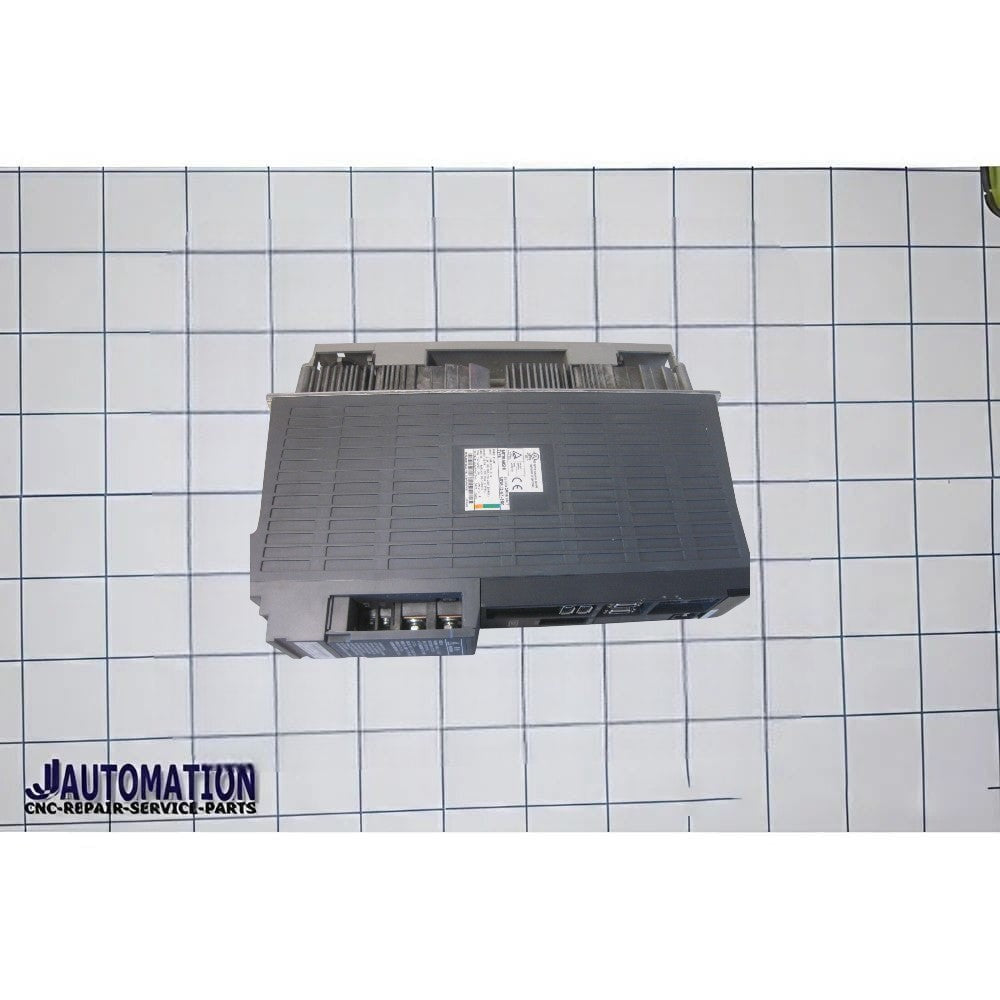

MDS-E-V1-160 is a high-capacity Mitsubishi Electric MDS-E series single-axis AC servo drive/amplifier used in CNC machine tools and industrial automation systems requiring high-power servo control.
Description
- Manufacturer: Mitsubishi Electric
- Series: MDS-E
- Model: MDS-E-V1-160
- Type: 1-axis AC servo drive unit
- Current Class: 160A peak class
- Application: CNC machining centers, heavy-duty lathes, industrial motion systems
- Control Method: Sine-wave PWM servo control
- Protection Rating: IP20
- Cooling: Forced air cooling
Main Specifications
- Nominal maximum current (peak): 160A
- Rated output current: 33A
- Rated output voltage: 170VAC
- Input voltage: 270–324VDC
- Input current: 30A
- Control power supply: 200–240VAC, 50/60Hz
- Dynamic braking: Built-in regenerative and dynamic brake system
- Analog outputs: 0 to +5V, 2 channels
- Heat dissipation: Approx. 184W
- Weight: Approx. 3.8–4.5 kg depending on configuration
Features
- High-response servo control
- High-precision positioning and speed regulation
- Encoder feedback closed-loop operation
- Compact cabinet mounting design
- Compatible with Mitsubishi CNC and MELDAS systems
- Supports large servo motors for heavy machine loads
Typical Applications
- CNC machining centers
- Heavy-duty milling machines
- Turning centers
- Industrial robotics
- Precision automated production equipment
