Description

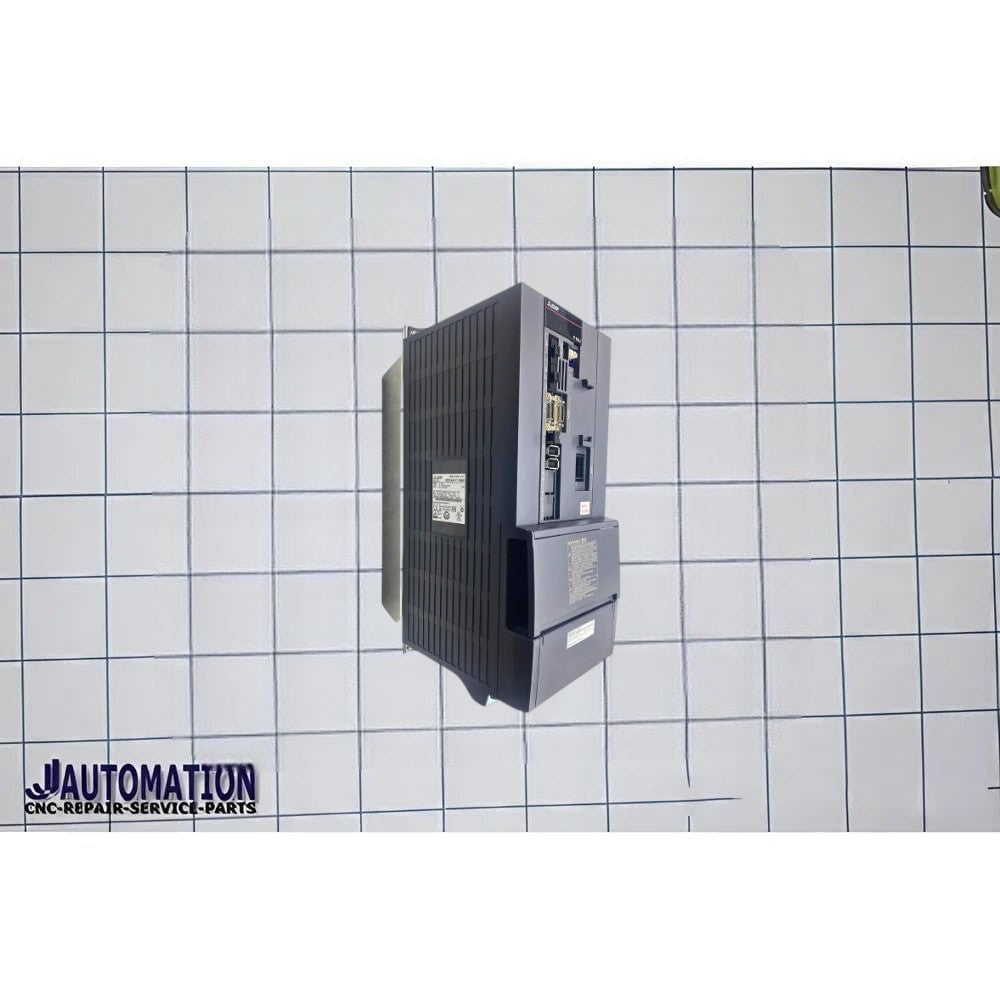

MDS-E-V1-160W is a high-capacity Mitsubishi Electric MDS-E series single-axis AC servo drive/amplifier designed for heavy-duty CNC machine tools and industrial automation systems requiring higher continuous current capability than the standard 160 model.
Description
- Manufacturer: Mitsubishi Electric
- Series: MDS-E
- Model: MDS-E-V1-160W
- Type: 1-axis AC servo drive unit
- Application: CNC machining centers, large lathes, milling machines, industrial automation
- Current Class: 160A peak class
- “W” Version: Wide/high-capacity output version with increased rated current
Main Specifications
- Nominal maximum current (peak): 160A
- Rated output current: 42A
- Rated output voltage: 170VAC
- Input voltage: 270–324VDC
- Input current: 35A
- Control power supply: 200–240VAC, 50/60Hz
- Control method: Sine-wave PWM control
- Cooling: Forced air cooling
- Protection class: IP20
- Mass: Approx. 4.5 kg
- Heat dissipation: Approx. 245W
- Dynamic braking: Regenerative braking and dynamic brake support
Features
- High-response servo control
- High-precision position and speed regulation
- Encoder feedback closed-loop control
- Supports large-capacity servo motors
- Built for continuous heavy-load CNC applications
- Compatible with Mitsubishi CNC/MELDAS systems
Typical Applications
- Heavy CNC machining centers
- Large turning centers
- Industrial robotics
- High-torque feed axis systems
- Precision automated machinery
Difference Between 160 and 160W
| Model | Rated Output Current |
|---|---|
| MDS-E-V1-160 | 33A |
| MDS-E-V1-160W | 42A |
