Description

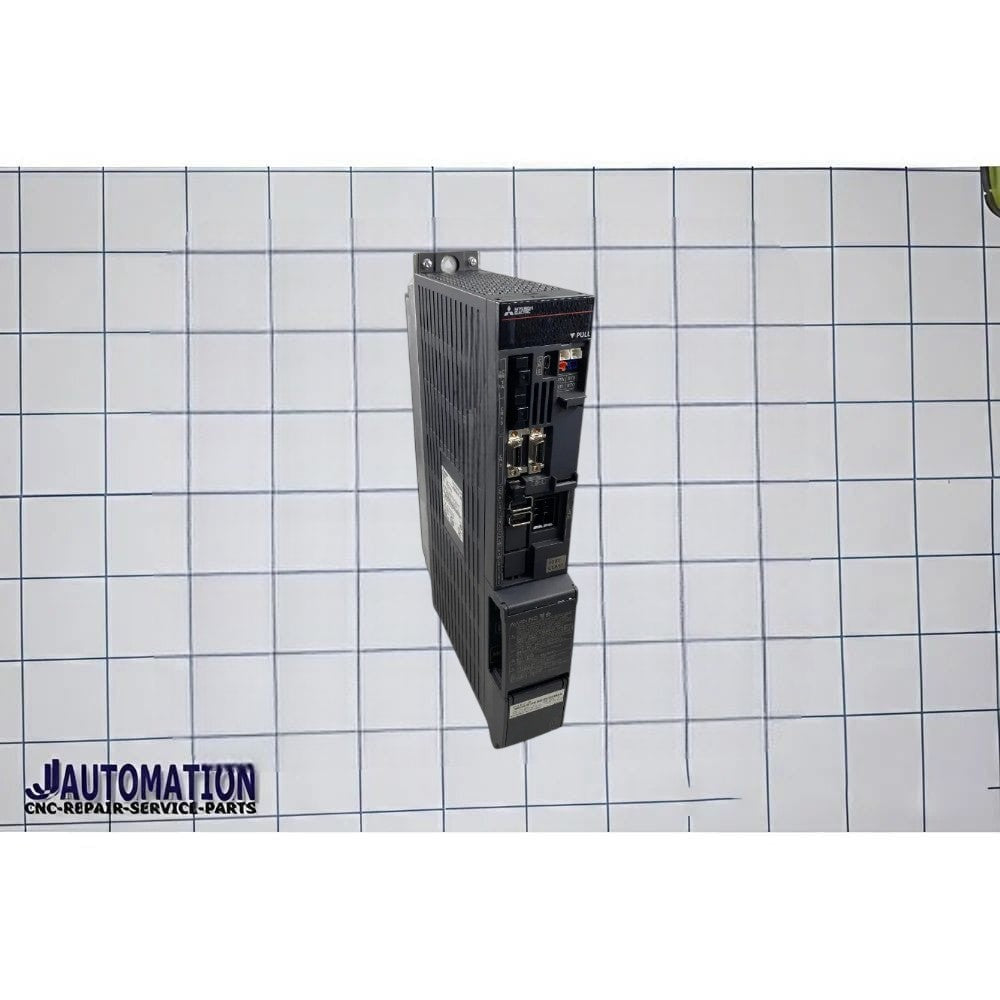

MDS-E-V1-20 is a Mitsubishi Electric MDS-E series 1-axis AC servo drive/amplifier used in CNC machine tools and industrial automation systems. It is designed to control servo motors for precise motion control applications.
Main Description
- Series: MDS-E (200V series)
- Type: 1-axis servo drive unit
- Manufacturer: Mitsubishi Electric
- Application: CNC machines, machining centers, lathes, industrial automation
- Rated current: Approximately 20A nominal class / around 6.4A rated output current depending on configuration
- Input power: 3-phase AC 200–230V
- Protection: IP20
- Cooling: Natural cooling
-
Functions:
- High-gain servo control
- Position and speed synchronization
- Dynamic braking
- Encoder feedback support
- Full closed-loop control
- CNC communication interface
Typical Features
- Compact CNC servo amplifier
- Built-in dynamic brake
- Compatible with Mitsubishi CNC systems
- Used with Mitsubishi servo motors in machining equipment
- Supports high-precision positioning and motion control
Common Uses
This drive is commonly installed in:
- CNC machining centers
- Milling machines
- Turning centers
- Automated production equipment
