Description

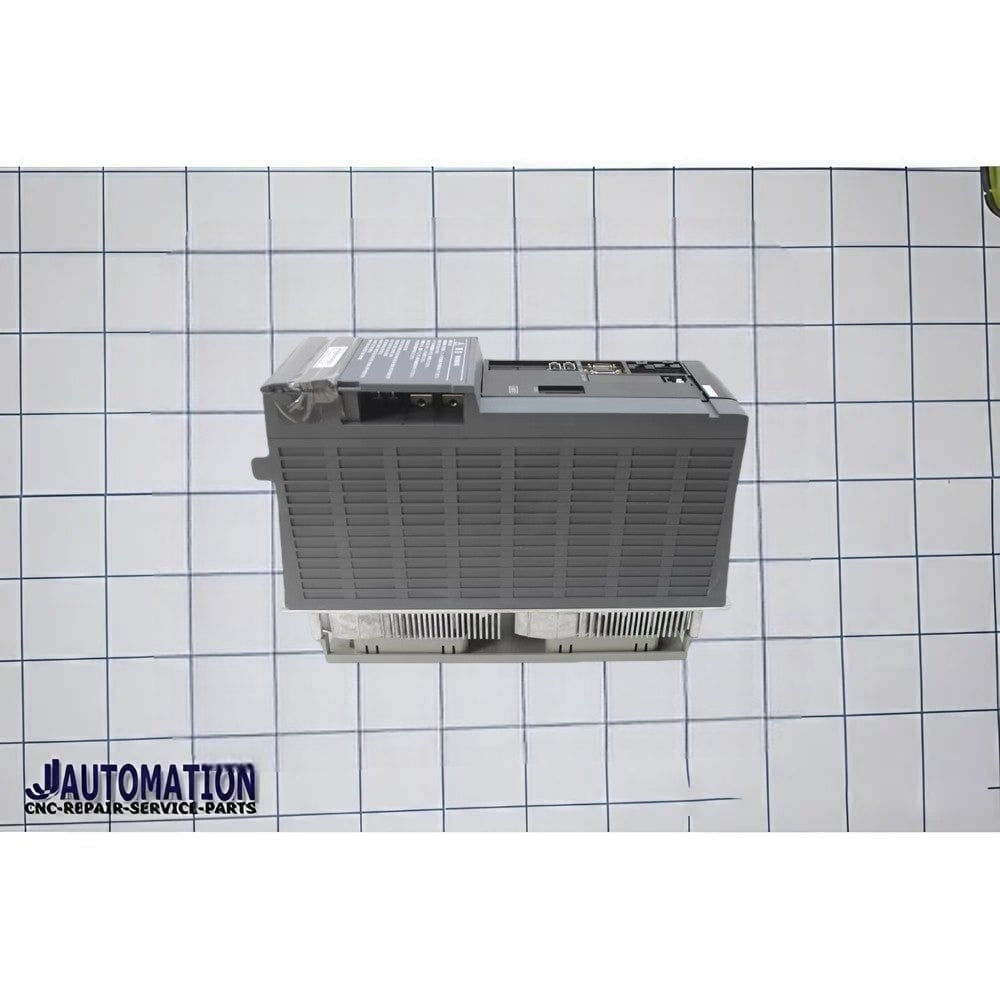

DS-E-V1-320 is a high-power Mitsubishi Electric MDS-E series single-axis AC servo drive/amplifier designed for large CNC machine tools and heavy industrial automation applications requiring very high servo output capacity.
Description
- Manufacturer: Mitsubishi Electric
- Series: MDS-E
- Model: MDS-E-V1-320
- Type: 1-axis AC servo drive unit
- Application: Heavy CNC machining centers, large lathes, gantry machines, industrial automation
- Current Class: 320A peak class
- Control Method: Sine-wave PWM servo control
- Cooling: Forced air cooling
- Protection Rating: IP20
Main Specifications
- Nominal maximum current (peak): 320A
- Rated output current: Approximately 65A
- Power input voltage: 270–324VDC
- Input current: 45A
- Control power supply: 200–240VAC, 50/60Hz
- Dynamic brake: Built-in dynamic braking
- Encoder feedback: Full closed-loop compatible
- Weight: Approx. 7.5 kg
- Cabinet width: Approx. 120 mm
Features
- High-torque servo motor control
- High-precision positioning and speed regulation
- High-response CNC servo performance
- Encoder feedback closed-loop operation
- Compact panel-mount industrial design
- Compatible with Mitsubishi CNC/MELDAS systems
- Designed for continuous heavy-load industrial operation
Typical Applications
- Large CNC machining centers
- Heavy-duty milling machines
- Gantry machining systems
- Industrial robotics
- Precision automated production equipment
- High-load feed axis systems
Related Models
- MDS-E-V1-20
- MDS-E-V1-40
- MDS-E-V1-80
- MDS-E-V1-160
- MDS-E-V1-160W
- MDS-E-V1-320W
Difference Between 320 and 320W
| Model | Peak Current | Input Current | Dynamic Brake |
|---|---|---|---|
| MDS-E-V1-320 | 320A | 45A | Built-in |
| MDS-E-V1-320W | 320A | 55A | External MDS-D-DBU required |
