Description

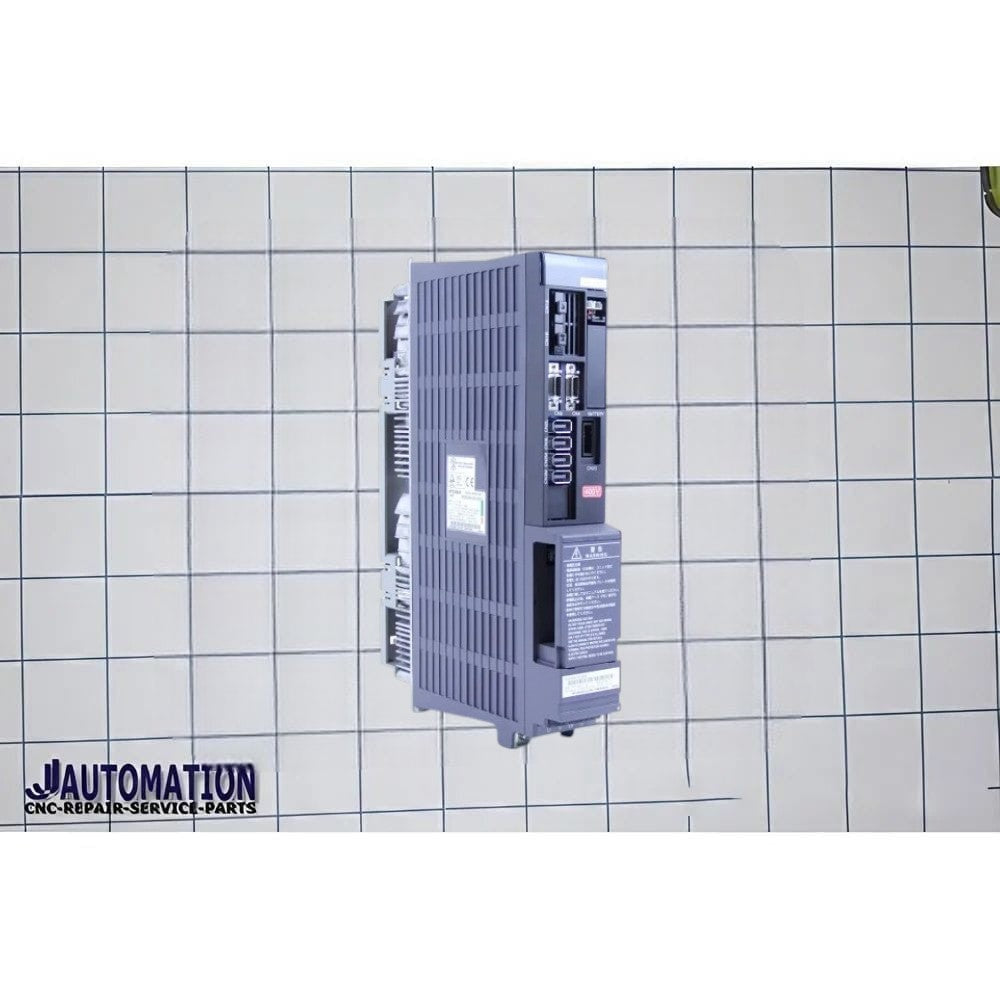

MDS-E-V1-40 is a Mitsubishi Electric MDS-E series AC servo drive/amplifier designed for CNC machine tools and industrial automation systems.
Description
- Manufacturer: Mitsubishi Electric
- Series: MDS-E
- Model: V1-40
- Type: Single-axis AC servo amplifier
- Current Class: 40A
- Input Voltage: 3-phase AC 200–230V
- Cooling: Forced air cooling
- Protection: IP20
- Control Method: Sine-wave PWM current control
- Feedback: Encoder/closed-loop servo control
- Application: CNC machining centers, lathes, milling machines, automated production systems
Main Features
- High-precision position and speed control
- Built-in dynamic braking circuit
- Full closed-loop motion control
- High response servo performance
- Compact industrial design
- Compatible with Mitsubishi CNC systems and HG servo motors
Typical Specifications
- Nominal Current: Approximately 10.9A
- Maximum Output Current: 40A
- Dimensions: Approx. 380 × 60 × 260 mm
- Mounting: Panel mounted inside CNC electrical cabinet
Common Applications
- CNC machining centers
- Mazak/MELDAS systems
- Industrial robotics
- Precision motion control equipment
