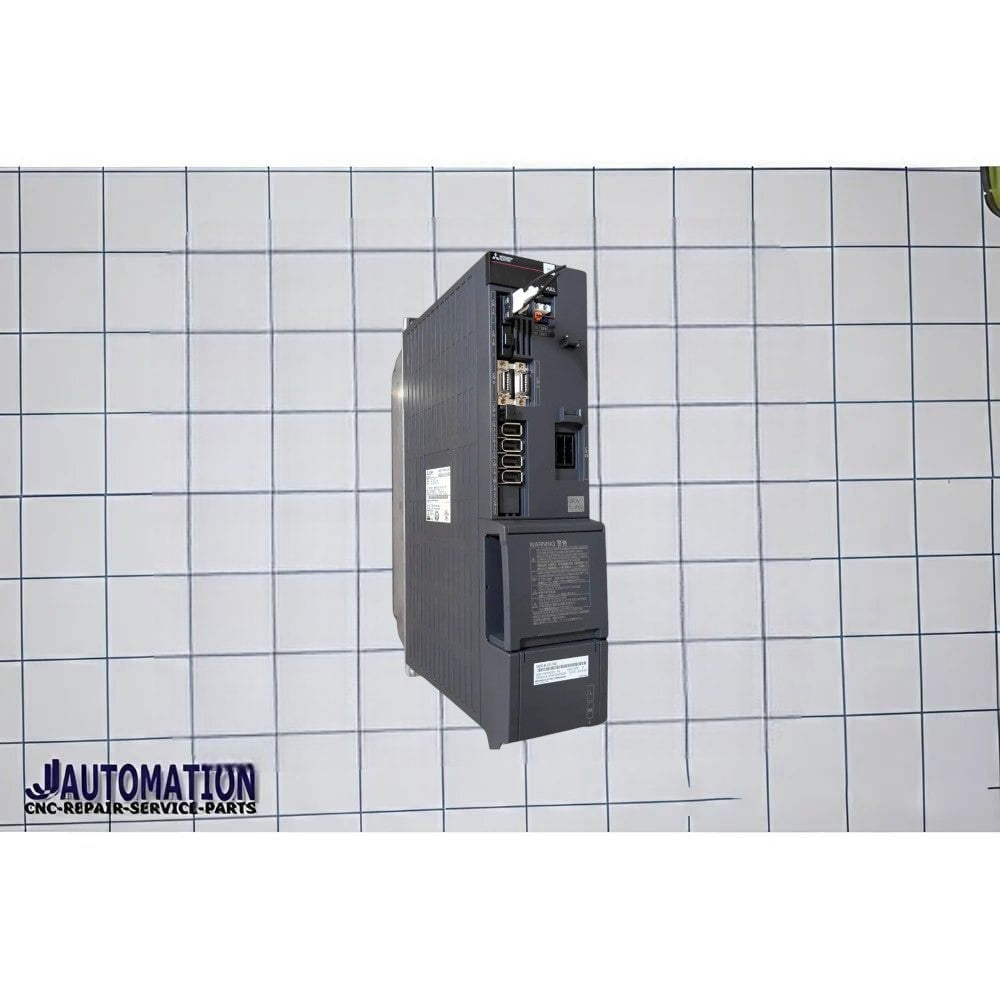

Mitsubishi M80 Servo Drive MDS-E-V2-160

The Mitsubishi MDS-E-V2-160 is a high-capacity 2-axis AC servo drive/amplifier from the MDS-E series manufactured by Mitsubishi Electric.

Description

• Product type: Dual-axis CNC servo drive unit
• Series: MDS-E
• Model: MDS-E-V2-160
• Application: CNC machining centers, milling machines, lathes, robotics, and industrial motion-control systems
• Control method: Sine-wave PWM control
• Cooling system: Forced-air cooling
• Protection class: IP20 (excluding terminal block)
• Dynamic brake: Built-in
• Encoder compatibility: Machine-end encoder supported

Main Specifications

• Axis configuration: 2-axis servo amplifier
• Nominal maximum current (peak): 160A / 160A
• Main power input: 270–324V DC
• Rated input current: 60A
• Control power supply: 200–240V AC, 50/60Hz
• Control power current: Max. 0.6A
• Weight: Approx. 5.2 kg
• Cooling type: Forced-air ventilation

Features

• High-speed, high-precision servo response
• Compact integrated dual-axis design
• Built for continuous industrial-duty CNC operation
• Compatible with Mitsubishi CNC platforms such as M70/M700 series
• Supports high-power servo motor applications

Common Industrial Uses

• CNC machining centers
• Heavy-duty milling machines
• Precision positioning systems
• Automated manufacturing equipment
• Industrial robotics

References

• Mitsubishi CNC drive catalog PDF
• MDS-E-V2-160 product listing
• MDS-E/EH specifications manual
