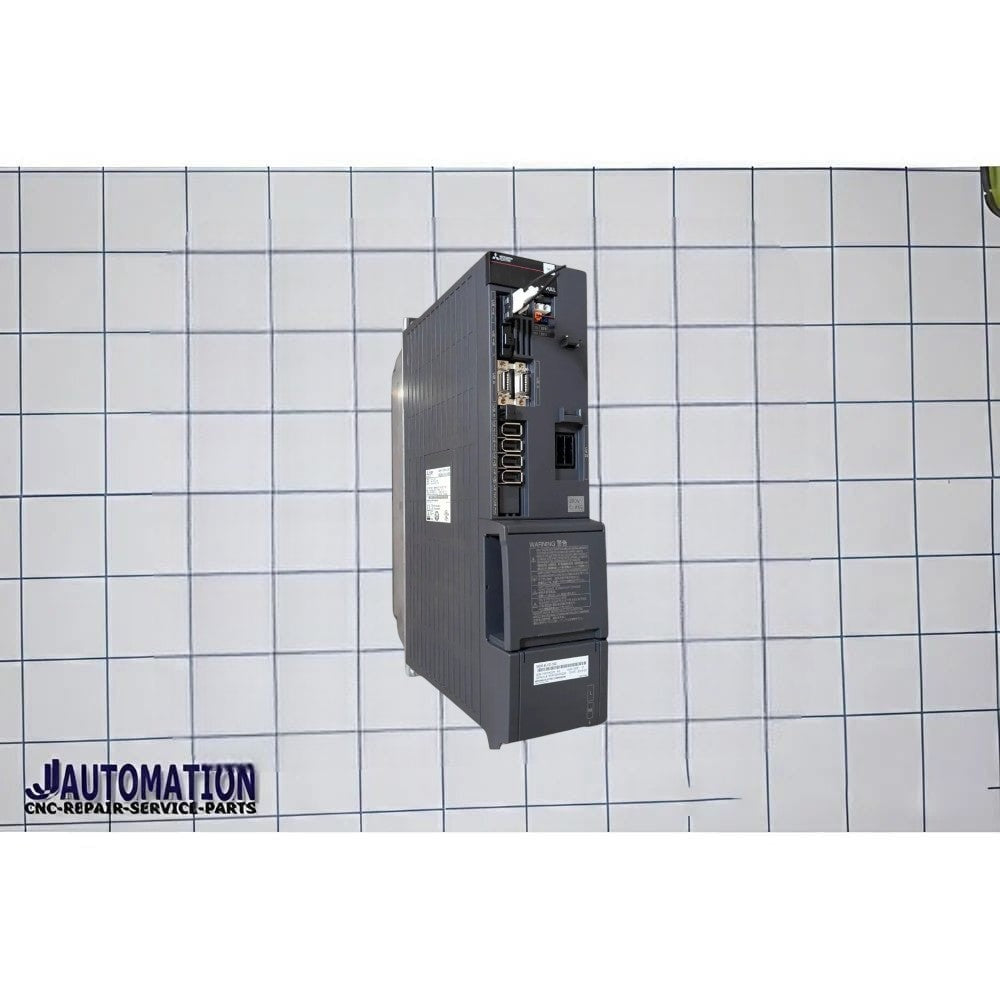

Mitsubishi M80 Servo Drive MDS-E-V2-160W

The Mitsubishi MDS-E-V2-160W is a heavy-duty 2-axis CNC AC servo drive/amplifier from the MDS-E series manufactured by Mitsubishi Electric.

Description

• Product type: Dual-axis AC servo drive unit
• Series: MDS-E
• Model: MDS-E-V2-160W
• Application: High-power CNC machine tools, machining centers, industrial automation, robotics, and precision motion systems
• Control method: Sine-wave PWM control
• Cooling system: Forced-air cooling
• Protection class: IP20 (excluding terminal block)
• Dynamic brake: Built-in
• Encoder support: Machine-end encoder compatible

Main Specifications

• Axis configuration: 2-axis servo amplifier
• Nominal maximum current (peak): 160A / 160A
• Main power input: 270–324V DC
• Rated input current: 70A
• Control power supply: 200–240V AC, 50/60Hz
• Cooling: Forced-air type
• Weight: Approx. 6.3 kg
• Unit size class: “W” wide-body version for higher-capacity thermal handling

Features

• High-speed, high-precision servo response
• Heavy-duty dual-axis design
• Optimized for large servo motor applications
• Compatible with Mitsubishi CNC platforms such as M70/M700 series
• Industrial continuous-duty operation
• Enhanced heat dissipation compared with standard MDS-E-V2-160 models

Typical Applications

• Large CNC machining centers
• Heavy milling machines
• Gantry systems
• Industrial robotics
• High-load positioning systems
• Automated manufacturing lines
