Description

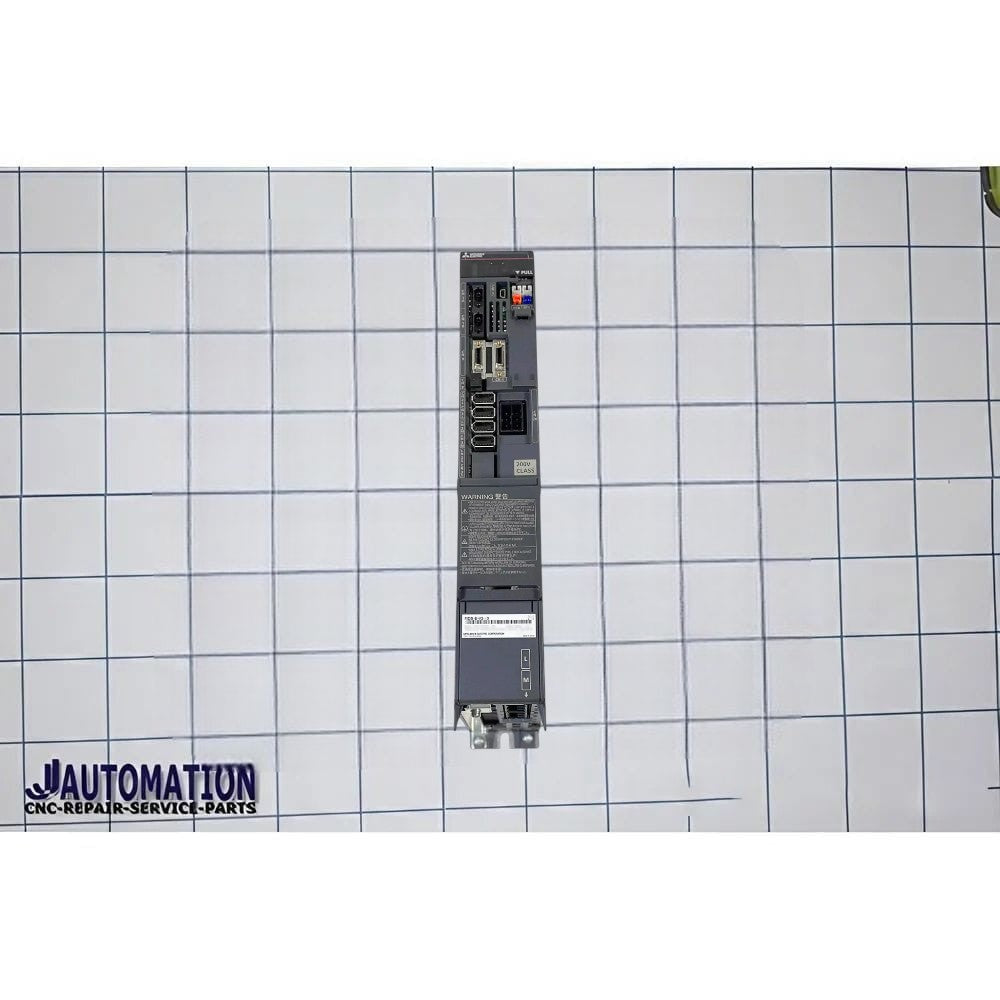

Mitsubishi MDS-E-V2-20 is a 2-axis AC servo drive/amplifier from the MDS-E series used in CNC machine tools and industrial automation systems.
Description
- Type: CNC servo drive / servo amplifier
- Series: MDS-E
- Manufacturer: Mitsubishi Electric
- Configuration: Dual-axis (2-axis) servo drive
- Application: Controls Mitsubishi CNC servo motors in machining centers, lathes, and automated equipment
- Control method: Sine-wave PWM control
- Cooling: Forced-air cooling
- Protection rating: IP20
- Dynamic brake: Built-in
- Compatible motor series: HG series servo motors
Main Specifications
- Input voltage: 200–230V AC, 3-phase
- Rated current: 6.4A
- Peak current class: 20A / 20A
- Control power input: 200–240V AC, 50/60Hz
- Operating temperature: 0°C to 55°C
- Weight: Approx. 4.5 kg
Typical Uses
- CNC machining centers
- Milling machines
- Industrial robotics
- Precision positioning systems
- Mitsubishi CNC motion-control applications
