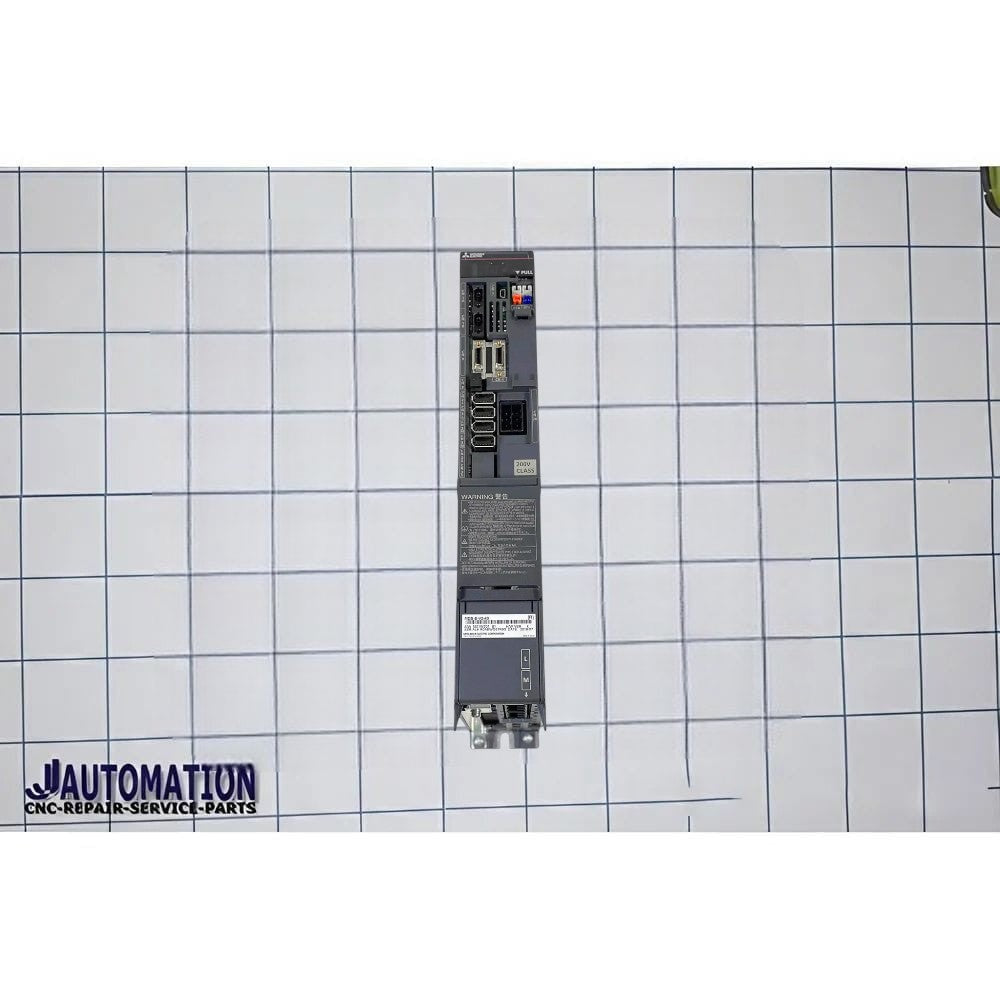

Mitsubishi M80 Servo Drive MDS-E-V2-40

The Mitsubishi MDS-E-V2-40 is a 2-axis CNC AC servo drive/amplifier from the MDS-E series by Mitsubishi Electric, designed for high-performance CNC machine tools and industrial motion-control systems.

Description

• Product type: 2-axis servo drive unit
• Series: MDS-E
• Model: MDS-E-V2-40
• Application: CNC machining centers, lathes, milling machines, robotics, and positioning systems
• Control method: Sine-wave PWM current control
• Cooling method: Forced-air cooling
• Protection class: IP20
• Dynamic brake: Built-in
• Encoder compatibility: Machine-end encoder compatible

Main Specifications

• Nominal maximum current (peak): 40A / 40A
• Input power voltage: 270–324V DC
• Control power supply: 200–240V AC, 50/60Hz
• Rated current: Approx. 14A
• Weight: Approx. 4.5 kg
• Configuration: Dual-axis servo amplifier

Features

• High-speed and high-precision servo control
• Compact dual-axis integrated design
• Supports Mitsubishi CNC servo motor systems
• Built for industrial continuous-duty operation
• Commonly used with Mitsubishi M70/M700 CNC platforms
