Description

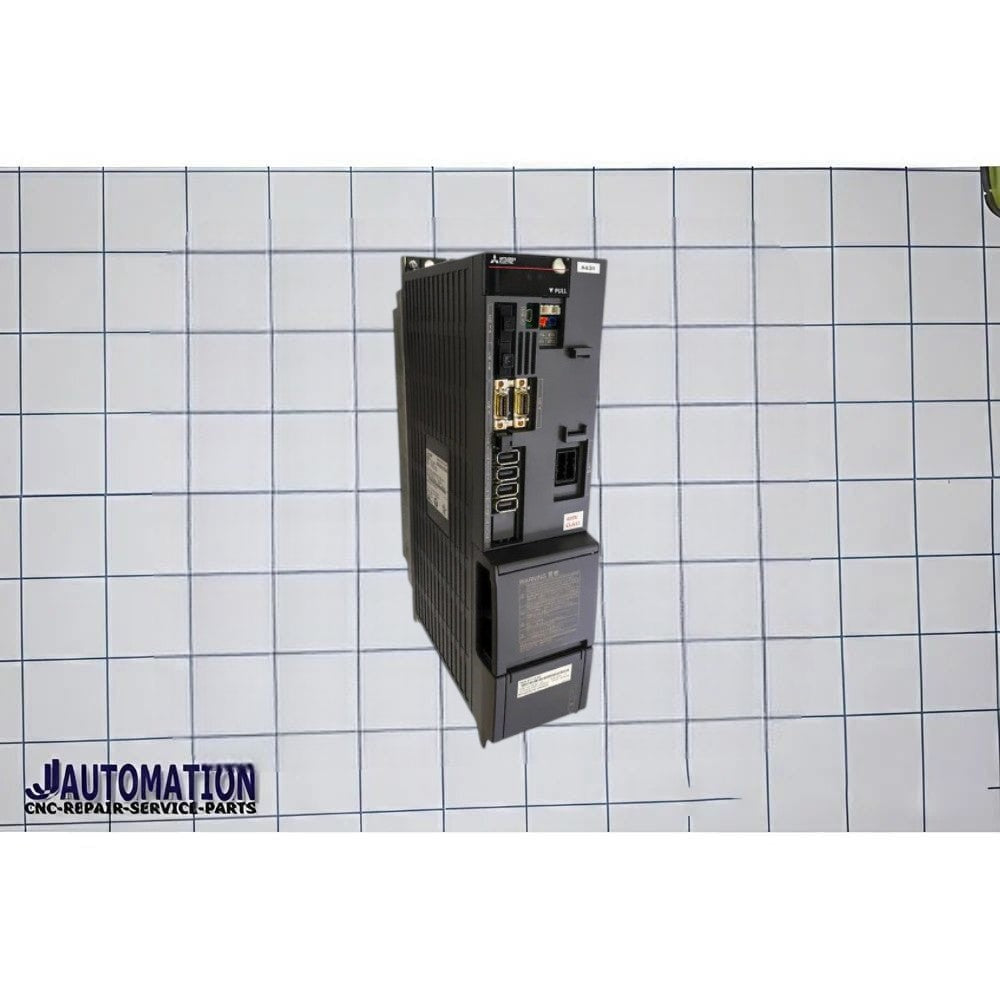

The Mitsubishi MDS-E-V2-80 is a high-performance 2-axis CNC AC servo drive/amplifier from the MDS-E series manufactured by Mitsubishi Electric.
Description
- Product type: Dual-axis AC servo drive unit
- Series: MDS-E
- Model: MDS-E-V2-80
- Application: CNC machining centers, lathes, milling systems, robotics, and industrial motion control
- Control method: Sine-wave PWM servo control
- Cooling method: Forced-air cooling
- Protection class: IP20 (excluding terminal block)
- Dynamic braking: Built-in
- Encoder support: Machine-end encoder compatible
Main Specifications
- Axis configuration: 2-axis servo amplifier
- Nominal maximum current (peak): 80A / 80A
- Main power input: 270–324V DC
- Rated input current: 28A
- Control power supply: 200–240V AC, 50/60Hz
- Weight: Approx. 4.6 kg
- Cooling: Forced-air type
Features
- High-speed, high-precision servo response
- Compact integrated dual-axis design
- Designed for Mitsubishi CNC systems
- Suitable for continuous industrial-duty applications
- Commonly paired with Mitsubishi M70/M700 CNC controllers
