Description

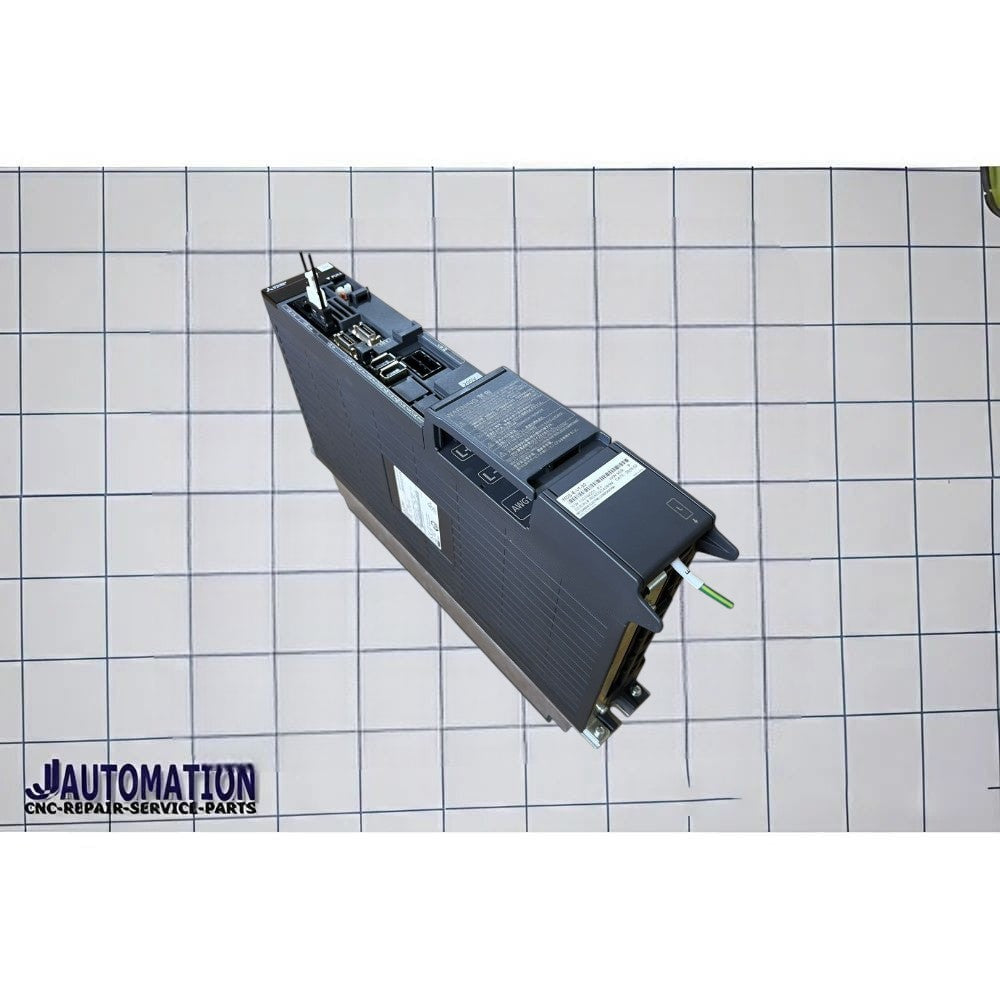

The Mitsubishi MDS-E-V3-20 is a 3-axis CNC AC servo drive/amplifier from the MDS-E series manufactured by Mitsubishi Electric.
Description
- Product type: 3-axis AC servo drive unit
- Series: MDS-E
- Model: MDS-E-V3-20
- Application: CNC machining centers, milling machines, lathes, robotics, and industrial automation systems
- Axis configuration: Triple-axis integrated servo amplifier
- Control method: Sine-wave PWM control
- Braking: Regenerative braking with built-in dynamic brake
- Cooling system: Forced-air cooling
- Protection class: IP20 (excluding terminal block)
- External analog monitor output: 0 to +5V, 2 channels
Main Specifications
- Nominal maximum current (peak): 20A / 20A / 20A
- Rated output voltage: 170V AC
- Rated output current: 6.4A / 6.4A / 6.4A
- Main power input: 270–324V DC
- Input current: 21A
- Control power supply: 200–240V AC, 50/60Hz
- Maximum control current: 0.6A
- Earth leakage current: approx. 6mA
- Weight: Approx. 4.3 kg
- Heat radiation at rated output: 131W
Features
- Compact integrated 3-axis design
- High-speed, high-precision servo response
- Compatible with Mitsubishi HG-series servo motors
- Designed for Mitsubishi CNC systems such as M70/M700 platforms
- Supports machine-end encoder systems
- Industrial continuous-duty operation
