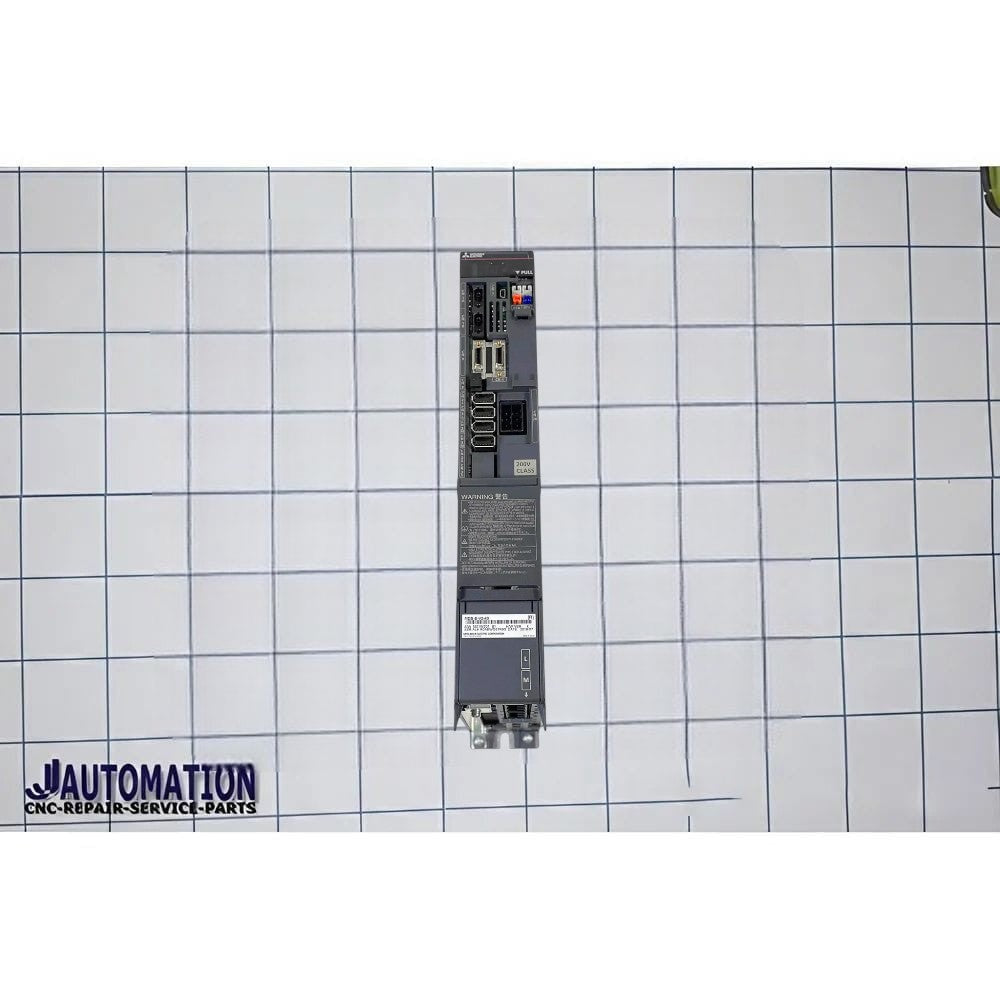

Mitsubishi M80 Servo Drive MDS-E-V3-40

The Mitsubishi MDS-E-V3-40 is a 3-axis CNC AC servo drive/amplifier from the MDS-E series manufactured by Mitsubishi Electric.

Description

• Product type: 3-axis integrated AC servo drive unit
• Series: MDS-E
• Model: MDS-E-V3-40
• Application: CNC machining centers, milling machines, lathes, robotics, and industrial automation systems
• Axis configuration: Triple-axis servo amplifier (L/M/S axes)
• Control method: Sine-wave PWM control
• Braking system: Regenerative braking with built-in dynamic brake
• Cooling method: Forced-air cooling
• Protection rating: IP20 (excluding terminal block)
• Analog monitor output: 0 to +5V, 2 channels for adjustment/monitoring

Main Specifications

• Nominal maximum current (peak): 40A / 40A / 40A
• Rated output voltage: 170V AC
• Rated output current: 10.9A / 10.9A / 10.9A
• Main power input: 270–324V DC
• Input current: 21A
• Control power supply: 200–240V AC, 50/60Hz
• Maximum control current: 0.6A
• Earth leakage current: approx. 6mA
• Heat radiation at rated output: 225W
• Weight: Approx. 4.3 kg

Features

• Compact integrated 3-axis design
• High-speed and high-precision servo response
• Compatible with Mitsubishi HG-series servo motors
• Built for Mitsubishi CNC systems including M70/M700 platforms
• Supports machine-end encoder systems
• Continuous industrial-duty operation

Compatible Servo Motors

Common compatible HG-series motors include:

• HG54
• HG104
• HG154
• HG123
• HG223
• HG142
• HG302

References

• MDS‑E/EH Specifications Manual PDF
• Mitsubishi CNC Specification Guide
• Manualzz MDS‑E‑V3 Series Reference
