Description

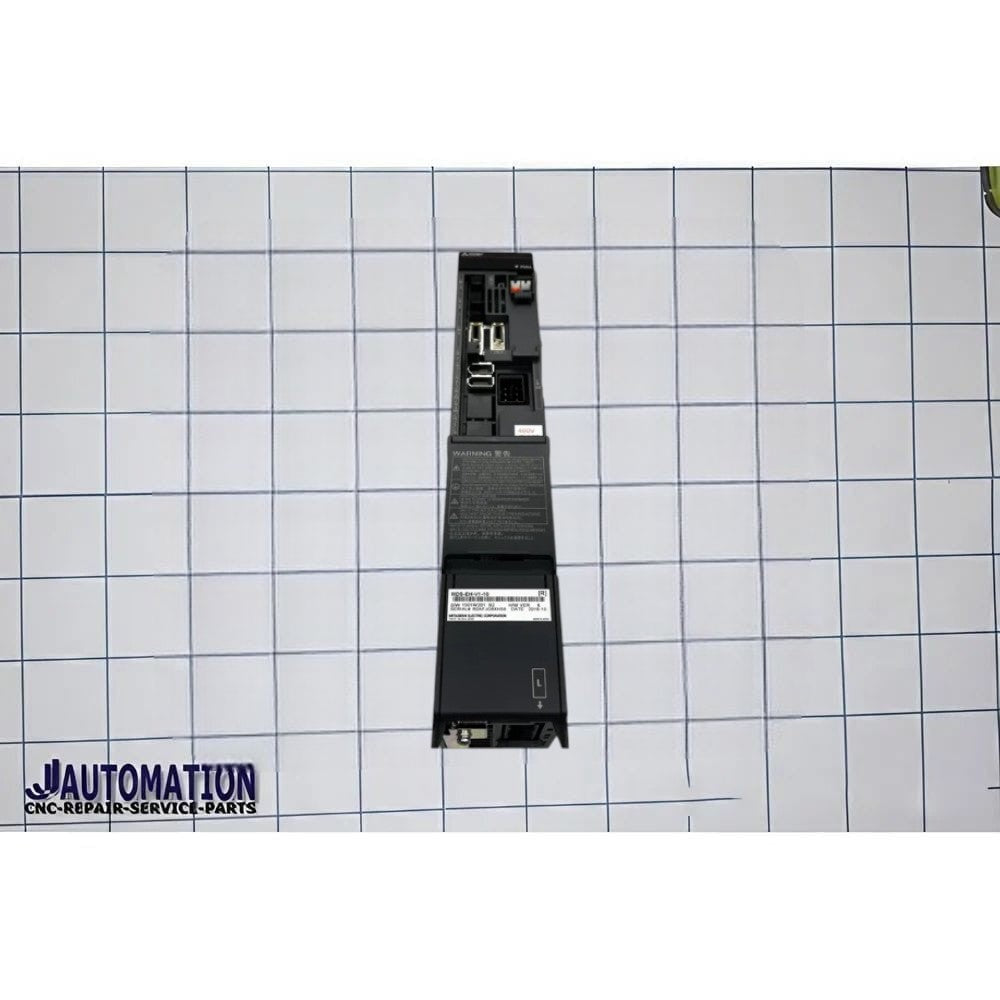

The Mitsubishi MDS-EH-V1-10 is a high-performance 1-axis AC servo drive/amplifier from the MDS-EH series manufactured by Mitsubishi Electric.
Description
- Product type: 1-axis CNC servo drive unit
- Series: MDS-EH
- Model: MDS-EH-V1-10
- Application: CNC machine tools, machining centers, lathes, robotics, and industrial automation systems
- Axis configuration: Single-axis servo amplifier
- Control method: Sine-wave PWM control
- Cooling system: Forced-air cooling
- Dynamic brake: Built-in
- Protection rating: IP20 (excluding terminal block)
- Designed for high-speed, high-precision servo control applications
Main Specifications
- Nominal maximum current (peak): 10A
- Main power input: 513–648V DC
- Rated input current: 0.9A
- Control power supply: 380–480V AC, 50/60Hz
- Control power current: Max. 0.1A
- Control type: Dedicated servo control processor
- Weight: Approx. 4.2 kg
Features
- High-speed response with high-accuracy positioning
- Compact industrial CNC drive design
- Compatible with Mitsubishi CNC systems and servo motors
- Enhanced optical communication and servo processing performance
- Suitable for continuous-duty industrial applications
Typical Applications
- CNC machining centers
- Precision milling machines
- Industrial robotics
- Positioning systems
- Automated production machinery
