Mitsubishi M80 Servo Drive MDS-EH-V1-40

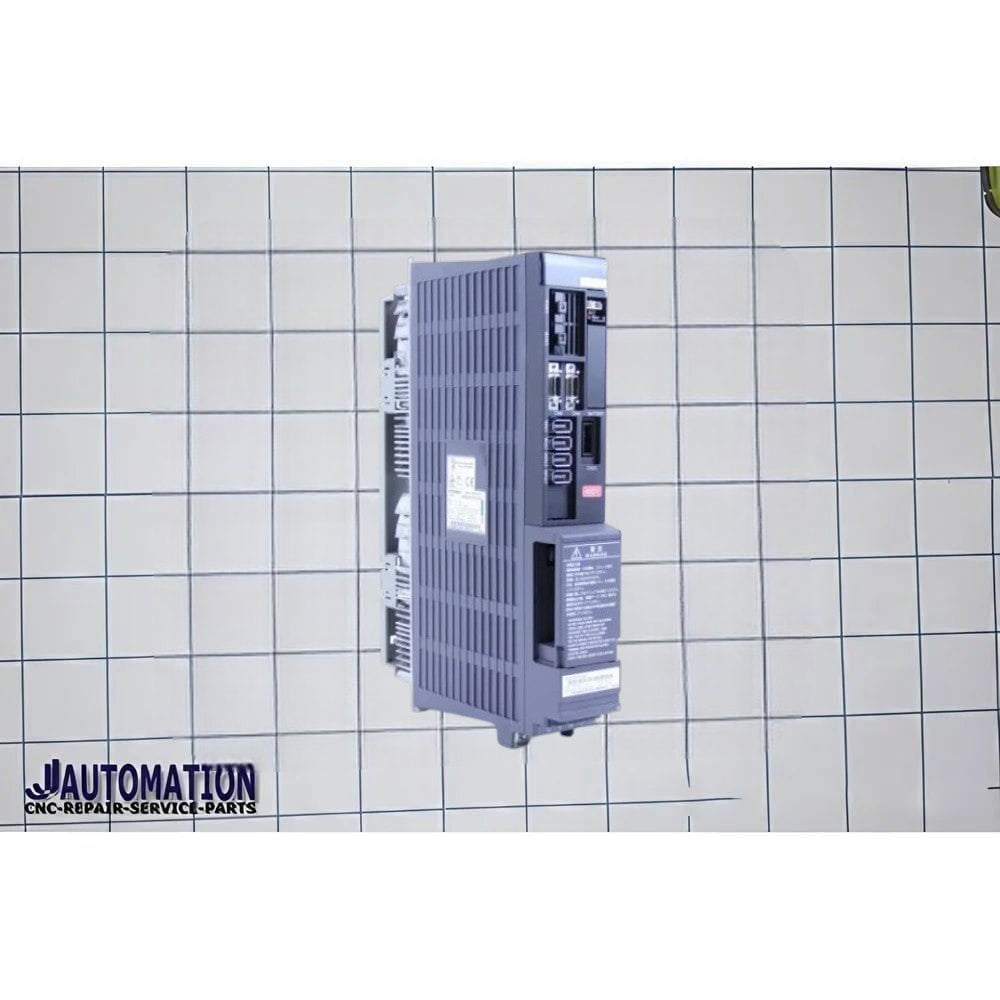

The Mitsubishi MDS-EH-V1-40 is a 1-axis AC servo drive (servo amplifier) from the MDS-EH series, designed for CNC machine tool motion control.

🔧 Description

• Product type: 1-axis CNC servo drive / servo amplifier
• Series: MDS-EH (high-performance CNC drive system)
• Model: MDS-EH-V1-40
• Manufacturer: Mitsubishi Electric
• Application: CNC machining centers, lathes, milling machines, robotics, and industrial automation
• Control method: Sine-wave PWM servo control
• System type: Fully closed-loop CNC servo system
• Cooling: Forced-air cooling
• Brake: Built-in dynamic braking
• Protection: IP20 (industrial cabinet mounting)

⚙️ Key Specifications

• Nominal current: 40A class servo drive
• Input power: DC bus (typically 513–648V DC)
• Control power: 380–480V AC, 50/60Hz
• Output: 3-phase controlled AC for servo motor drive
• Axis count: 1 axis
• Ambient temperature: typically up to ~55°C operating range
• Designed for high-response, high-precision CNC motion control

🏭 Typical Use

• CNC machining centers
• Precision lathes and milling machines
• Industrial robots
• High-speed positioning systems
• Mitsubishi CNC platforms (MELDAS/M70/M700 series)

🔩 Position in the Series

Within the MDS-EH V1 lineup:

• V1-10 → small capacity
• V1-20 → medium
• V1-40 → higher torque / mid-high capacity axis drive
• V1-80 / V1-160 → heavy-duty axes
