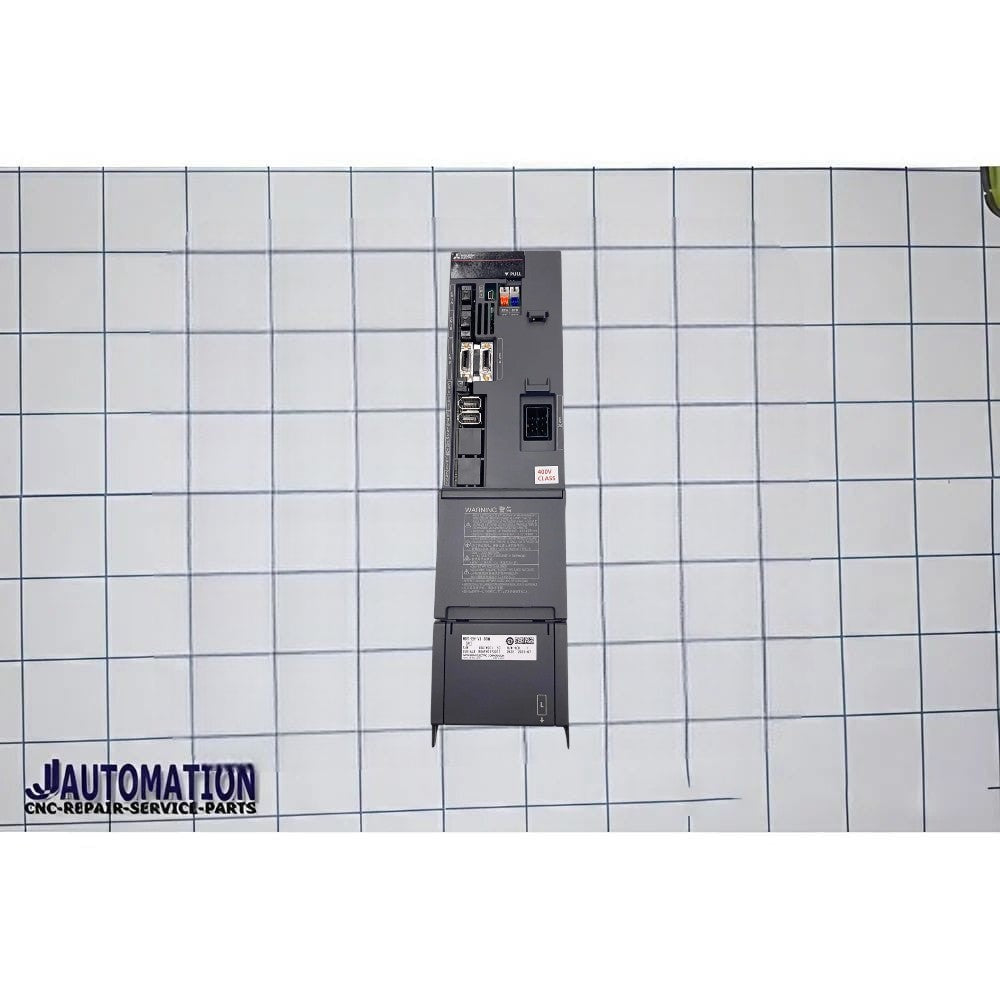

Mitsubishi M80 Servo Drive MDS-EH-V1-80

The Mitsubishi MDS-EH-V1-80 is a 1-axis high-capacity CNC AC servo drive (servo amplifier) from the MDS-EH series used in Mitsubishi CNC machine tool systems.

---

🔧 Description

• Product type: 1-axis servo drive / servo amplifier
• Series: MDS-EH
• Model: MDS-EH-V1-80
• Manufacturer: Mitsubishi Electric
• Application: CNC machining centers, lathes, milling machines, robotics, and industrial automation systems
• Control method: High-speed sine-wave PWM servo control
• System: High-voltage DC bus CNC drive system
• Cooling: Forced-air cooling (cabinet fan system)
• Protection: IP20 (cabinet mounted industrial drive)

---

⚙️ Key Specifications

• Nominal current class: 80A servo axis drive
• DC bus input: ~513–648V DC
• Control power supply: 380–480V AC, 50/60Hz
• Axis configuration: Single axis (V1 series)
• Motor control: Fully digital closed-loop servo control
• Encoder support: High-resolution CNC feedback encoders (Mitsubishi servo motors)
• Designed for high torque / heavy load axis control

(These values align with the MDS-EH V1 series 80A class specifications in Mitsubishi CNC drive documentation.)

---

🏭 Typical Applications

• Large CNC machining centers
• Heavy-duty axis drives (X/Y/Z or rotary axes)
• High-load milling and turning machines
• Industrial robotics requiring high torque
• Precision automation systems with high inertia loads

---

📌 Position in the Series

Within the MDS-EH V1 lineup:

• V1-10 → light duty axis
• V1-20 / V1-40 → medium duty
• V1-80 → high torque / heavy axis drive
• V1-160 / V1-200 → ultra heavy industrial axes

---

⚠️ Important Note

The MDS-EH-V1-80 is not a general-purpose servo drive. It is tightly integrated with:

• Mitsubishi CNC controllers (M70 / M700 / etc.)
• Mitsubishi servo motors
• Dedicated optical communication systems

So compatibility is system-based, not universal.
